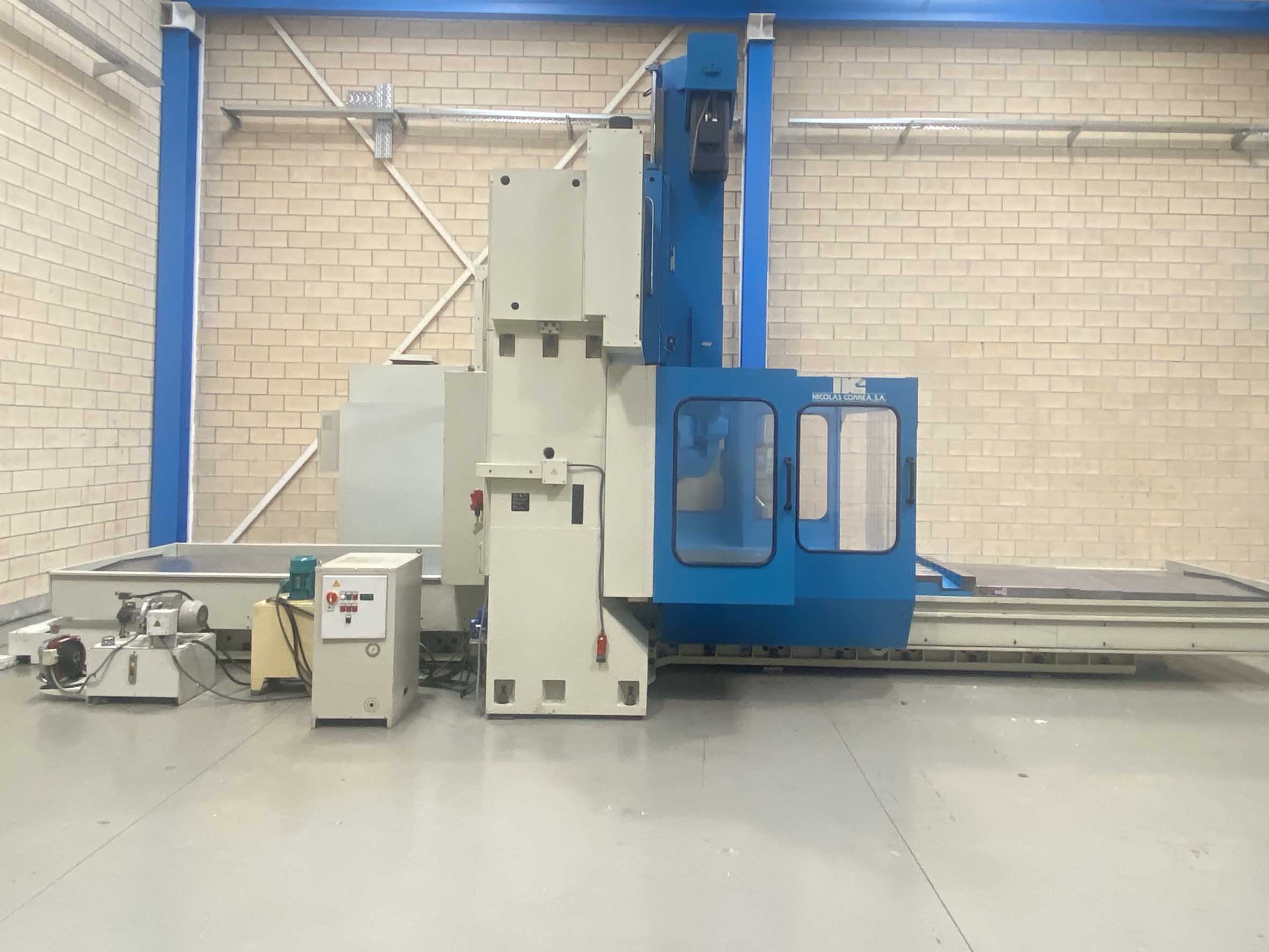

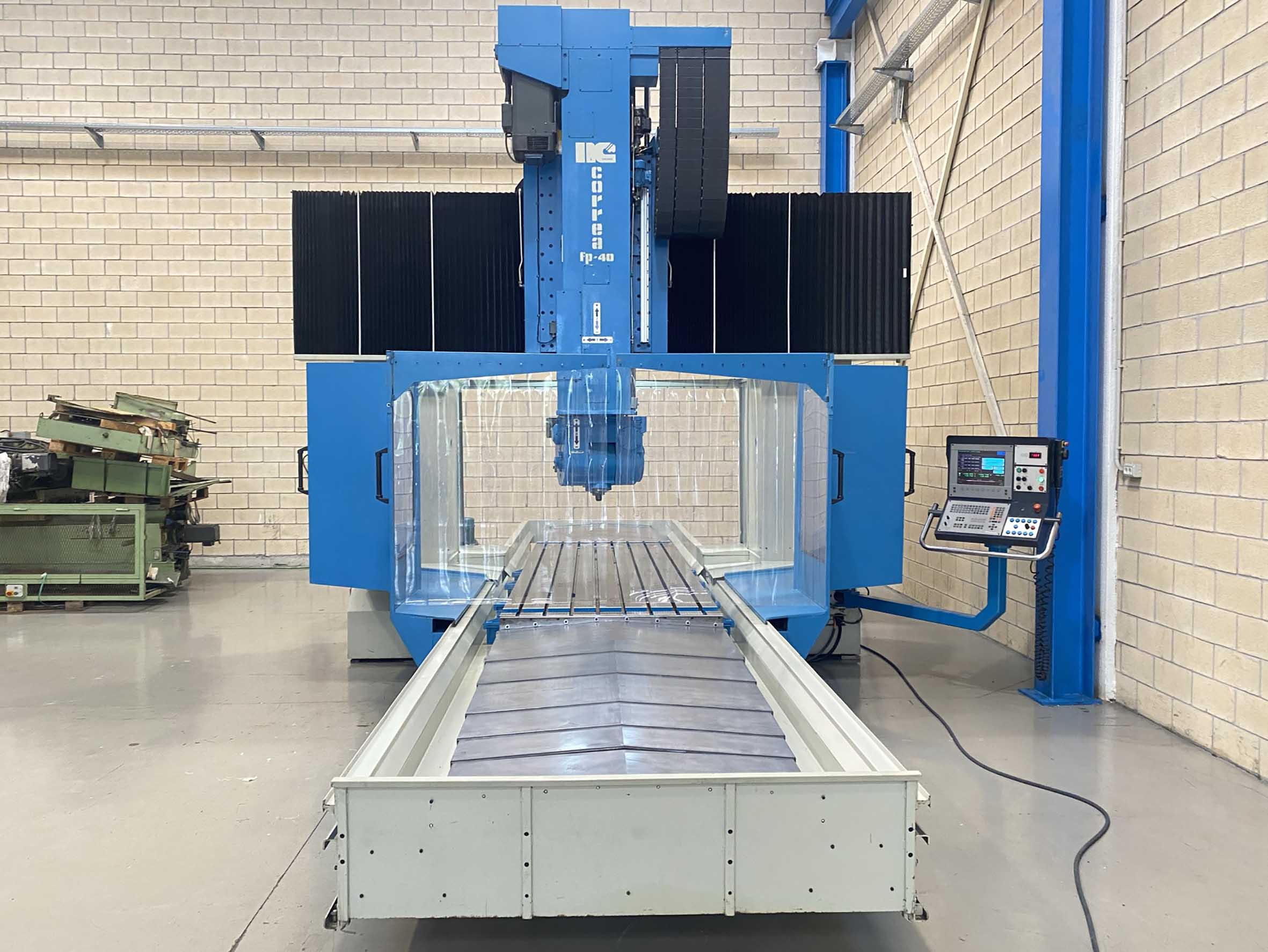

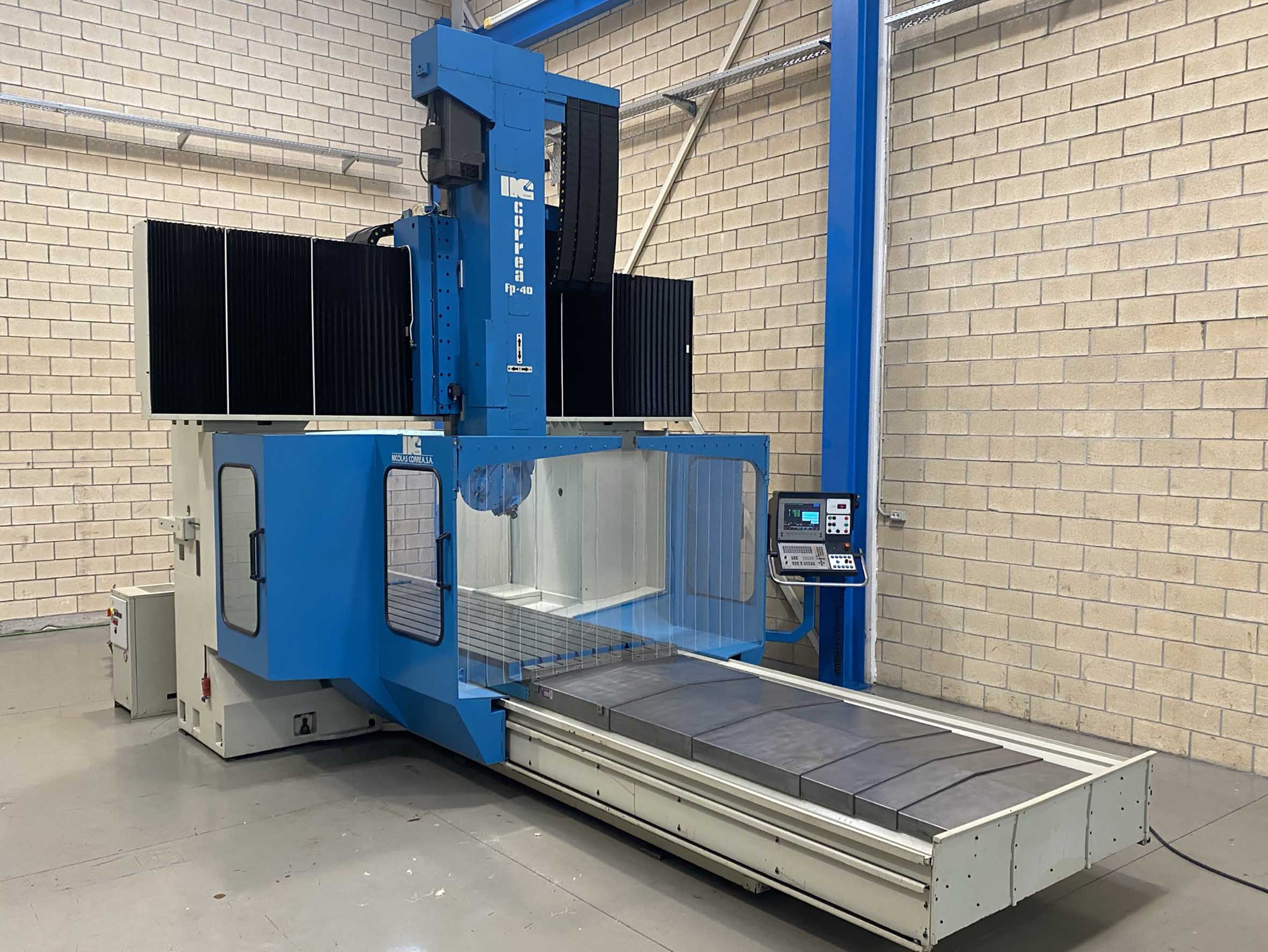

FP40/50 5 AXIS 1999
- Condition: used
- published: 06/10/2025
- 25IND30268
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Technical data
- Condition: used
- Year: 1999
Description
Manufacturer NICOLAS CORREA
Model FP 40/40 5 EJES
Year 1999
CNC HEIDENHAIN TNC-426 PB
Table Surface 4.100 x 1.250 mm
Max Weight Allowed on table 10.000 kg.
Longitudinal Travel (X Axis) 3.500 mm
...
Manufacturer NICOLAS CORREA
Model FP 40/40 5 EJES
Year 1999
CNC HEIDENHAIN TNC-426 PB
Table Surface 4.100 x 1.250 mm
Max Weight Allowed on table 10.000 kg.
Longitudinal Travel (X Axis) 3.500 mm
Cross Travel (Y Axis) 3.000 mm
Vertical Travel (Z axis) 1.000 mm
Distance Between Columns 2.540 mm
Distance from spindle nose to table 1.200 mm
Rapid Feed (X Axis) 15.000 mm/min
Rapid Feed (Y, Z Axis) 12.000 mm/min
Max. Working Feed 5.000 mm/min
Taper ISO-50
Speed Head 3.000 r.p.m.
Main Engine Power 30 kW

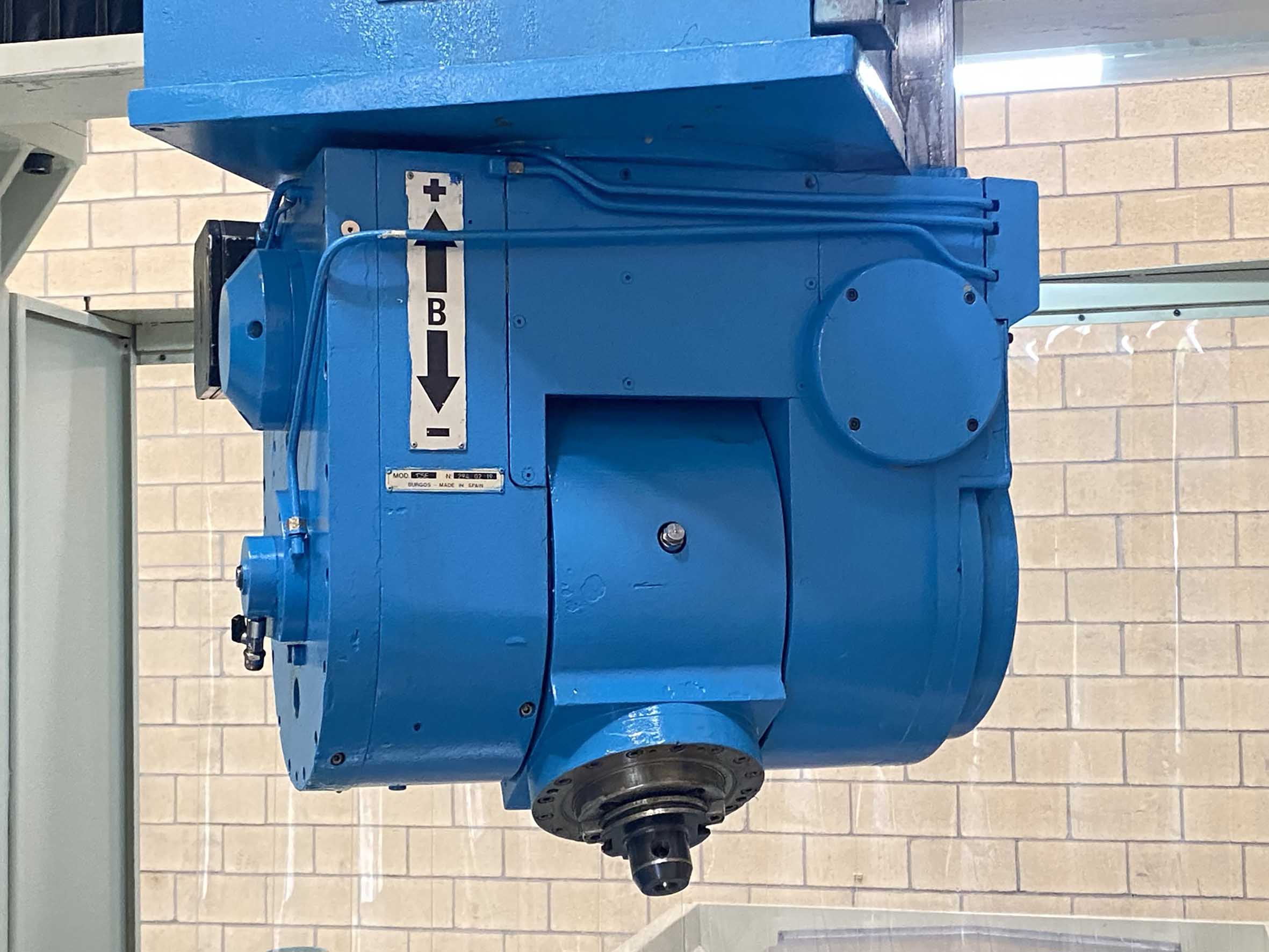

Automatic Head 4th and 5th Axis INCLUDED
Portable Handwheel INCLUDED
Machine Weight 30.500 kg.
More information https://www.maquinariacolas.com/en/machinery/correa-fp4040-5-axis/
