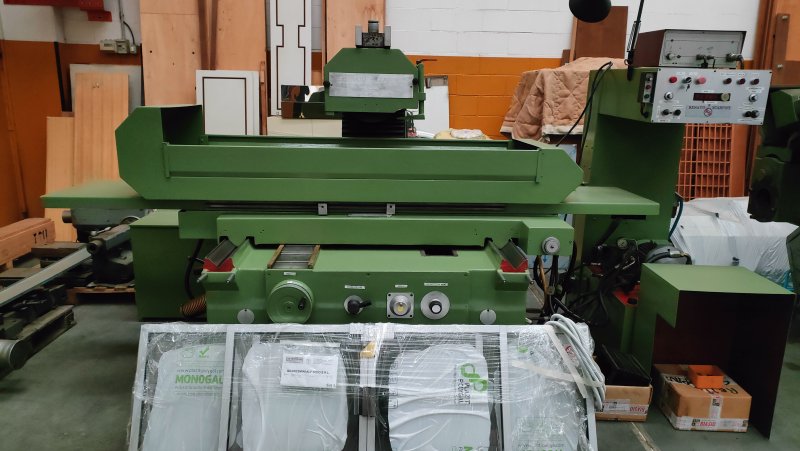

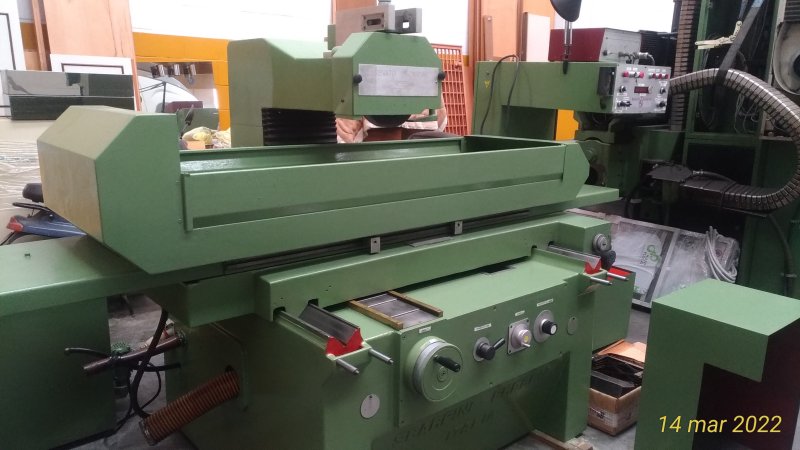

SCARPINI RENATO RS 1000
- Condition: used
- published: 06/10/2025
- 25IND31129
Technical data
- Condition: used
- Year: undefined
Description
Usable table surface area 1100x450 mm
Maximum transverse travel 560 mm
Maximum longitudinal travel 1050 mm
Maximum distance between table and spindle axis 450 mm
Table longitudinal movement speed 0-25 ...
Usable table surface area 1100x450 mm
Maximum transverse travel 560 mm
Maximum longitudinal travel 1050 mm
Maximum distance between table and spindle axis 450 mm
Table longitudinal movement speed 0-25 m/min
Automatic transverse feed 3-40 mm
Continuous rapid traverse movement 0-1000 m/min
Manual transverse feed - 1 indexing device 0.002 mm
Transverse travel per handwheel revolution 2 mm
Manual vertical movement - 1 indexing device 0.005 mm
Vertical travel per handwheel revolution 1 mm
Automatic head descent 0.005-003 mm
Manual micrometric descent 0.005 mm
Number of table T-slots 3
Approximate net weight of the machine: 4300 kg
Grinding wheel rotation speed: 1400 m/min
Grinding wheel hole diameter: 127 mm
Grinding wheel diameter: 400 mm
Maximum width: 40-60 mm
Grinding wheel spindle motor power: 10 HP
Hydraulic unit motor power: 3 HP
Cooling pump motor power: 0.25 HP
Working
