INNSE ATLAS 2 P CNC 2002
- Condition: used
- published: 27/10/2025
- 25IND34678
Technical data
- Condition: used
- Year: 2002
Description

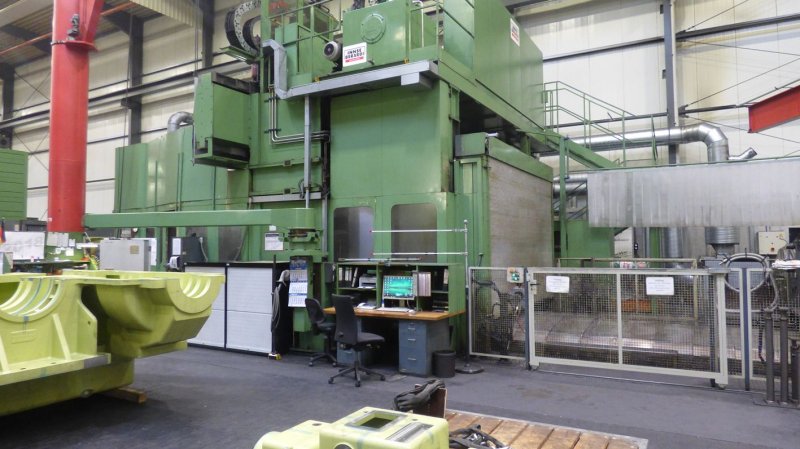

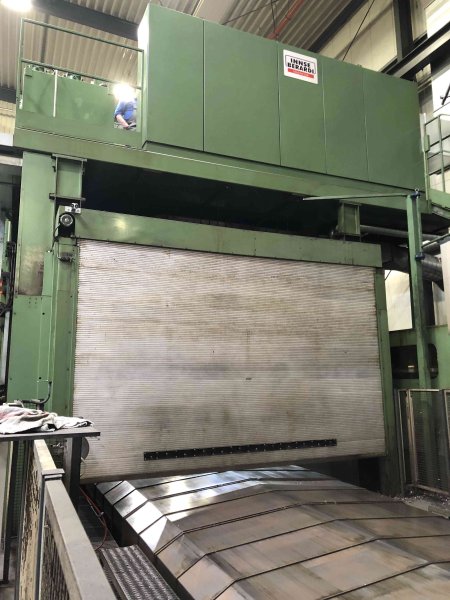

INNSE ATLAS 2 P CNC GANTRY MILLING MACHINE
- Table No. 1; 4,000 x 3,000 mm.
- Table No. 2; 3,000 x 3,000 mm.
- Unite table 8,000 x 3,000 mm.
- Clearance between frames 3,500 mm.
- Max. working height ...
INNSE ATLAS 2 P CNC GANTRY MILLING MACHINE
- Table No. 1; 4,000 x 3,000 mm.
- Table No. 2; 3,000 x 3,000 mm.
- Unite table 8,000 x 3,000 mm.
- Clearance between frames 3,500 mm.
- Max. working height 2,000 mm.
- Table load capacity 50 tons.
- Table longitudinal travel (X) 9,000 mm.
- Head transverse travel (Y) 4,000 mm.

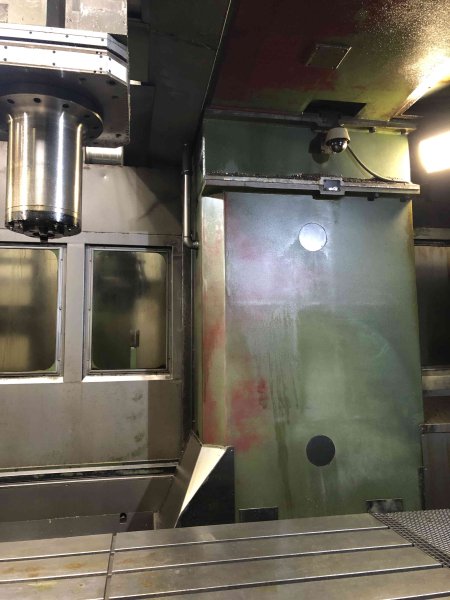

- Ram vertical travel (Z) 1,500 mm.

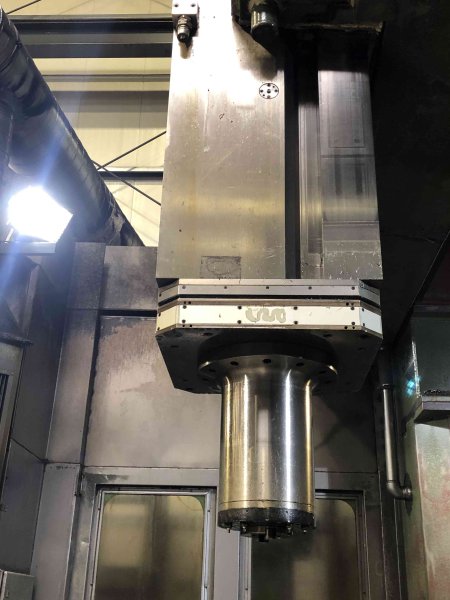

- Ram cross-section 550 x 550 mm.
- Spindle taper ISO 50
- Spindle speed 5 ÷ 4,833 rpm.
- 60 kW spindle motor power

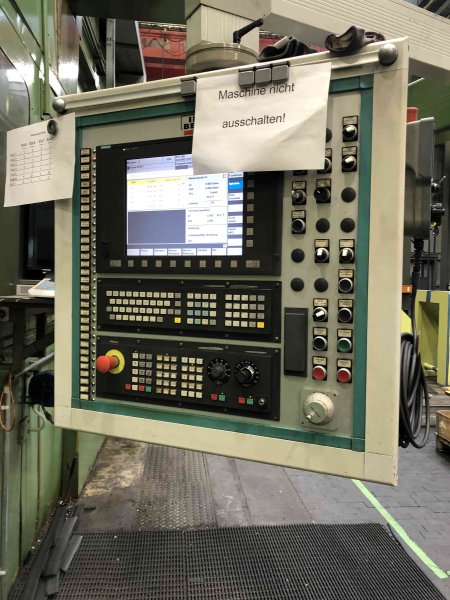

- Siemens 840 D CNC
- Year of manufacture: 2002
Complete with:
- 160-slot tool magazine
- Head magazine
- C-axis indexed 0.5°; 0 to 360°
- 1 Tom 25 S tilting head: A-axis -10° to 115°
- 5 square heads
- 1 extension head
- Double chip conveyor
