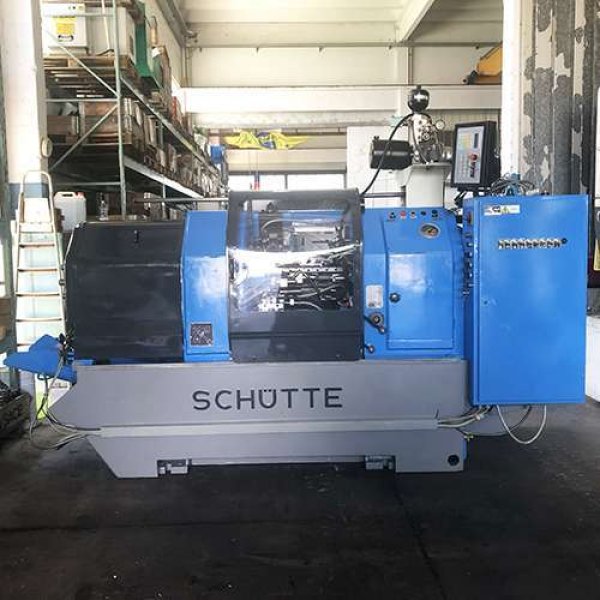

SCHUTTE SE16
- Condition: used
- published: 15/10/2025
- 25IND36047
Technical data
- Condition: used
- Year: undefined
Description
code 22036 - 6 spindles - Bar diameter: 16 mm (18 mm). - Max. bar feed: 120 mm. - Longitudinal slide strokes: (total/working stroke) 80/63 mm. - Cross slide strokes (total/working stroke): upper slide ...
code 22036 - 6 spindles - Bar diameter: 16 mm (18 mm). - Max. bar feed: 120 mm. - Longitudinal slide strokes: (total/working stroke) 80/63 mm. - Cross slide strokes (total/working stroke): upper slides 42/29 mm - central slides 54/29.5 mm - lower slides 60/31.9 mm. - Spindle speed: no. 45 - Spindle speeds: 400-5000 rpm. - Normal working time: 1.25 sec. - Drive motor power: 11 kw. - Drive motor speed: 1500 rpm. - Machine dimensions with bar guides 5470 mm. - Devices and Accessories: Hydraulic pick-up bag – Complete male/die threader – Chip conveyor – Fume extractor – Various accessories – Wiring diagram
