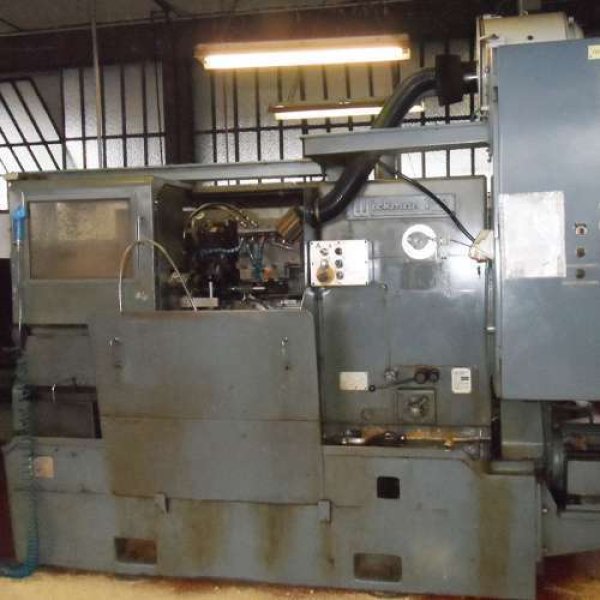

WICKMAN 1”/6
- Condition: used
- published: 15/10/2025
- 25IND36053
Technical data
- Condition: used
- Year: undefined
Description
Code 21003 - 6 spindles - Bar diameter: round 25.4 mm - hexagonal 21.8 mm - square 17.7 mm. - Feed travel: On the main tool block: 0 – 63.5 mm
- On independent slides: 0 – 63.5 mm. - Approach trav ...
Code 21003 - 6 spindles - Bar diameter: round 25.4 mm - hexagonal 21.8 mm - square 17.7 mm. - Feed travel: On the main tool block: 0 – 63.5 mm
- On independent slides: 0 – 63.5 mm. - Approach travel on the main tool block: normal: 63.5 mm - special: 50.8 mm - Cross slide feed travel: lower 0-12.7 mm, - upper 0-12.7 mm, - intermediate 0.8-12.7 mm. - Motor: 11 kW at 1450 rpm. - Spindle speed range: normal: 247-3030 rpm - with spindle stop: 220-2694 rpm. - Cycle time range: normal-with stop: 2.4-129 seconds. - SACO hydraulic pick-up in 6th position – Threading device in 4th position – Quick-change tool holder – Spindle stop – Chip conveyor
