QUASER MV204 2007
- Condition: used
- published: 20/02/2026
- 25IND41943
Technical data
- Condition: used
- Year: 2007
Description

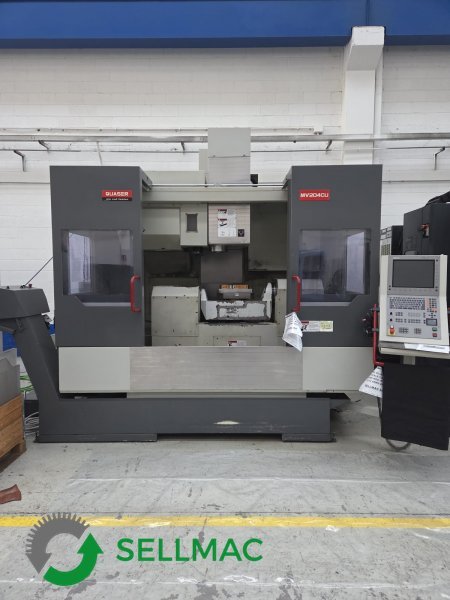

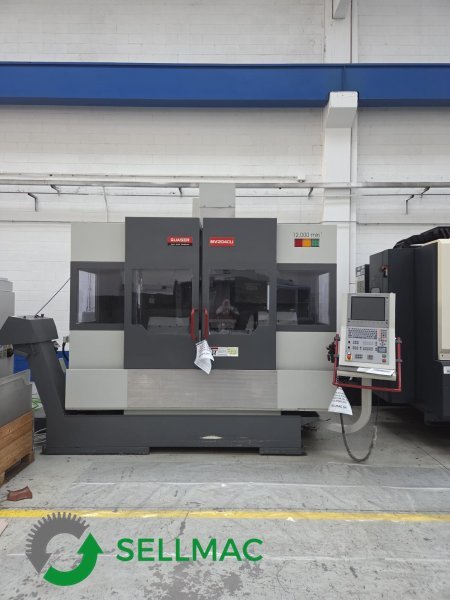

QUASER MOD. WORK CENTER MV204-CU/12
Year 2007
Manufacturer: QUASER
Model: MV204-CU/12
CNC: HEIDENHAIN TNC 530, 15" monitor
Features
X-axis travel: 700 mm
Y-axis travel: 660 mm
Z-axis travel: 480 mm ...
QUASER MOD. WORK CENTER MV204-CU/12
Year 2007
Manufacturer: QUASER
Model: MV204-CU/12
CNC: HEIDENHAIN TNC 530, 15" monitor
Features
X-axis travel: 700 mm
Y-axis travel: 660 mm
Z-axis travel: 480 mm

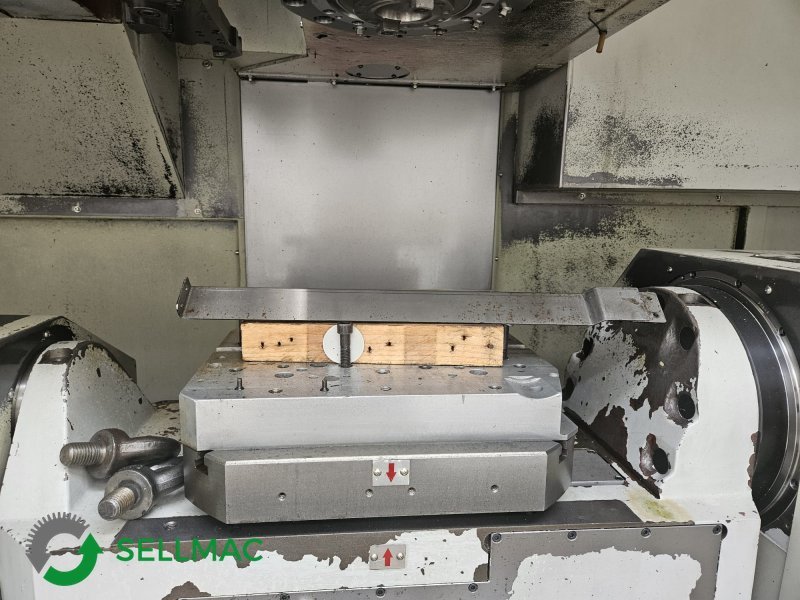

Table surface area: 400 x 400 mm
Permitted weight: 265 kg
Spindle nose travel: 150 – 610 mm
A-axis rotation range: +/- 110°
C-axis rotation range: 360°
X-Y-Z rapid traverses: 30 meters/min
Spindle speed: 12,000 rpm
SK 40 spindle taper
Internal spindle coolant

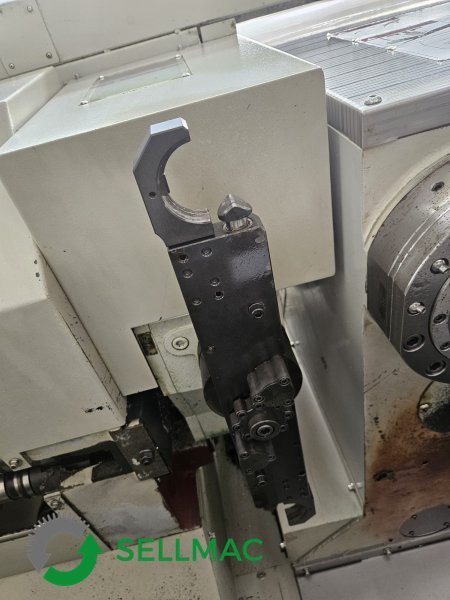

Tool changer: tool magazine 32-station chip conveyor
Belt chip conveyor
Electronic handwheel
Optical scales
Dimensions: 3500 x 3000 x 2900 mm
Weight: 9,500 kg
Machine comes with CE certification and manual
All technical data shown is indicative and subject to change without notice. Therefore, it should not be considered binding.
