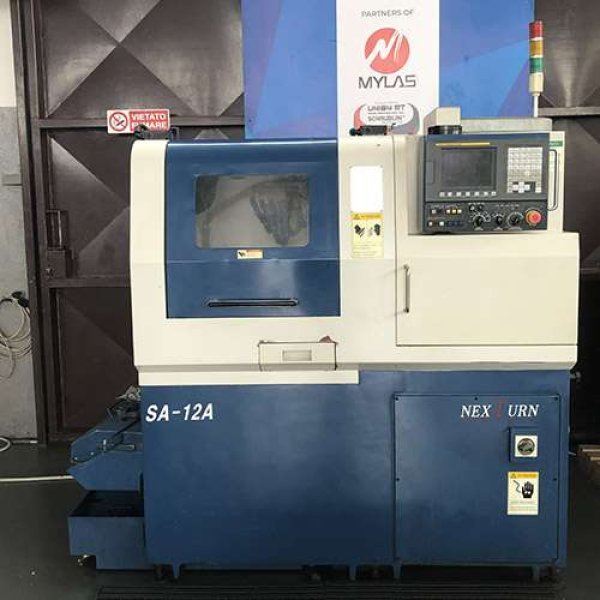

NEXTURN SA12A 2006
- Condition: used
- published: 23/04/2026
- 25IND42617
Technical data
- Condition: used
- Year: 2006
Description
cod. 23205 - Max turning bar diameter: Ø 12 mm - Max turning length: 160 mm - Max spindle drilling/tapping: Ø 7 mm/M6 - Max counter spindle diameter: Ø 12 mm - Max rear drilling/tapping: Ø 7 mm/M6 ...
cod. 23205 - Max turning bar diameter: Ø 12 mm - Max turning length: 160 mm - Max spindle drilling/tapping: Ø 7 mm/M6 - Max counter spindle diameter: Ø 12 mm - Max rear drilling/tapping: Ø 7 mm/M6 - Max cross drilling/tapping: Ø 7 mm/M5 - Max cross disc milling: Ø 30 mm - Max main spindle speed: 10,000 rpm - Total number of tools: 18 (15) - Tool dimensions: ▢ 10×120 mm - Rapid feeds: 32 m/min - Fanuc Oi-TC CNC – Controllable axes 4 – X, Z, Y, B axes designation – Wiring diagrams – Transformer – Case.
Working
CE compliant
