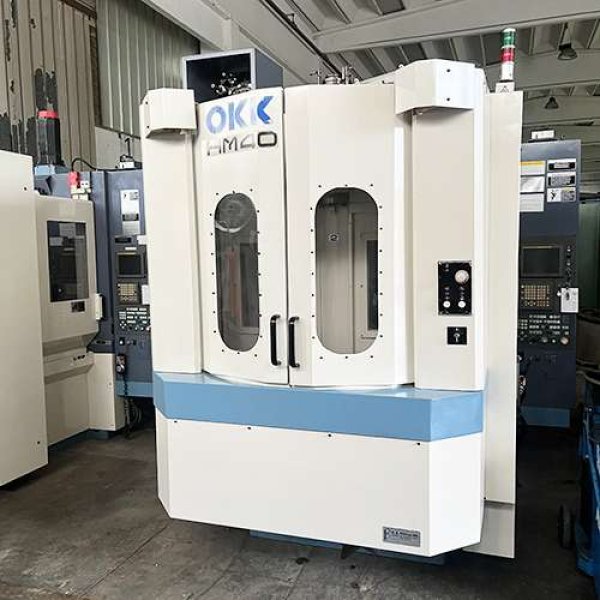

OKK HM-40 1998
- Condition: used
- published: 15/01/2026
- 25IND42969
Technical data
- Condition: used
- Year: 1998
Description
Code 24022 - Horizontal Machining Center
WORKING RANGE: X-axis (column: left/right): 620 mm - Y-axis (spindle head: up/down): 560 mm - Z-axis (pallet: forward/backward): 560 mm
PALLETIZATION: Distance ...
Code 24022 - Horizontal Machining Center
WORKING RANGE: X-axis (column: left/right): 620 mm - Y-axis (spindle head: up/down): 560 mm - Z-axis (pallet: forward/backward): 560 mm
PALLETIZATION: Distance between table center and spindle: 150–710 mm - Pallet work surface: 400 x 400 mm - Pallet capacity: 450 kg - Pallet change time: 5 seconds
SPINDLE: Power: 22 kW - Number of speeds: 2 - Rotation speed: 30–6000 rpm - Spindle bore diameter: Ø 85 mm
FEEDS: Rapid feed: 40,000 mm/min.
TOOLS: Tool holder type: JIS B 6339 40T - Magazine positions: 58+2 - Maximum tool weight: 12 kg - Maximum tool length: 300 mm - Maximum tool diameter: 82 mm - Tool change time: 4 seconds
Devices and accessories: Fanuc 16i-M CNC – Transformer – Cooling chiller – High-pressure oil filtration unit – Fume extractor – Screw chip conveyor – Tool box – Wiring diagrams
