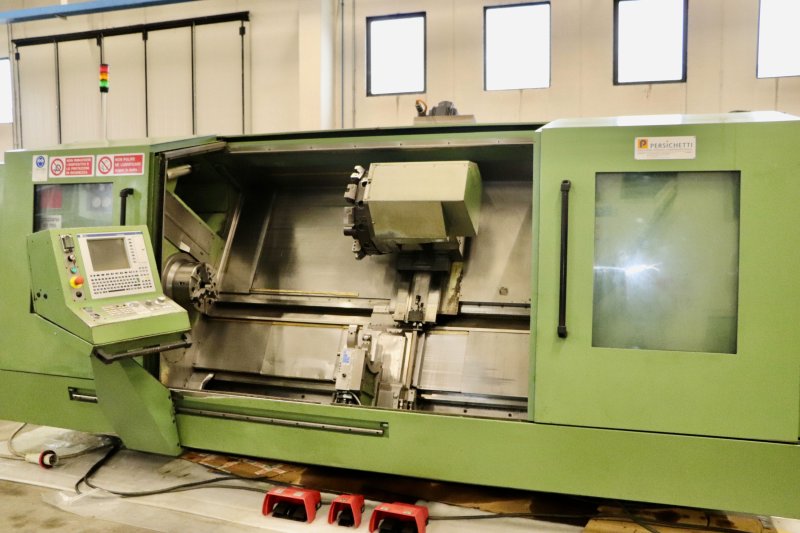

GRAZIANO gt 700 (asse c) 2000
- Condition: used
- published: 26/02/2026
- 25IND42984
Technical data
- Condition: used
- Year: 2000
Description
Max turning diameter mm. 400 Max turning length mm. 2000 Max turning diameter from bar mm. 87 Spindle nose ASA 11 Main spindle rotation speed rpm 2000 Main spindle motor Kw. 35/55 Overall dimensions m ...

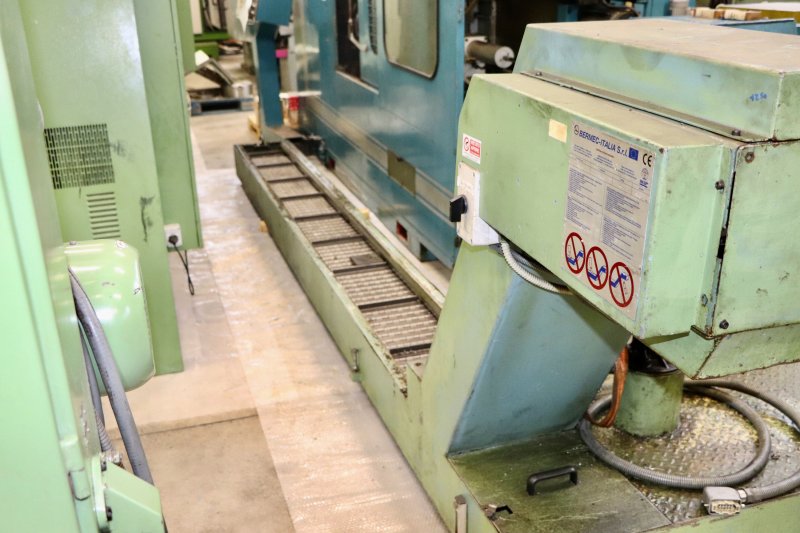

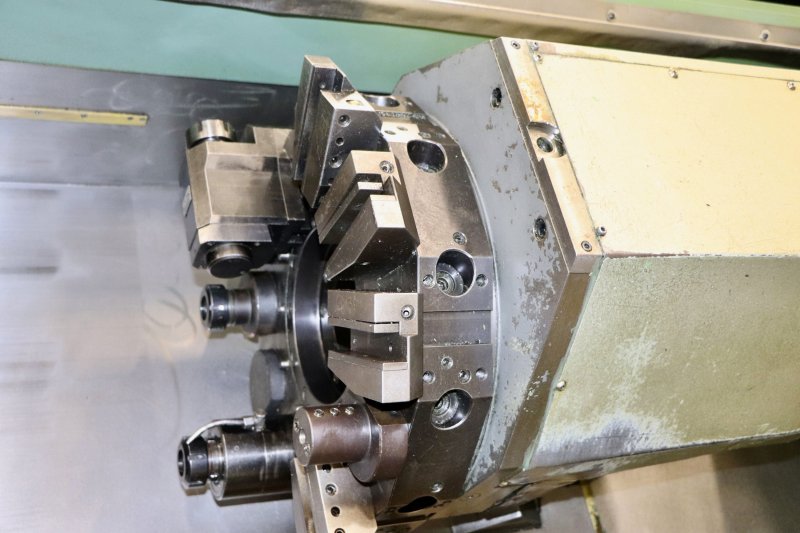

Max turning diameter mm. 400 Max turning length mm. 2000 Max turning diameter from bar mm. 87 Spindle nose ASA 11 Main spindle rotation speed rpm 2000 Main spindle motor Kw. 35/55 Overall dimensions mm. 6200X2500X2200h Weight approximately Kg 11000 COMPLETE WITH: - CNC REXROTH INDRAMAT mod. SYSTEM 200 - AUTOBLOCK hydraulic chuck diam. 315 with 3 jaws - SAUTER hydraulic turret with 12 positions VDI 50 motorized - Hydraulic tailstock in cycle CM 5 - AUTOBLOCK hydraulic steady rest mod. SLU 3.1 (20-165) - Chip conveyor - No. 01 ER 40 axial motorized spindle - No. 01 ER 40 radial motorized spindle - Various tool holders + boring bar holders
