SERRMAC TCSE 2025
- Condition: new
- published: 24/10/2025
- 25IND47172
Technical data
- Condition: new
- Year: 2025
Description

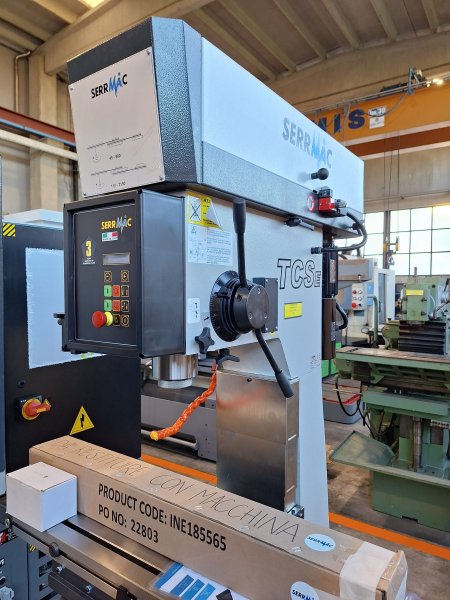

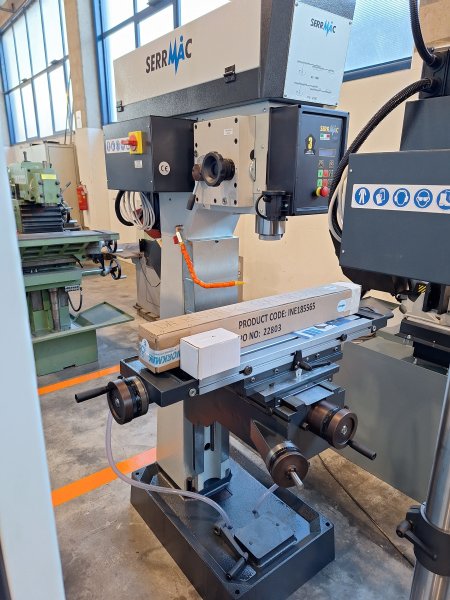

High-Tech Series Drill-Milling Machine
Serrmac TCS E NEW
- READY FOR DELIVERY
- VIEWING IN CASTELLANZA (VA)
The E version is equipped with a high-performance transmission and electronic speed variat ...
High-Tech Series Drill-Milling Machine
Serrmac TCS E NEW
- READY FOR DELIVERY
- VIEWING IN CASTELLANZA (VA)
The E version is equipped with a high-performance transmission and electronic speed variator via vector inverter.
High-Tech Series Drill-Milling Machine with High-Performance Transmission
Equipped with a rectangular table or a cross table. The drill comes standard with a membrane control panel with display, automatic mechanical spindle descent, LED lighting, and tool coolant. Two transmissions are available: a simple variator and a delayed variator, which vary in speed. The VR has a wider range of speeds.
Excellent for milling operations; equipped with a prismatic column, useful for dampening vibrations. Drilling diameter in steel: 50 mm.
Drilling capacity in R50 steel: Ø 50 mm
Tapping capacity in R50 steel: M26 mm
Spindle taper: CM4
Spindle stroke: 145 mm
Spindle quill diameter: 72 mm
Automatic feed: mm/rev 3 SPEEDS: 0.05 - 0.1 - 0.2 mm/rev
Automatic feed with electromagnetic clutch: mm/rev 3 SPEEDS: 0.05 - 0.1 - 0.2 mm/rev
Column: Prismatic
Table: TR – TC
Transmission: VS / VR / CI
Spindle speeds: 100 - 1,620 / 40 - 2,340 / 50 - 1,300 rpm
Motor power (380 V 50 Hz): 2.2 kW 3 / 2.2 / 2.2 - 3
Distance between two T-slots (TR): 180 mm
Distance between three T-slots (TC): 80 mm
T-slot dimensions: 14 mm

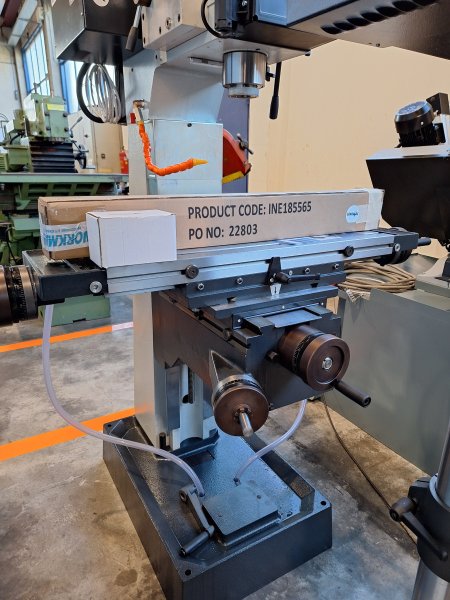

Cross table: manual longitudinal travel on X-axis: 585 mm
Cross table: automatic X-axis feed: 520 mm
Cross table: manual transverse travel on Y-axis: 240 mm
Dimensions (h x w x d) with column: 1,986 x 1,340 x 1,280 mm
Weight: 660 kg (TR) – 780 kg (TC)
Under warranty
CE compliant
