CHIRON FZ 15 S High Speed
- Condition: used
- published: 06/10/2025
- 25IND47254
Technical data
- Condition: used
- Year: undefined
- X-axis travel: 0/1000 mm
Description
CHIRON FZ 15 S 5-Axis Machining Center, Used – Refurbished (2 machines available)
Main spindle drive with AC motor,
9.5 kW at 100% DC,
14.0 kW at 15% DC,
Speed range: 20 - 10,500 ...
Main spindle drive with AC motor,
9.5 kW at 100% DC,
14.0 kW at 15% DC,
Speed range: 20 - 10,500 ...
CHIRON FZ 15 S 5-Axis Machining Center, Used – Refurbished (2 machines available)
Main spindle drive with AC motor,
9.5 kW at 100% DC,
14.0 kW at 15% DC,
Speed range: 20 - 10,500 rpm – max,
Axis travels,
X-axis 550 mm,
Y-axis 400 mm,
Z-axis 425 mm with variable tool change level,

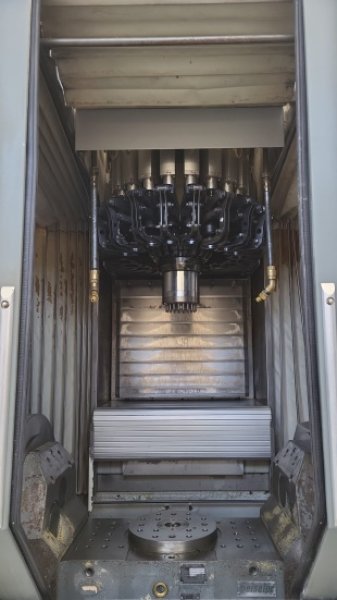

Chip-free automatic tool changer,
Storage locations: 20,
Maximum tool diameter 65 mm,
Maximum adjacent clearances 175 mm,
Maximum tool weight 2.5 kg (5.0 kg in 4 places),
Tool change time approx. 0.9 s (depending on the controller),
Chip-to-chip time approx. 2.1 s (depending on the control),

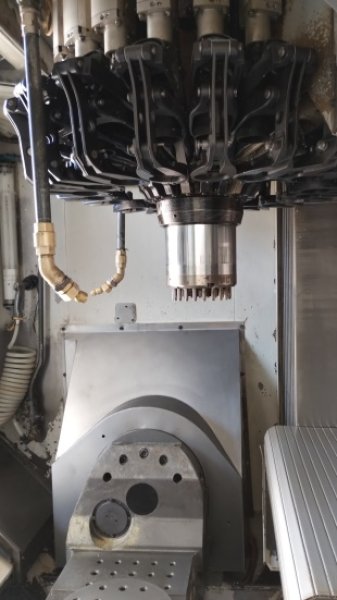

ZAS 280 2-axis swiveling device consisting of: 4th and 5th NC axes,
Smallest input pitch 0.0001°,
Rotary axis,
Rotation angle ± 110°,
Division accuracy ± 6",
RCN 220 direct and absolute position measuring system,
By worm gear drive with hydraulic locking,
Maximum transmittable torque 1,100 Nm,
Holding torque 3,800 Nm,
Maximum speed 30 min-1,
NC rotary table front ø 280 mm with thread and M16 x ø connection hole pattern 15 H7 x 50 mm with hydraulic locking,
Division accuracy ± 6",
Maximum transport load 320 kg,
With worm gear drive,
Maximum transmittable torque 700 Nm,
Holding torque 2800 Nm,
Maximum speed 45 min-1 (depending on the control)
Hydraulic unit,
Pressure: 210 bar, flow rate: 4.3 l/min,
Central 4-way hydraulic or pneumatic rotary valve integrated into axes A and B, with 4 O-ring connections in the center of the front panel.

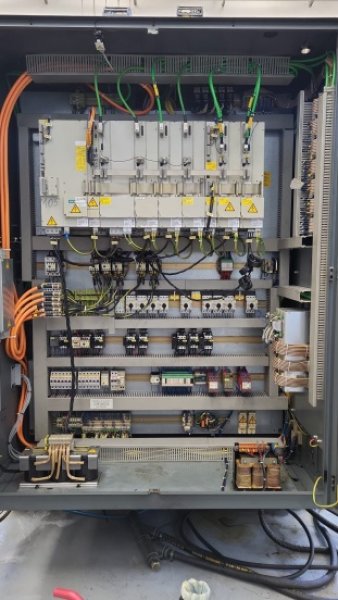

Optional: high pressure with paper filter, electrical cabinet air conditioning, hydraulic locking, automatic doors.
Approximate data. Check for any discrepancies between the indicated data and the actual values before purchasing.
https://www.meccsrl.net/negozio/chiron-fz-5-s-usato/
For information or appointments, contact:
039 9796687
info@meccsrl.net
Main spindle drive with AC motor,
9.5 kW at 100% DC,
14.0 kW at 15% DC,
Speed range: 20 - 10,500 rpm – max,
Axis travels,
X-axis 550 mm,
Y-axis 400 mm,
Z-axis 425 mm with variable tool change level,
Chip-free automatic tool changer,
Storage locations: 20,
Maximum tool diameter 65 mm,
Maximum adjacent clearances 175 mm,
Maximum tool weight 2.5 kg (5.0 kg in 4 places),
Tool change time approx. 0.9 s (depending on the controller),
Chip-to-chip time approx. 2.1 s (depending on the control),
ZAS 280 2-axis swiveling device consisting of: 4th and 5th NC axes,
Smallest input pitch 0.0001°,
Rotary axis,
Rotation angle ± 110°,
Division accuracy ± 6",
RCN 220 direct and absolute position measuring system,
By worm gear drive with hydraulic locking,
Maximum transmittable torque 1,100 Nm,
Holding torque 3,800 Nm,
Maximum speed 30 min-1,
NC rotary table front ø 280 mm with thread and M16 x ø connection hole pattern 15 H7 x 50 mm with hydraulic locking,
Division accuracy ± 6",
Maximum transport load 320 kg,
With worm gear drive,
Maximum transmittable torque 700 Nm,
Holding torque 2800 Nm,
Maximum speed 45 min-1 (depending on the control)
Hydraulic unit,
Pressure: 210 bar, flow rate: 4.3 l/min,
Central 4-way hydraulic or pneumatic rotary valve integrated into axes A and B, with 4 O-ring connections in the center of the front panel.
Optional: high pressure with paper filter, electrical cabinet air conditioning, hydraulic locking, automatic doors.
Approximate data. Check for any discrepancies between the indicated data and the actual values before purchasing.
https://www.meccsrl.net/negozio/chiron-fz-5-s-usato/
For information or appointments, contact:
039 9796687
info@meccsrl.net
