GRAZIANO GILDEMEISTER CTX 510 2009
- Condition: used
- published: 06/10/2025
- 25IND47263
Technical data
- Condition: used
- Year: 2009
- Bar passage : > 65 mm
Description

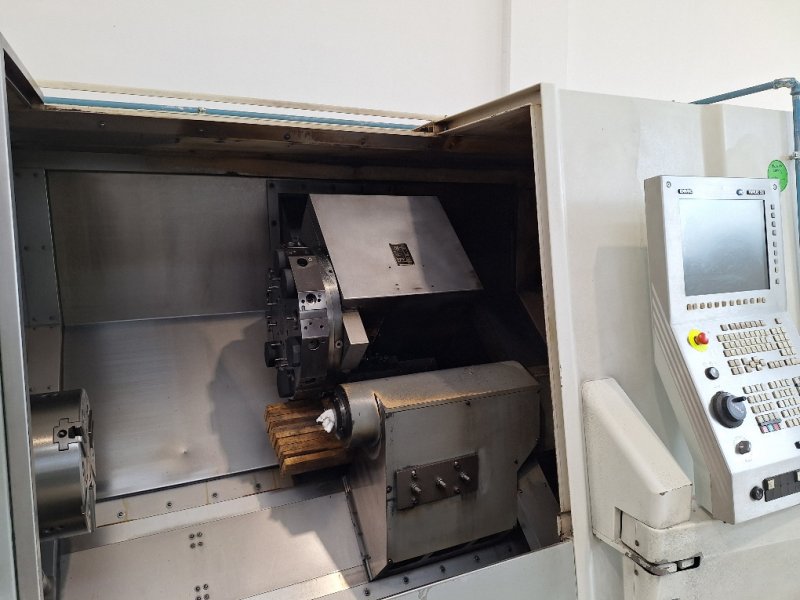

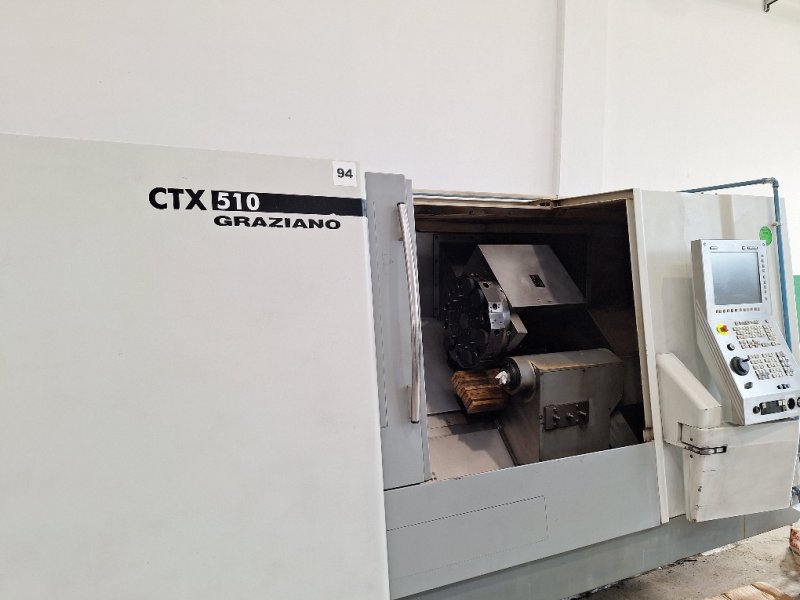

DMC-MORI GRAZIANO CTX510
Motorized CNC lathe

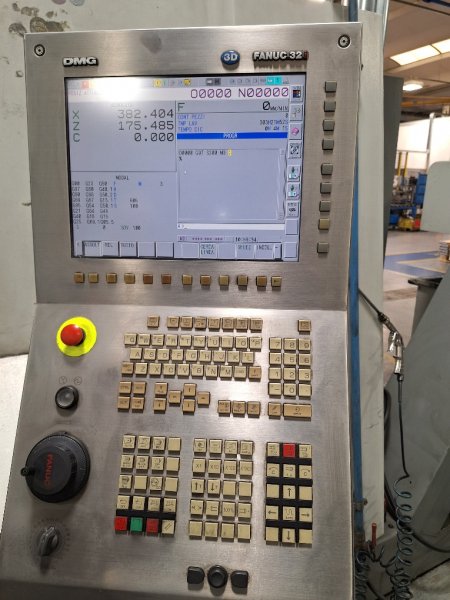

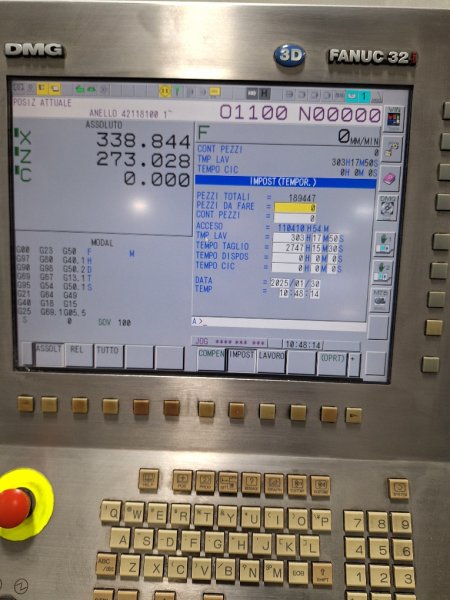

Fanuc 32i control with manual guide
Autoblok chuck, diameter 310 mm
Year 2009
Spindle speed 3500 rpm with gear change
Turning diameter 465 mm
Turning lengt ...
DMC-MORI GRAZIANO CTX510
Motorized CNC lathe
Fanuc 32i control with manual guide
Autoblok chuck, diameter 310 mm
Year 2009
Spindle speed 3500 rpm with gear change
Turning diameter 465 mm
Turning length 1000 mm

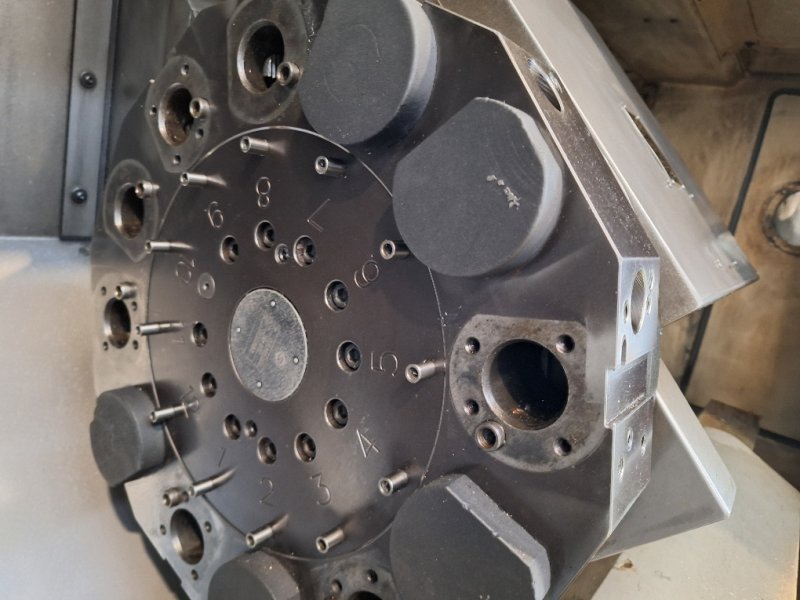

Sauter turret, 12 stations, all motorized
25 square tools
Drill holder, diameter 40 mm
Bar passage 90 mm
Presetting
Chip conveyor
Dimensions 5183 x 1856 x 1930 mm
RS232 - USB port
Power 31-42 kW; 495-670 Nm
30-meter rapids
Programming manual
User manual
Wiring diagram manual
Part list manual
Technical manual
CE mark
9500 kg
Machine in production
