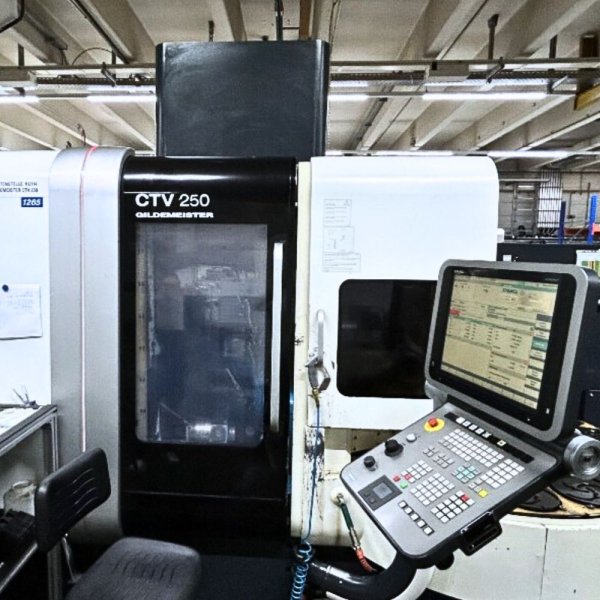

GILDEMEISTER CTV 250 2009
- Condition: used
- published: 08/10/2025
- 25IND47346
Technical data
- Condition: used
- Year: 2009
Description

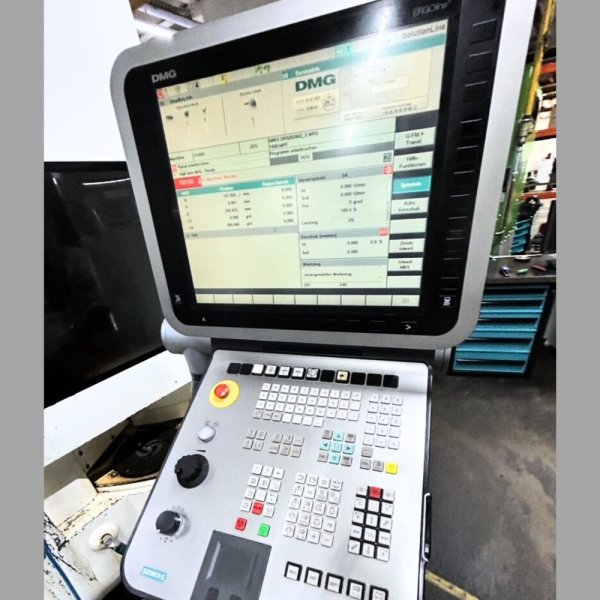

Numerical control: SIEMENS SINUMERIK 840D-ERGOLINE
Capacity
X-axis travel mm: 725
Y-axis travel mm: ± 50
Z-axis travel mm: 300
Turning length mm: 160
Swing diameter mm: ø: 250
Swing diameter mm: ø: ...
Numerical control: SIEMENS SINUMERIK 840D-ERGOLINE
Capacity
X-axis travel mm: 725
Y-axis travel mm: ± 50
Z-axis travel mm: 300
Turning length mm: 160
Swing diameter mm: ø: 250
Swing diameter mm: ø: 320
Tool magazine
Number of positions: 16
Tool holder type: VDI-30
Maximum tool length mm: 390
Maximum tool diameter mm: 140

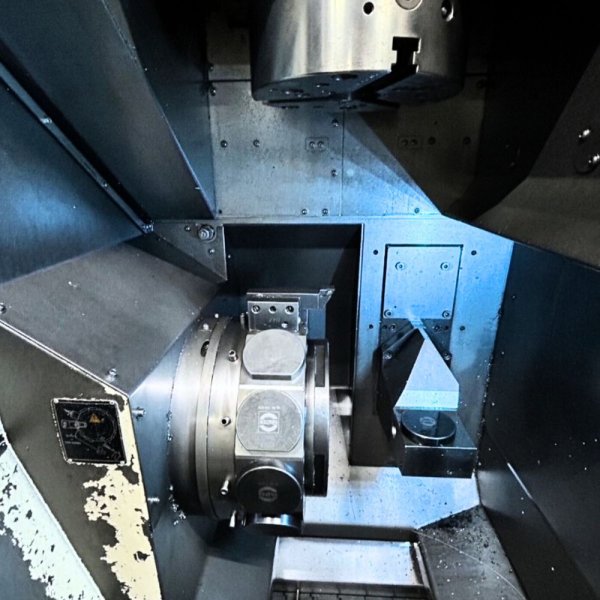

Lower turret
Number of tool positions: 12
Driven tools, speed rpm: 4,000
Driven tools, power kW: 11.7
Milling function: Yes
Main spindle
Spindle rotation speed rpm: 5,000
Spindle power kW: 11.7 (40% DC)
Maximum torque Nm: 280 / 360 (100% / 40% DC)
Coolant system
Tank capacity: 980 L
High pressure bar: 8 / 20
Equipment
Chip conveyor
CE compliant
Coolant gun
Air blast / coolant switch-over
Internal coolant supply

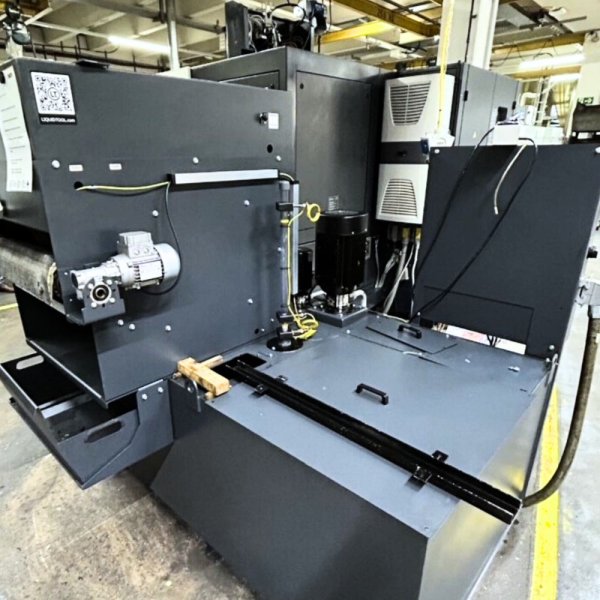

Paper band filter

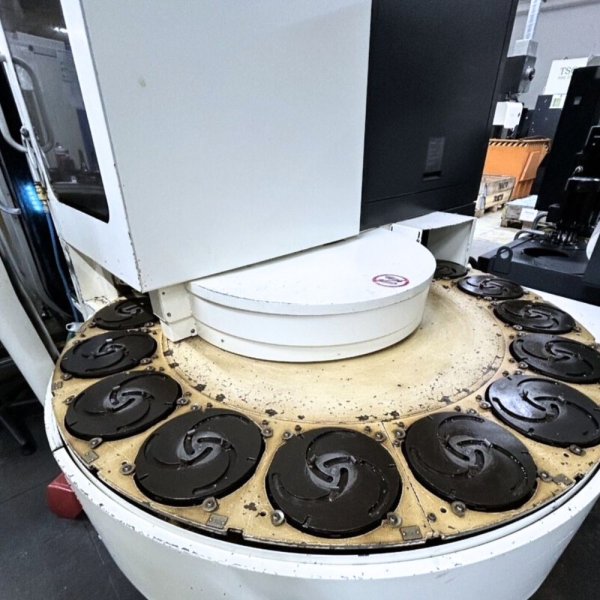

Automatic workpiece magazine loader - 16 positions x ø 220
Working time
Powered: 38,000
Cutting time: 26,000
Main machine dimensions / weight
Length mm: 3,171
Width mm: 4,254
Height mm: 2,648
Weight kg: 6,000
