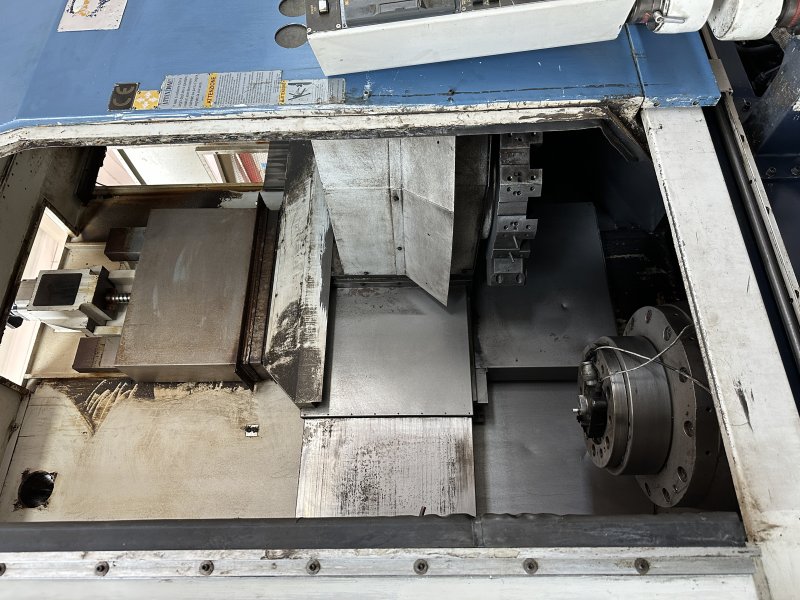

HONOR SEIKI CO. VL-66AT 2008
- Condition: used
- published: 13/10/2025
- 25IND47504
Technical data
- Condition: used
- Year: 2008
- Max working height : 0/1000 mm
- Max working diameter : 0/1000 mm
Description
USED, GOOD CONDITION, LIKE-NEW.
INSPECTIONS POSSIBLE.
SPECIFICATION TABLE:
Model / Description VL-66T
Maximum swing diameter (mm) 800
Maximum turning diameter (mm) 660
Maximum turning height (mm) 66 ...
USED, GOOD CONDITION, LIKE-NEW.
INSPECTIONS POSSIBLE.
SPECIFICATION TABLE:
Model / Description VL-66T
Maximum swing diameter (mm) 800
Maximum turning diameter (mm) 660
Maximum turning height (mm) 660
Hydraulic spindle (mm) 15”, 18”, 21”
Table speed range (mm) 25–2000
Front bearing diameter (mm) 160
Spindle nose A2-11
Turret type H12+H12
Number of tool positions (workpieces) 12
Tool size (mm) □25, □32, Ø40, Ø50
Rapid traverse (X-axis) (m/min) 20 m/min 4KW
Rapid traverse (Z-axis) (m/min) 20 m/min 4KW
Horizontal Travel (Z-Axis) (mm) 380
Vertical Travel (Z-Axis) (mm) 760
Cutting Feed (mm/rev) 0.001–500
Feed Motor (X/Z-Axes) (%) 0–150
Spindle Motor (Continuous / 30 min) (kW) 22 / 18.5
Feed Motor (kW) 4.0 / 4.0
Live Tool Motor (kW) –
Power Requirement (kVA) 40
Floor Space (W × D) (mm) 3910 × 3030
Maximum Height (mm) 3440
Net Weight (kg) 21000
SPECIFICATION TABLE:
Model / Descriptions VL-66T
Max. Swing Diameter (mm) 800
Max. turning diameter (mm) 660
Max. turning height (mm) 660
Hydraulic chuck (mm) 15”, 18”, 21”
Range of table speed (mm) 25–2000
Front bearing diameter (mm) 160
Nose of spindle A2-11
Type of turret H12+H12
Number of tool positions (ea) 12
Tool size (mm) □25, □32, Ø40, Ø50
Rapid rate (X-Axis) (m/min) 20m/min 4KW
Rapid rate (Z-Axis) (m/min) 20m/min 4KW
Horizontal travel (Z-Axis) (mm) 380
Vertical travel (Z-Axis) (mm) 760
Cutting feed rate (mm/rev) 0.001–500
Feed motor (X / Z axis) (%) 0–150
Spindle motor (Cont. /30min) (kw) 22 / 18.5
Feed motor (kw) 4.0 / 4.0
Live tool motor (kw) –
Power requirement (kva) 40
Floor space (L × W) (mm) 3910 × 3030
Max. height (mm) 3440
Net Weight (kg) 21000
Working
CE compliant
