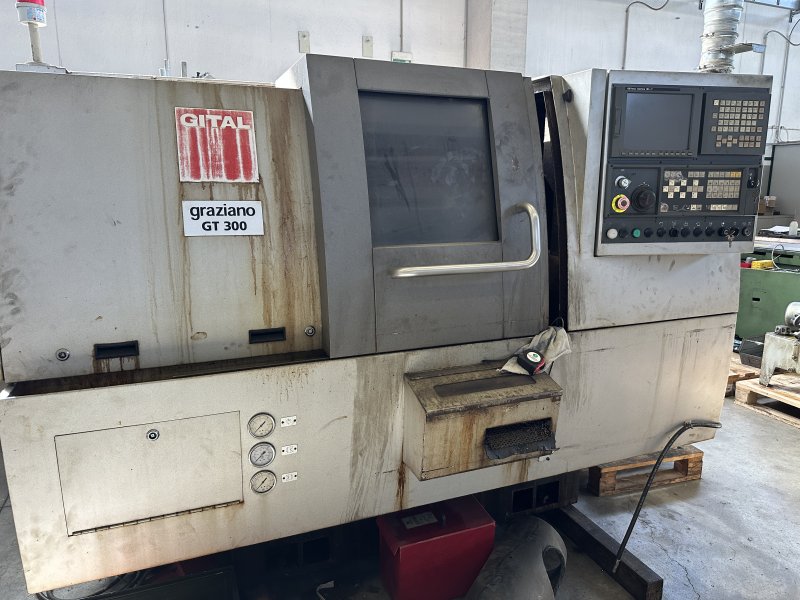

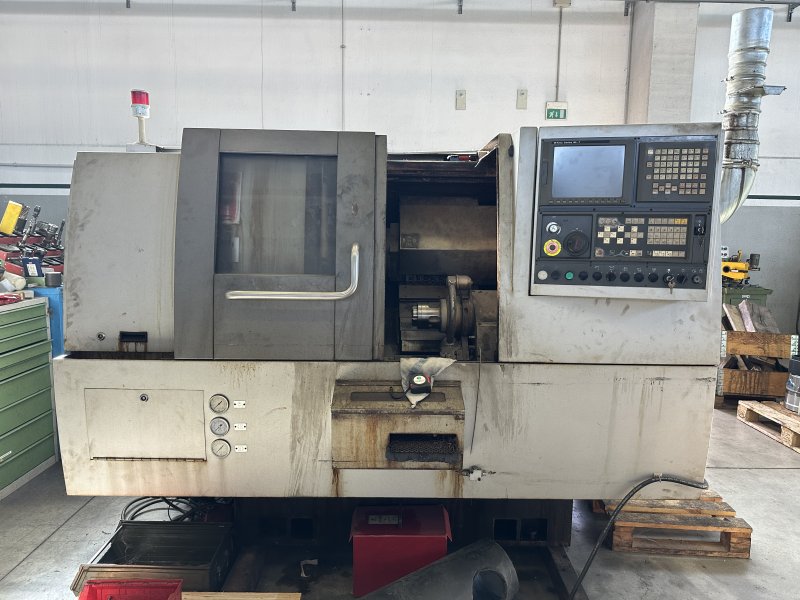

GRAZIANO GT 300
- Condition: used
- published: 08/10/2025
- 25IND47505
Technical data
- Condition: used
- Year: undefined
Description
USED REFURBISHED.
Spindle diameter: A6 HD1 - A5 HD2
Maximum workable diameter: Machinable: 230 mm
Maximum workable length: 590 mm
Spindle hole: 52 mm
Maximum spindle RPM: 5000 rpm HD1 - 5000 rpm HD2
S ...
USED REFURBISHED.
Spindle diameter: A6 HD1 - A5 HD2
Maximum workable diameter: Machinable: 230 mm
Maximum workable length: 590 mm
Spindle hole: 52 mm
Maximum spindle RPM: 5000 rpm HD1 - 5000 rpm HD2
Spindle motor power: 12 kW
Driven tool speed: 400 rpm
Weight & Dimensions
Machine floor space: 2250 x 1380 mm
Machine height: 1690 mm
Machine weight: 3000 kg
Axis stroke
Z-axis stroke: 500 mm
X-axis stroke: 160 mm

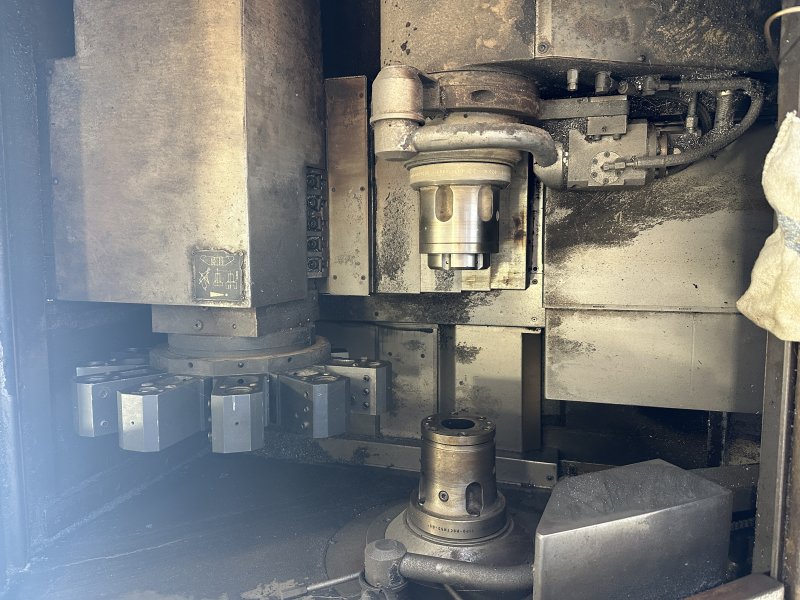

Turret: 12 static and motorized positions and driven tool
Included accessories – Included equipment
• Chip conveyor belt
• Coolant tank
• 9 boring bar holders, 3 external tool holders, 1 radial motorized tool
• Presetting arm
• Workpiece unloading arm
• Workpiece ejector
• 2 collet chucks
Working
CE compliant
