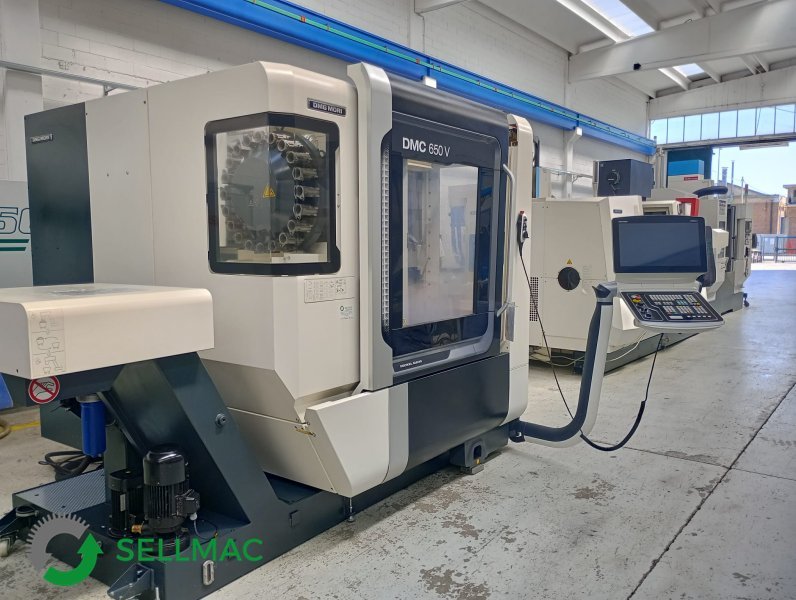

DMG MORI DMC 650 V 2017
- Condition: used
- published: 06/03/2026
- 25IND47553
Technical data
- Condition: used
- Year: 2017
Description

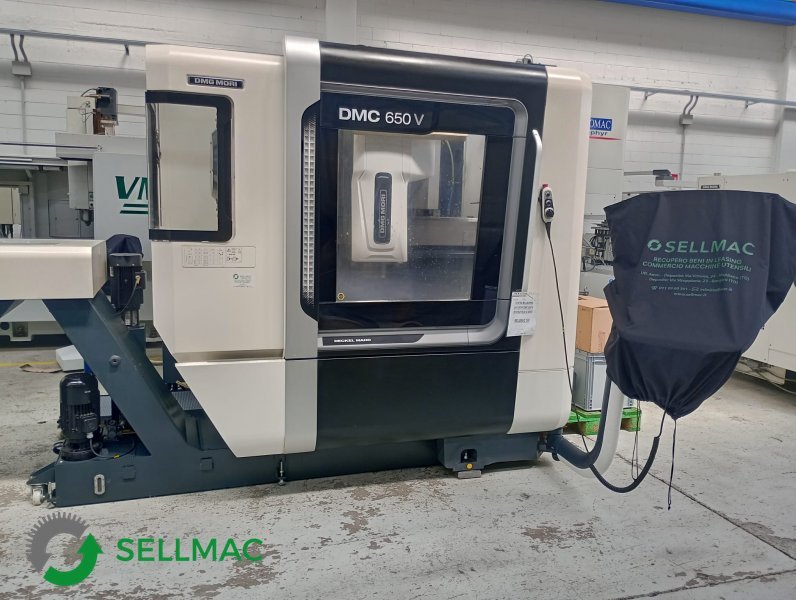

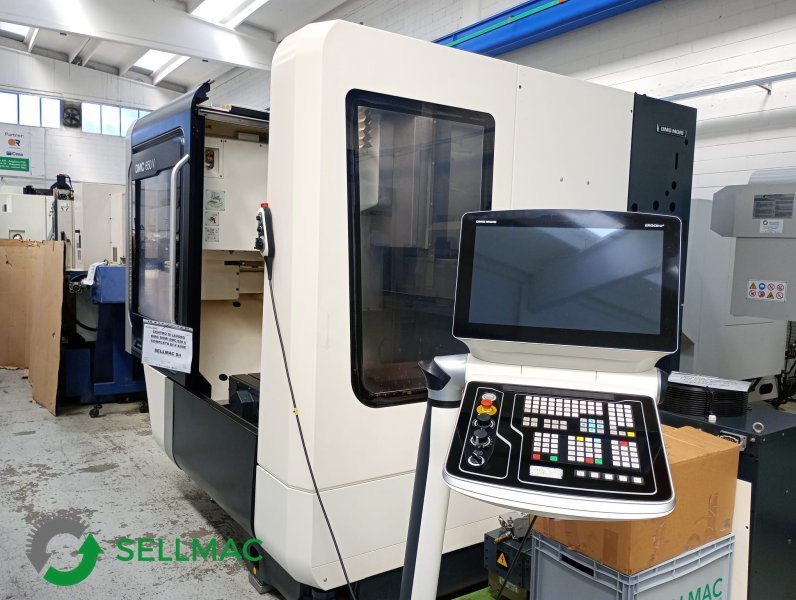

DMG MORI DMC 650 V MACHINING CENTER
Year 2017
Manufacturer DMG MORI
Model DMC 650 V

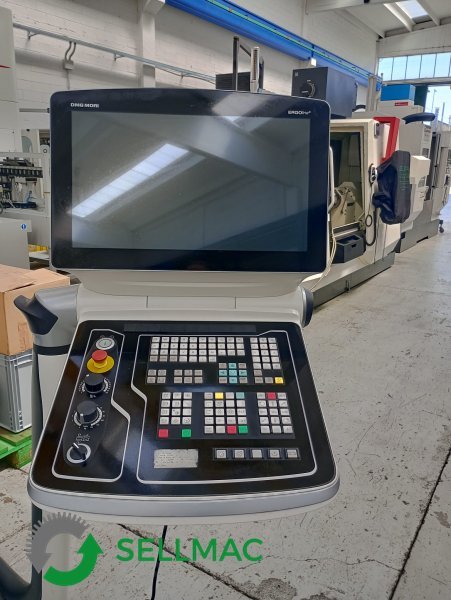

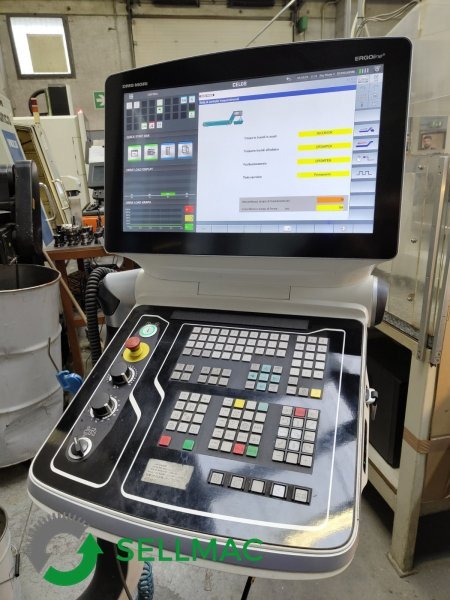

Celos CNC with Siemens 840D
Dimensions 4725 x 5090 mm, H 2670 mm
Weight 5,900 kg
FEATURES
AXIS TRAVELS
X-axis 650 ...
DMG MORI DMC 650 V MACHINING CENTER
Year 2017
Manufacturer DMG MORI
Model DMC 650 V
Celos CNC with Siemens 840D
Dimensions 4725 x 5090 mm, H 2670 mm
Weight 5,900 kg
FEATURES
AXIS TRAVELS
X-axis 650 mm
Y-axis 520 mm
Z-axis 475 mm
Rapid traverses 42 m/min
Feed speed up to 42,000 mm/min

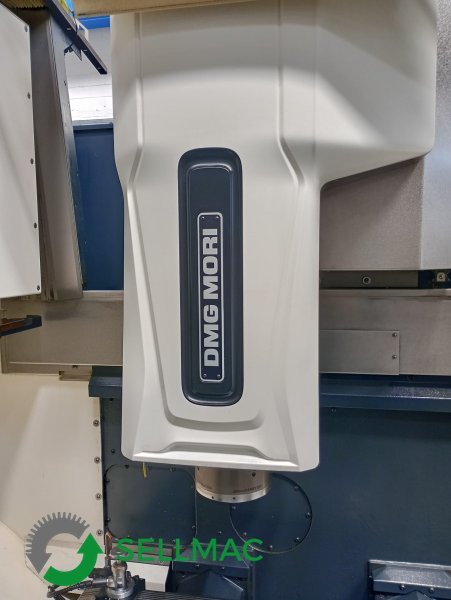

SPINDLE speedMASTER
Speed
Continuously programmable 20,000 rpm
In setup mode 800 rpm
Motor power
MAX. 40% ED kW 35
Rated power at 100% ED kW 25
Torque
Maximum spindle torque at 40% ED Nm 130
Rated torque at 100% ED Nm 86
Tool holder SK40
Tool pulling force kN 11.2

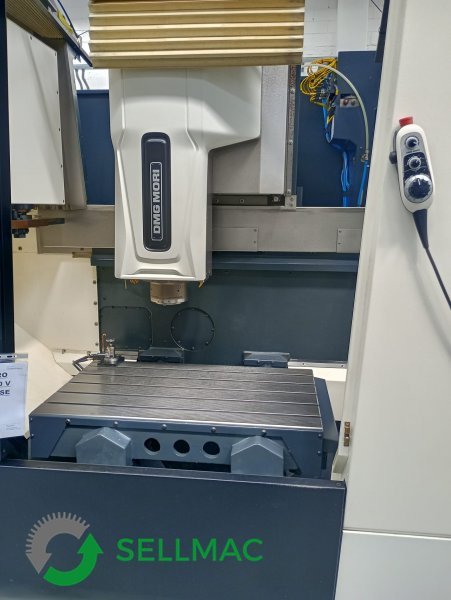

TABLE
Dimensions mm 960 x 570
Distance between T-slots mm 100
Number of slots pcs 4/14H12
Reference slot pcs 1/14H7
Max. load 800 kg
Loading height (corner base/table base) 800 mm
4TH AXIS - MORI SEIKI DDRT 200X NC DIVIDING UNIT
Center height 140 mm
Table diameter 200 mm
Center hole diameter 65H7 mm
Clamping surface diameter 50 mm
Clamping slot 14H6 mm
Clamping torque Nm 600
Maximum torque Nm 280
Rotation speed 150 rpm
Positioning time 5 s
Repetition time 3 s
Maximum workpiece diameter 250 mm
Maximum rotational speed 200 rpm
Load
Workpiece weight when clamped from one side max. 102 kg
Maximum vertical workpiece load 100 kg
Maximum vertical load workpiece load with tailstock 250 kg
Maximum horizontal workpiece load 250 kg
Weight
NC rotary table 115 kg
TOOL MEASUREMENT TT160
Probing accuracy µm < 15
Maximum deviation of measuring element 5 mm
Axial deflection force 8 N
Radial deflection force 1 N
Maximum probing speed m/min 5
Protection class (EN 60529) IP67
Working temperature °C 10-40

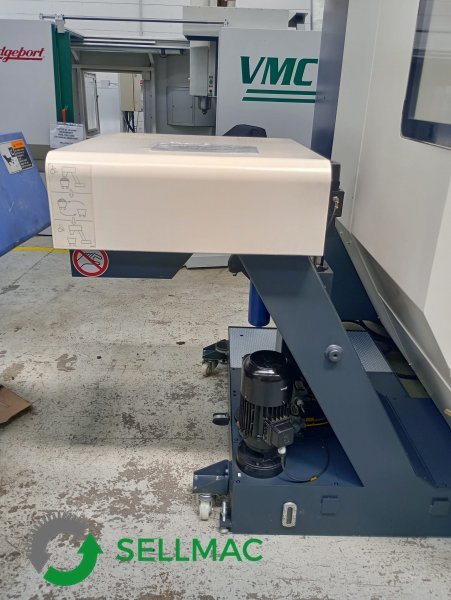

CHIP CONVEYOR WITH COOLANT EXTENSION SYSTEM
Filling volume 230 l
MACHINE COOLING UNIT
Effective cooling capacity 4.5 kW
Cooling circuit pump min 40
Refrigerant R 134a
Coolant Water - Antifrogen® L % 70/30
Coolant filling volume 38 l
Discharge temperature °C +15 - +30
Permitted ambient temperature °C +10 - +45
Unit weight without filling 130 kg
Other useful information
Operating hours: Approximately 2200
Tool magazine: 20 Slot machine
Machine supplied with use and maintenance manuals
All technical data shown is indicative and subject to change without notice. Therefore, it should not be considered binding.
Working
CE compliant
