TRIMILL VF3016 2017
- Condition: used
- published: 16/10/2025
- 25IND47569
Technical data
- Condition: used
- Year: 2017
- X-axis travel: 2001/3000 mm
Description

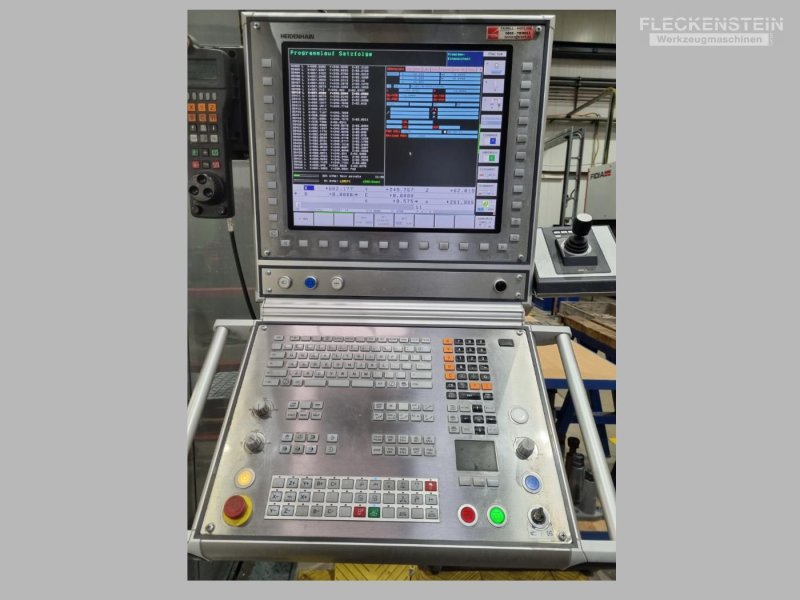

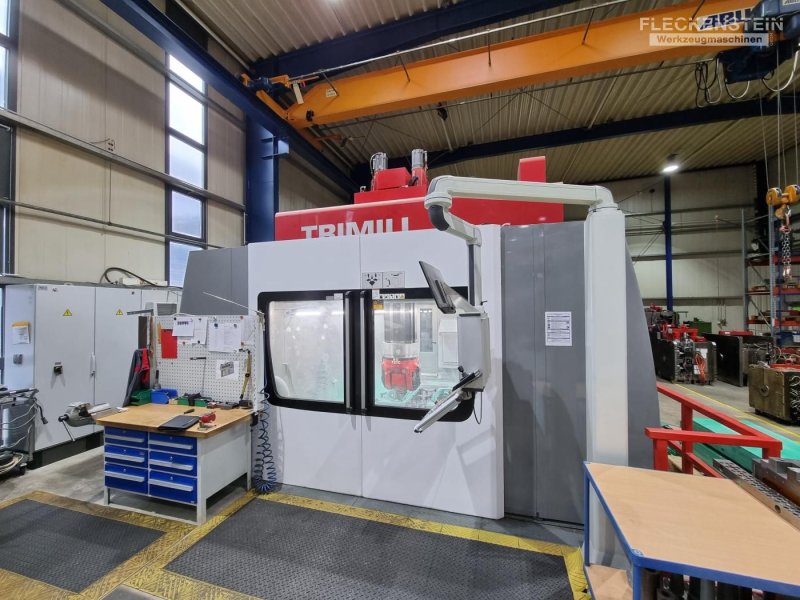

CNC Gantry type portal milling machine TRIMILL VF3016 built 2017 control HEIDENHAIN iTNC530 HSCI,
X-Y-Z-B-C axis 3,000 x 1,600 x 1,200 mm +/-100°, +/- 240 °| rapid 40,000 rpm rapid B-+ C-axis 50 r ...
CNC Gantry type portal milling machine TRIMILL VF3016 built 2017 control HEIDENHAIN iTNC530 HSCI,
X-Y-Z-B-C axis 3,000 x 1,600 x 1,200 mm +/-100°, +/- 240 °| rapid 40,000 rpm rapid B-+ C-axis 50 rpm, acceleration 4 m/s²,
table 3,500 x 1,700 mm, t-slots 27 x 22 mm H12, max work peice weight 7,000 kg/m², distance table to spindle nose 1,356 mm, ATC 50 HSKA63,

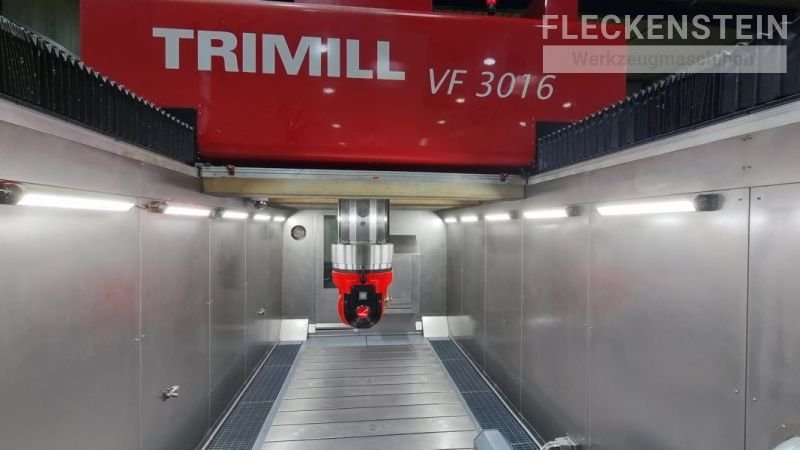

2-Axis Fork Milling Head T21C 42kW
