GOCKEL U9 500 PL 2006
- Condition: used
- published: 16/10/2025
- 25IND47582
Technical data
- Condition: used
- Year: 2006
Description

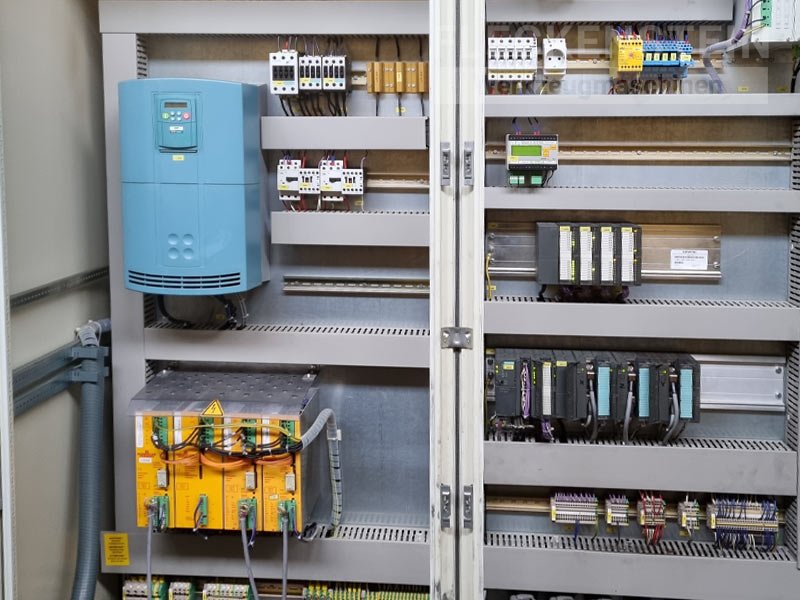

Flat and Knife Grinding Machine GOECKEL U9/500 PL, Siemens SIMATIC S7 with OP17, buit 2006
Working area:
Length magnetic table 7,080 mm
Width magnetic table 500 mm
Max. clearance height 330 mm ...
Flat and Knife Grinding Machine GOECKEL U9/500 PL, Siemens SIMATIC S7 with OP17, buit 2006
Working area:
Length magnetic table 7,080 mm
Width magnetic table 500 mm
Max. clearance height 330 mm
Grinding spindle data
Diameter grinding wheel Ø450 mm
Width of grinding wheel 100 mm
Speed range 6 – 2,100 1/min
Max. power 30 kW
Feeds:
Longitudinal travel (X-Axis) max. 30 m/min
Cross travel (Y-Axis) max. 3 m/min

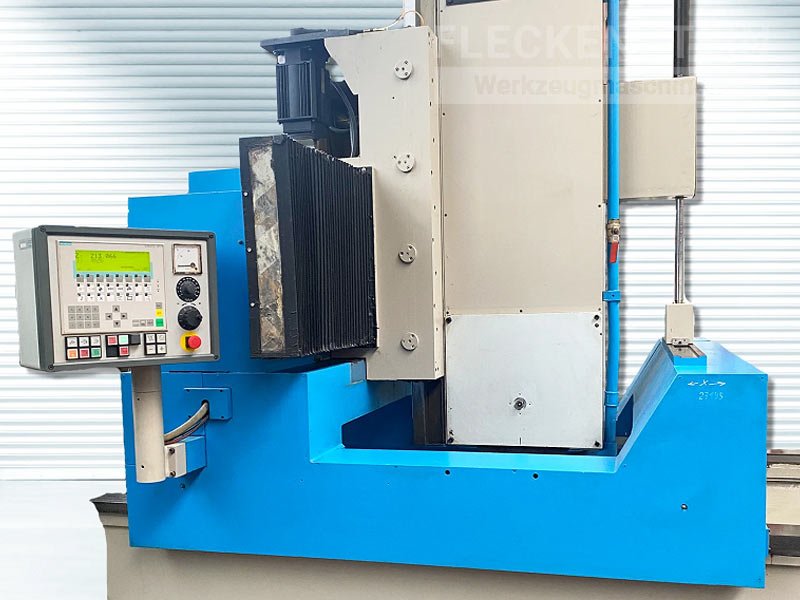

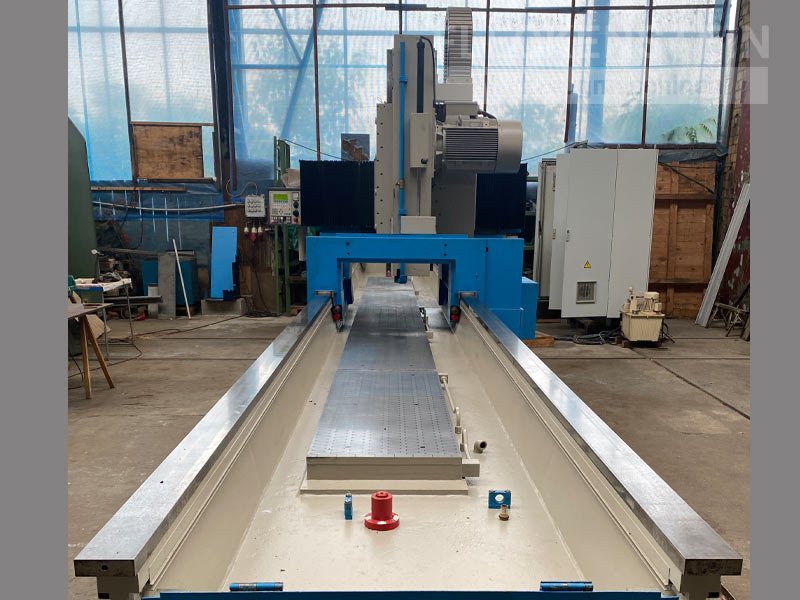

Our grinding machine from the German manufacturer Gustav Göckel is equipped with a new Simatic OP17 operating unit. The horizontal grinding spindle is mounted on a carriage. The grinding head oscillates above the stationary workpiece, enabling exceptionally high precision even with the largest workpieces. The Göckel U9 / 500 PL with its characteristic arrangement is therefore ideal for grinding long knives or other very long and demanding grinding tasks with high process reliability and precision
Revised
CE compliant
