LIEBHERR LFS 380 2008
- Condition: used
- published: 28/04/2026
- 25IND47590
Technical data
- Condition: used
- Year: 2008
Description

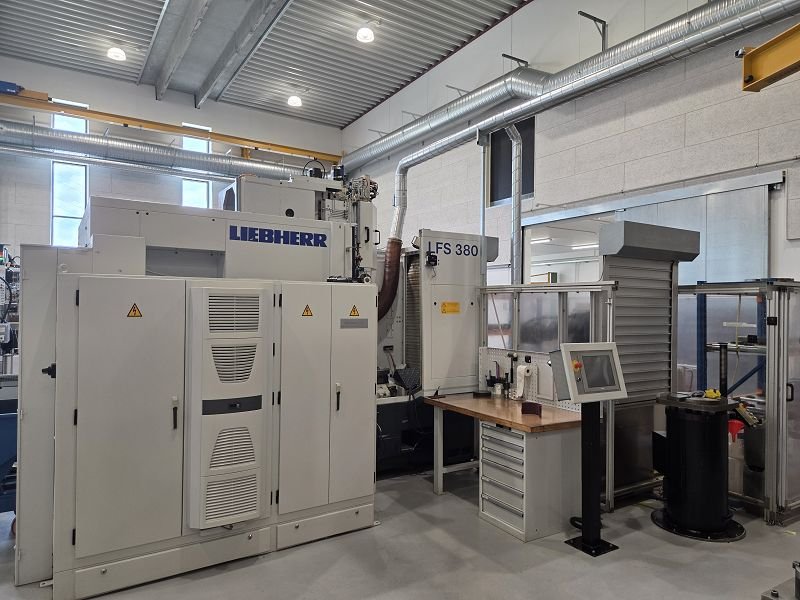

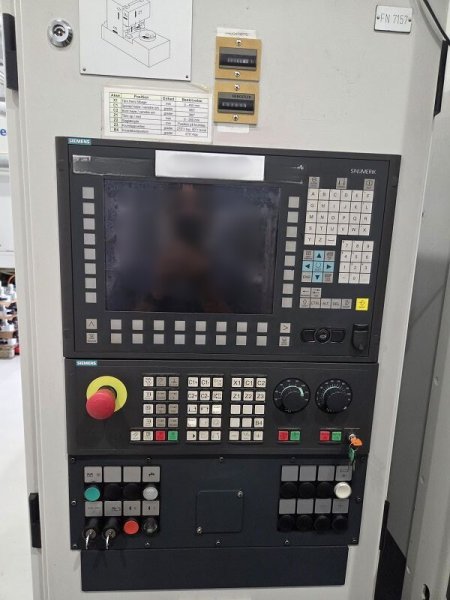

CNC – Gear Hobbing Machine LIEBHERR LFS 380 SIEMENS Sinumerik 840D, built in 2008
Gear diameter 380 mm external + internal, workpiece diameter 400 / 600 (800) external/internal (limited), gear width ...
CNC – Gear Hobbing Machine LIEBHERR LFS 380 SIEMENS Sinumerik 840D, built in 2008
Gear diameter 380 mm external + internal, workpiece diameter 400 / 600 (800) external/internal (limited), gear width 200 mm, distance between the center of the gear head and the center of the table
min./max. -50/450 mm, lifting position travel 250 mm, maximum module 6 mm, maximum axial travel 250 mm, table diameter 400 mm, centering hole diameter 200 mm,
table bore diameter 150 mm, number of slots 6 pieces, milling head 37 kW, maximum travel speed 600 DH/min, face milling head axis angle adjustment +/- 0.5°, HSK-B100,
60 mm grinding wheel holder, milling spindle diameter 110 mm
