LIEBHERR LC502 2013
- Condition: used
- published: 28/04/2026
- 25IND47603
Technical data
- Condition: used
- Year: 2013
Description

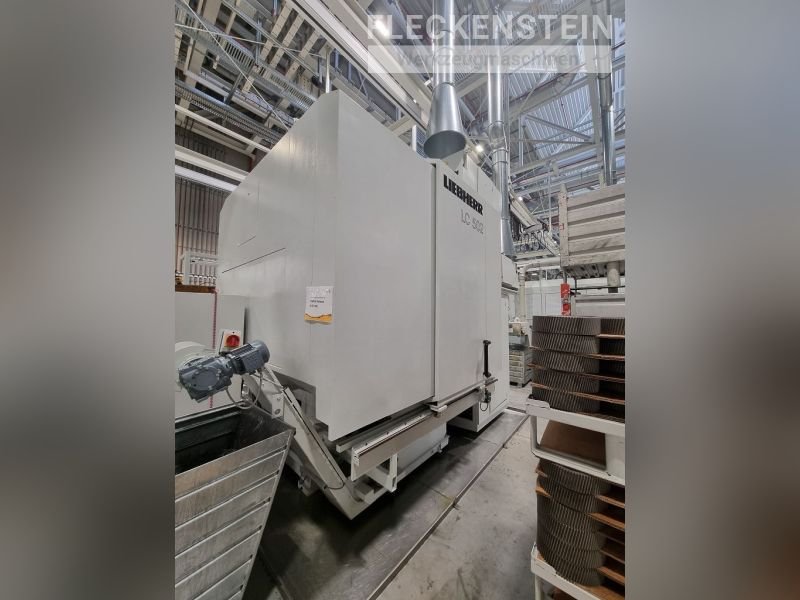

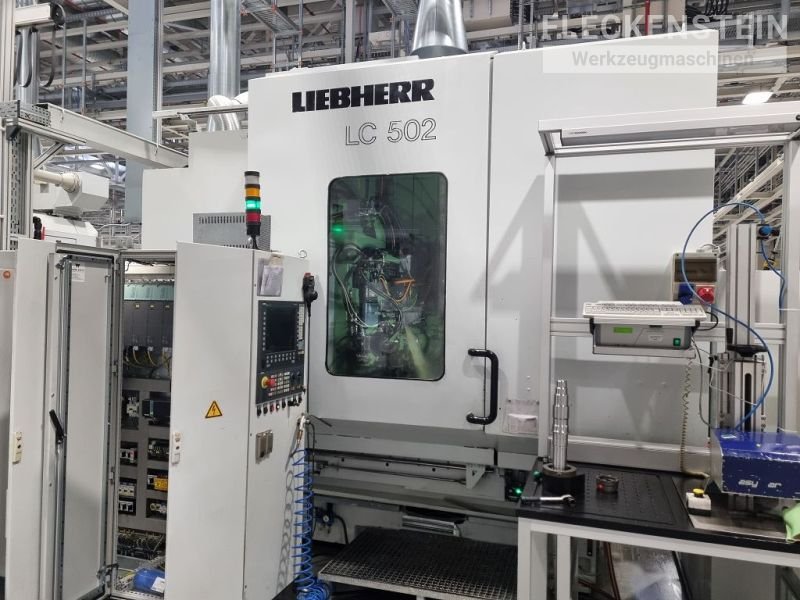

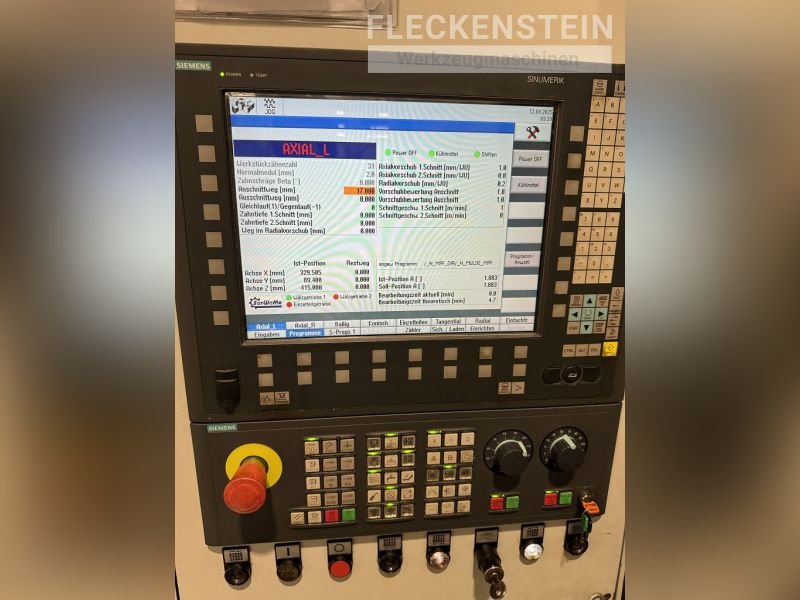

CNC – Gear Hobbing Machine, LIEBHERR LC502, SIEMENS Sinumerik 840D sl, built 2013
gear diam. 500 mm, max tothing width 400 mm, max module 20 mm, Max. Distance from table to counterholder 1.120 mm, ...
CNC – Gear Hobbing Machine, LIEBHERR LC502, SIEMENS Sinumerik 840D sl, built 2013
gear diam. 500 mm, max tothing width 400 mm, max module 20 mm, Max. Distance from table to counterholder 1.120 mm, Max. Distance from table to center of milling spindle 585 mm, min./max. center distance between milling spindle and table center 50/475 mm, table Ø 420 mm, Table bore 150 mm H7, milling spindle,
speed range 48 - 480 1/min stepless, swivel range -+/-50 °, A-axis, SK40. max cutter Ø170 mm, max cutter width 250 mm.
High-performance CNC gear hobbing machine LIEBHERR LC502, particularly suitable for spur and helical gears as well as worm gears
Revised
CE compliant
