DRGEM DIAMOND 6-A GXR-68 2018
- Condition: used
- published: 10/10/2025
- 25IND47622
Technical data
- Condition: used
- Year: 2018
Description
Description
DIAMOND X-ray System – COMPLETE WITH BARKO COMPUTER AND MONITOR - Plate Printer – Fully automatic digital X-ray system that provides high-quality images, advanced image processing, an ...
Description
DIAMOND X-ray System – COMPLETE WITH BARKO COMPUTER AND MONITOR - Plate Printer – Fully automatic digital X-ray system that provides high-quality images, advanced image processing, and a user interface, making the system easy to use and providing high-quality digital X-ray images.
Selecting an anatomical study on the imaging software automatically installs the pre-programmed X-ray generator exposure technique settings, motorized X-ray stand positioning, X-ray collimation, and spindle image processing for the selected study.

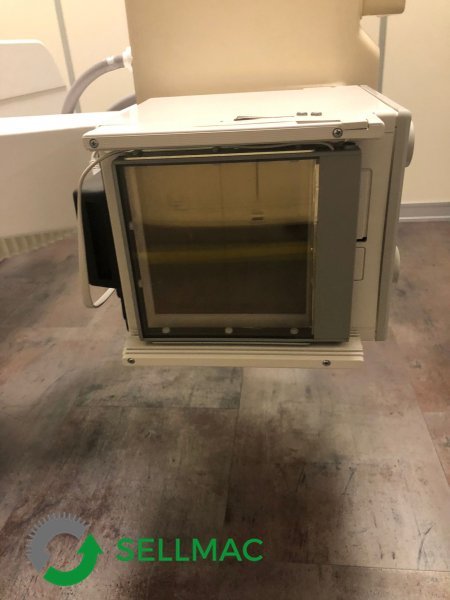

In addition, removable high-resolution grids with 100 and 180 cm (40 and 72 inch) focal distances ensure excellent image quality for every SID.
The DIAMOND X-ray system is a fully automatic digital X-ray system that provides quality images.
The system is easy to use and provides high-quality digital X-ray images. The DIAMOND system was developed specifically for small spaces.
TECHNICAL SPECIFICATIONS
High-frequency X-ray generator
Rated power
68kW
Line power supply
400/480V~, 50/60Hz Outside North America
KV range
40~150kV, 1kV step
mA range
10~800mA, 20 steps
Maximum output
800mA/85kV
640mA/kV
500mA/136kV
400mA/150kV
Timer range
0.001~10 sec, 38 steps
mAs range
0.1~500mAs
Rotor power supply
Dual speed
Reproducibility
Coefficient of variation: kV
Working
CE compliant
