GLEASON-PFAUTER P1200G 1998
- Condition: used
- published: 16/10/2025
- 25IND47721
Technical data
- Condition: used
- Year: 1998
Description

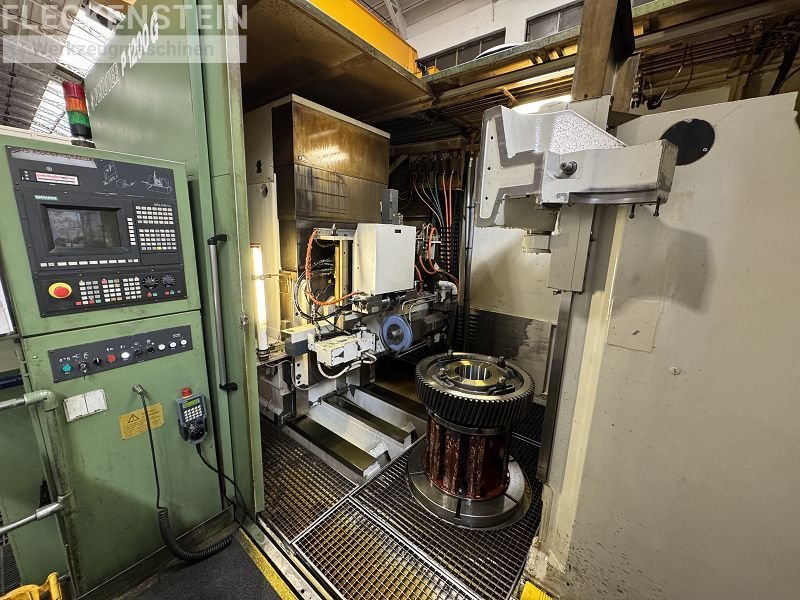

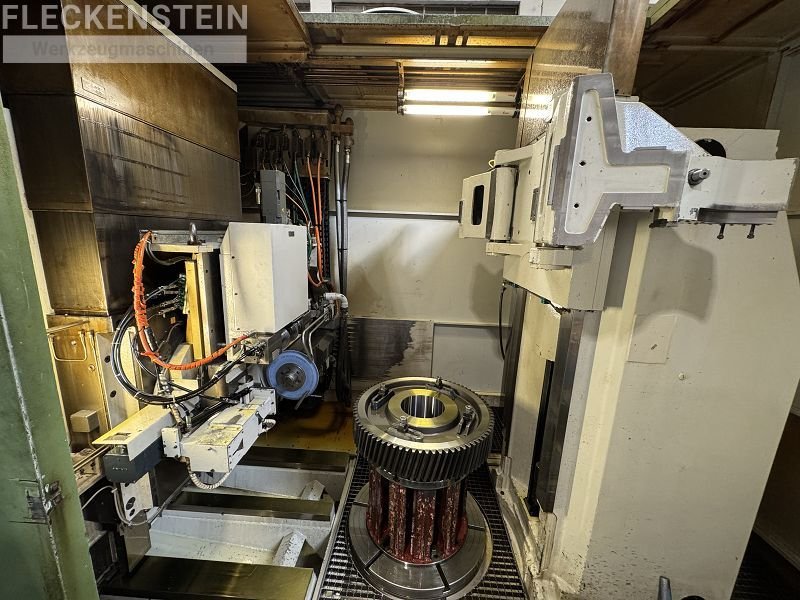

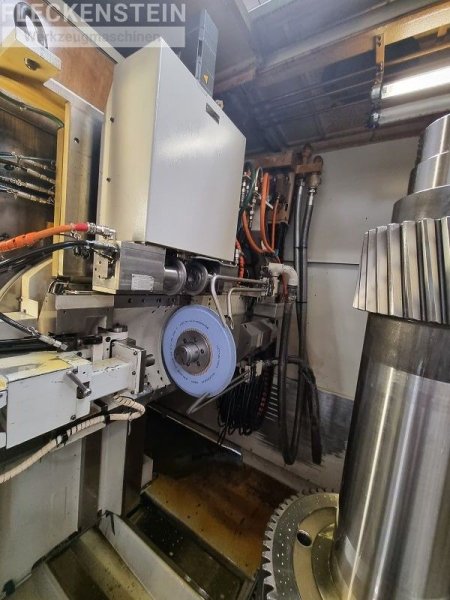

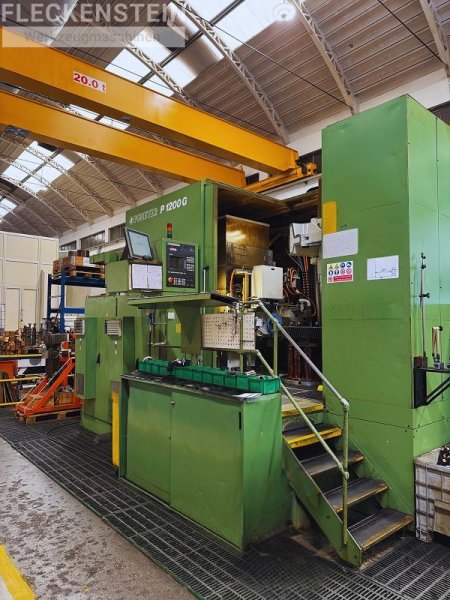

CNC profile grinding machine for spur gears GLEASON_PFAUTER P1200G, SINUMERIK 840C control, built in 1998, workpiece diameter 1200 mm, max. radial travel 770 mm,
max. tangential travel 300 mm, max. a ...
CNC profile grinding machine for spur gears GLEASON_PFAUTER P1200G, SINUMERIK 840C control, built in 1998, workpiece diameter 1200 mm, max. radial travel 770 mm,
max. tangential travel 300 mm, max. axial travel 700 mm, minimum grinding wheel position above the table 470 mm, maximum bore depth 80 mm, grinding spindle tilt angle
+/- 45 degrees, outer diameter 800 mm, bore diameter x depth Ø 300 x 900 mm, maximum table size 10 t, drive power 24 kW, grinding spindle Ø 80 mm, counter bearing,
CNC dressing unit.
CE compliant
