DMG MORI HSC20 linear 2009
- Condition: used
- published: 18/10/2025
- 25IND47761
Technical data
- Condition: used
- Year: 2009
- X-axis travel: 0/1000 mm
Description

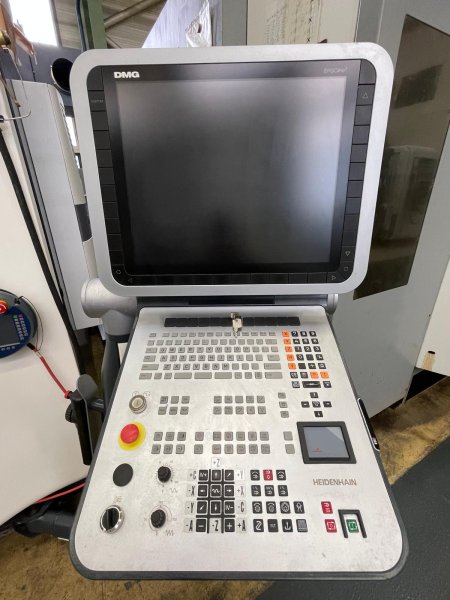

Numerical Control: HEIDENHAIN iTNC530
Axes
X-axis travel mm: 200
Y-axis travel mm: 220
Z-axis travel mm: 280
C-axis travel mm: 360°
A-axis travel mm: -15° max. 130°
Working area
Table size ...
Numerical Control: HEIDENHAIN iTNC530
Axes
X-axis travel mm: 200
Y-axis travel mm: 220
Z-axis travel mm: 280
C-axis travel mm: 360°
A-axis travel mm: -15° max. 130°
Working area
Table size mm: ø200
Maximum workpiece weight kg: 15
Spindle
Spindle rotation speed rpm: 42,000
Cooling lubricant
Through-spindle coolant bar: 40
Tool magazine
Tool holder: HSK-E32
Tool magazine positions: 60
Maximum diameter Tool diameter mm: ø50
Maximum tool length mm: 200
Chip-to-chip time s: 10
Equipment

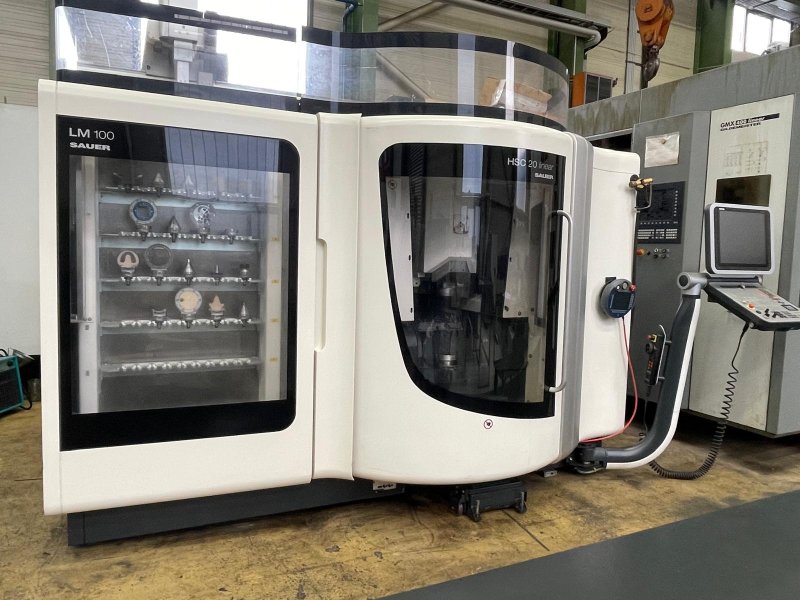

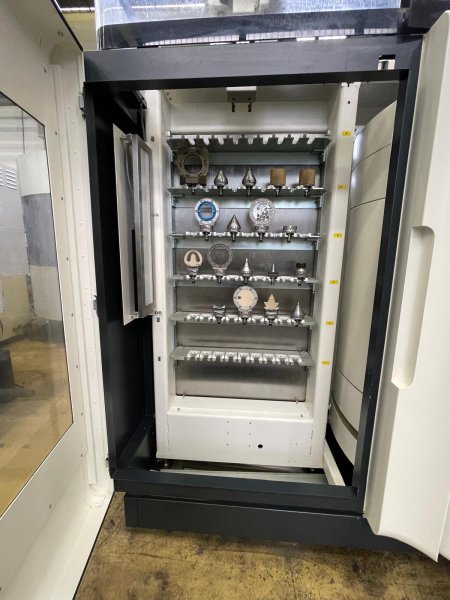

LM100 automation (EROWA ITS72, 5 levels of 9 positions); maximum handling capacity of 10 kg
Electronic handwheel
Chip conveyor
Infrared probe
High-pressure pump

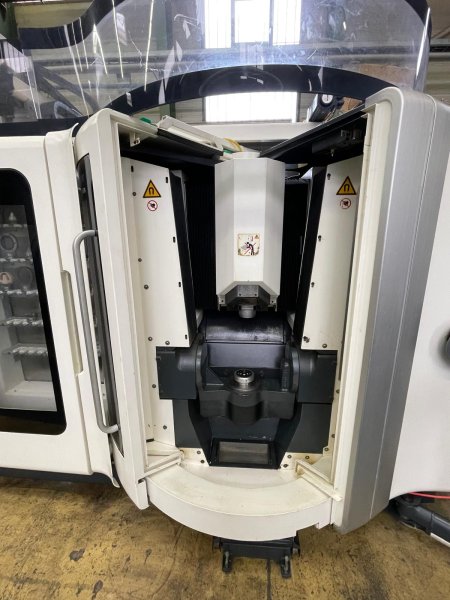

NC-controlled swivel rotary table

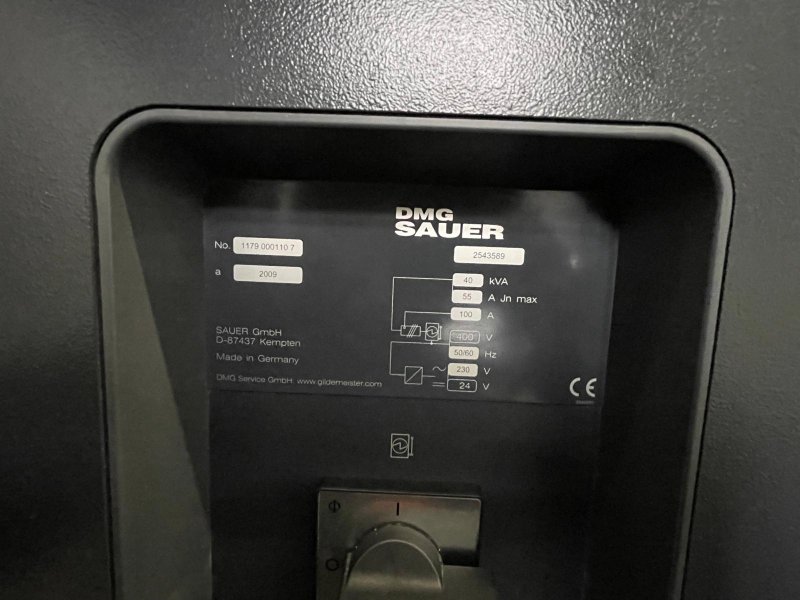

Rated power kVA: 40
