OMEGA OMEGA INFRAROSSI 2017
- Condition: used
- published: 20/10/2025
- 25IND47763
Technical data
- Condition: used
- Year: 2017
Description

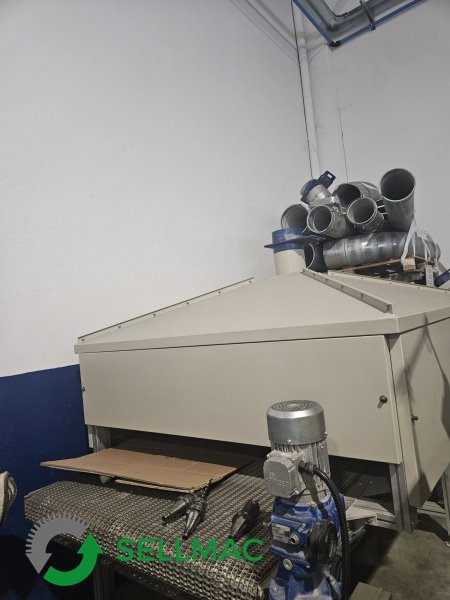

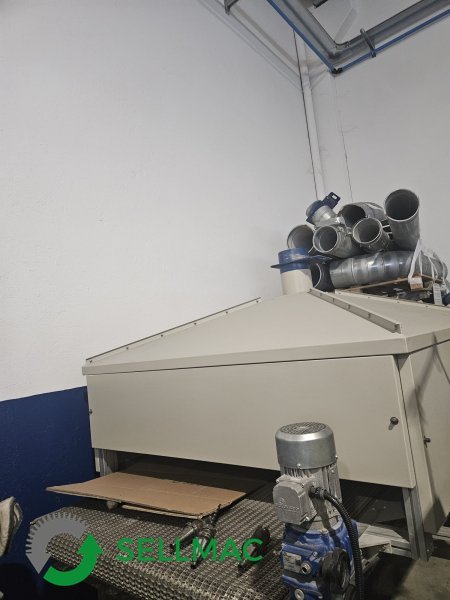

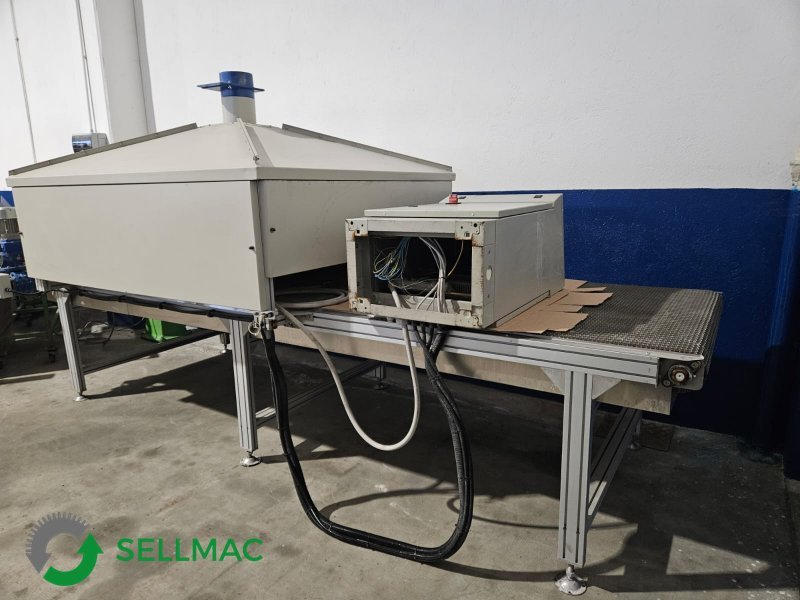

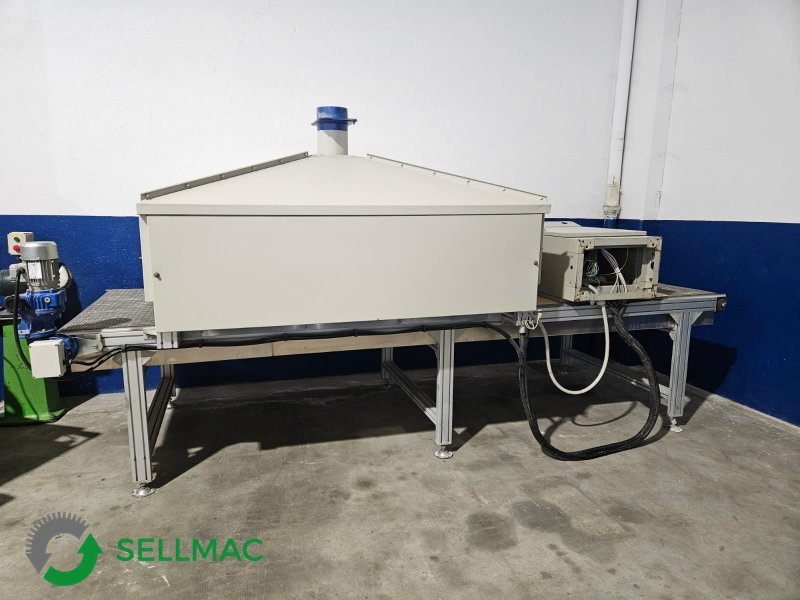

INFRARED DRYER BRAND OMEGA SRL
Year 2017
Manufacturer OMEGA – OFFICINA MECCANICA GAZZANI
Model OMEGA INFRARED
FEATURES
DIMENSIONS
Maximum belt/passage width: 600/700 mm
Belt speed adjustment: Manual ...
INFRARED DRYER BRAND OMEGA SRL
Year 2017
Manufacturer OMEGA – OFFICINA MECCANICA GAZZANI
Model OMEGA INFRARED
FEATURES
DIMENSIONS
Maximum belt/passage width: 600/700 mm
Belt speed adjustment: Manual
Belt speed: 0.8-10 m/min
ELECTRICITY
Maximum current Prospective short circuit current at the installation point (rms value) kA 10
Power supply 3-phase + PE
Sinusoidal supply voltage according to CEI-IEC 400V – 50 Hz
Tolerance from nominal value +/- 5%
Tolerance for voltage fluctuations during operation +/- 2%
Frequency tolerance from normal +/- 2%
Electrical power of single heater module kW 4.0
Electrical power of towing motor kW 0.55
Total installed electrical power kW 16.55
Minimum power cable cross-section mm² 16
All technical data shown are indicative and may be changed without notice and therefore should not be considered binding.
Working
CE compliant
