OMEGA PM WASH AIR 2017
- Condition: used
- published: 20/10/2025
- 25IND47764
Technical data
- Condition: used
- Year: 2017
Description

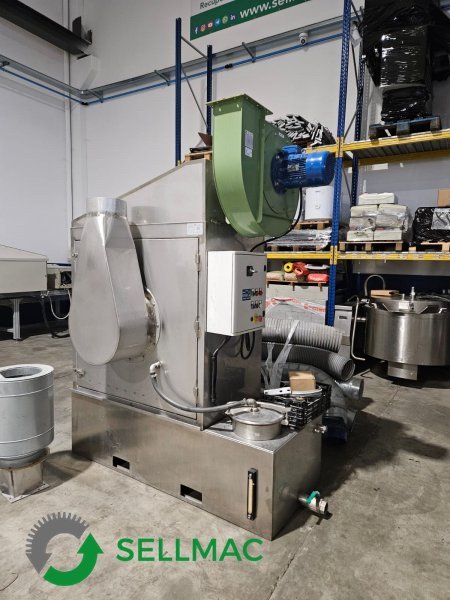

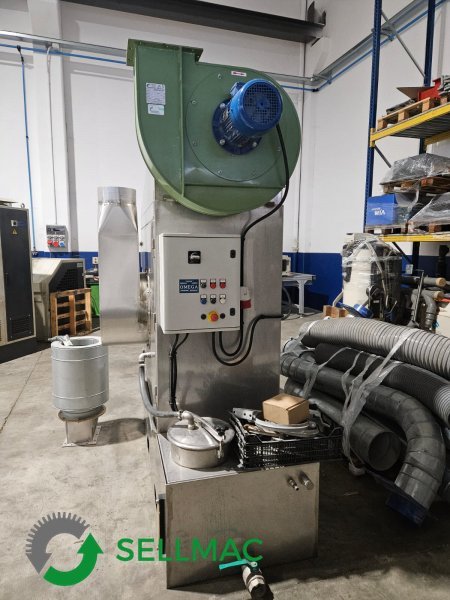

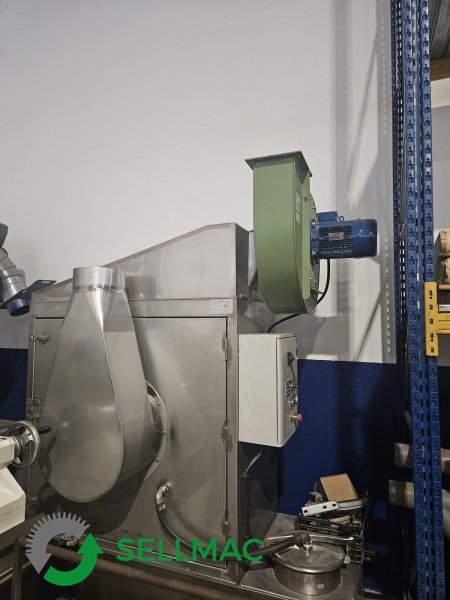

OMEGA SRL BRAND VACUUM CLEANER MOD. PM WASH AIR
Year 2017
Manufacturer OMEGA OFFICINA MECCANICA GAZZANI
Model PM WASH AIR
Dimensions
Length 1800 mm
Height 2160 mm
Depth 750 mm
Weight
Total empty ...
OMEGA SRL BRAND VACUUM CLEANER MOD. PM WASH AIR
Year 2017
Manufacturer OMEGA OFFICINA MECCANICA GAZZANI
Model PM WASH AIR
Dimensions
Length 1800 mm
Height 2160 mm
Depth 750 mm
Weight
Total empty weight 450 kg
Total with filter mixture charge 570 kg
Power supply
Maximum prospective short-circuit current at the installation point (rms value) 10 kA
Power supply 3ph+n+pe
Sinusoidal supply voltage according to CEI-IEC 400 V – 50 Hz
Tolerance with respect to the nominal value ± 5%
Frequency value tolerance with respect to the nominal value ± 2%
Basket motor electric power kW 0.37
Electric power Fan motor kW 2.2
Pump motor electrical power kW 0.55
Total installed electrical power kW 3.12
Minimum power cable cross-section mm² 2.5
Water supply network
Minimum operating pressure of water supply network Bar 1
Water supply network flow rate m³/h 1
Internal diameter of water supply pipe mm 15
Internal diameter of overflow drain pipe mm 25
Internal diameter of base drain pipe mm 50
Dehumidified and dried compressed air network (if dust filter installed)
Minimum operating pressure of compressed air network Bar 6-8
Pressure reducer setting Bar 3-4
Operating characteristics
Drum speed (motor 1400 rpm + 1/50 reducer) rpm 28
Fan speed adjustment via potentiometer and Inverter
Fan flow rate (min – max) mᶟ/h 1750÷5000
Maximum flow rate of submersible pump l/min 140
Initial fill quantity for the filter mixture of water and colloidal solution 120÷130 l
Percentage of water in the filter mixture: Variable percentage (Par. 1.3.4)
Water consumption: Variable mᶟ/h (Par. 1.3.4)
Percentage of colloidal solution in the filter mixture: Variable (Par. 1.3.4)
Colloidal solution consumption: Variable mᶟ/h (Par. 1.3.4)
All technical data shown is indicative and may be changed without notice; therefore, it should not be considered binding.
