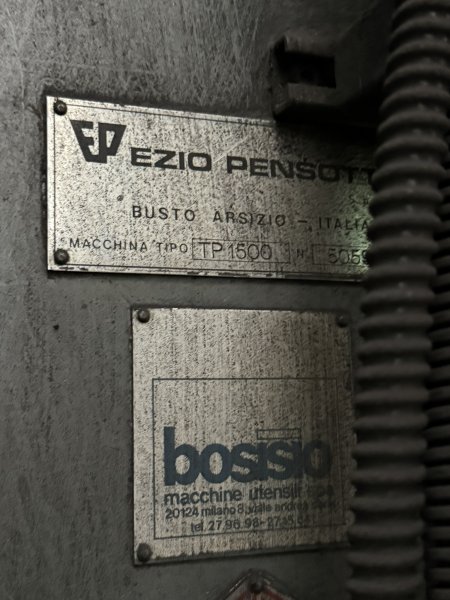

PENSOTTI TP 1500 CNC
- Condition: used
- published: 22/10/2025
- 25IND47834
Technical data
- Condition: used
- Year: undefined
- Max working diameter : 1001/2000 mm
- Max working height : 1001/2000 mm
Description

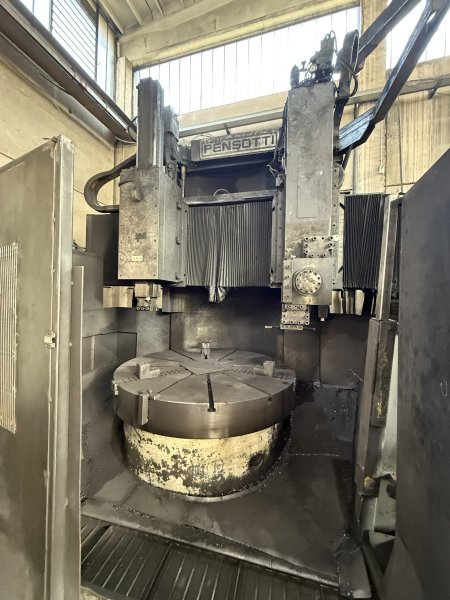

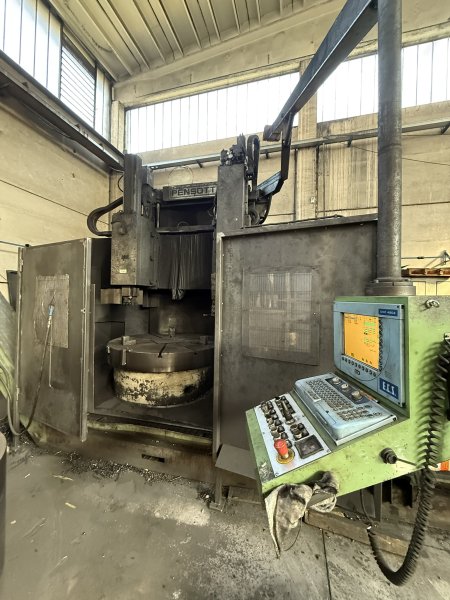

PENSOTTI TP 1500 CNC VERTICAL LATHE

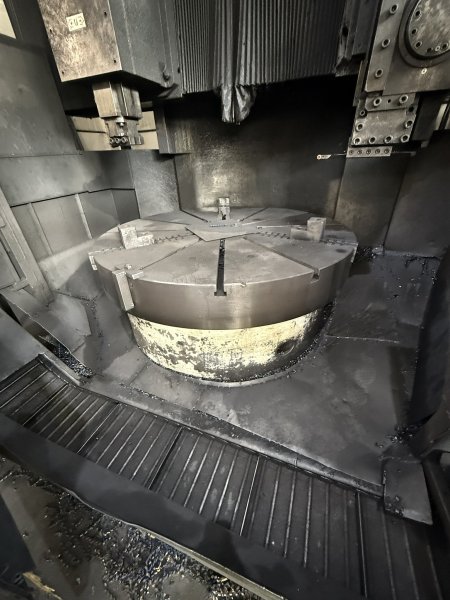

Table diameter: 1,500 mm
Maximum turning diameter: 1,800 mm
Maximum turning height: 1,200 mm
Clearance under crossbeam: 1,370 mm
Table load capacity: 14,000 kg
Tabl ...
PENSOTTI TP 1500 CNC VERTICAL LATHE
Table diameter: 1,500 mm
Maximum turning diameter: 1,800 mm
Maximum turning height: 1,200 mm
Clearance under crossbeam: 1,370 mm
Table load capacity: 14,000 kg

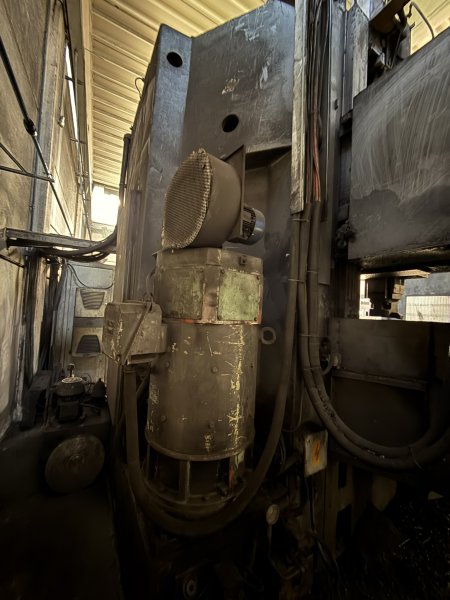

Table motor power: 44 kW
Table rotation speed: 2.6 ÷ 260 rpm
1 CNC vertical slide with ram:
- vertical travel: 1,000 mm
1 CNC vertical slide with automatic square turret:
- vertical travel: 750 mm

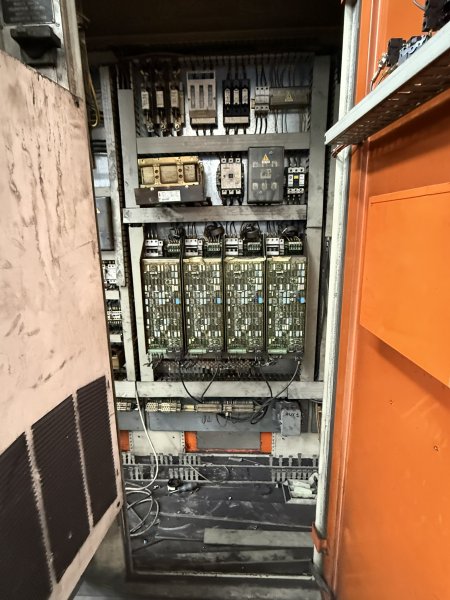

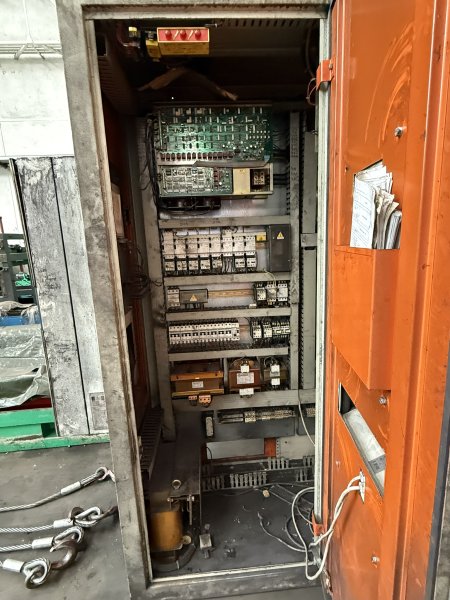

ECS 4802 CNC
Total weight: 22 tons
Reconditioned in 1998
