HYUNDAI MODELLO HI 5A-S COMPLETO DI MANIPOLATORE HS220
- Condition: used
- published: 23/10/2025
- 25IND47864
Technical data
- Condition: used
- Year: undefined
Description

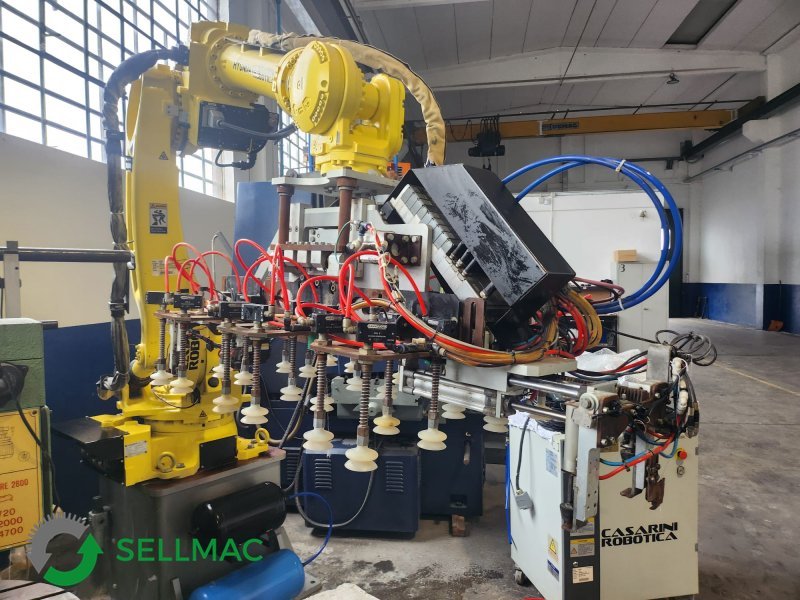

HYUNDAI ROBOT MODEL HI 5A-S COMPLETE WITH HS220 MANIPULATOR
HYUNDAI ROBOT MANIPULATOR COMPRISING:
HYUNDAI ROBOT MODEL HI 5A-S
Year 2018
Manufacturer HYUNDAI
Model Hi 5a-S
FEATURES
Name Hi5a-S
O ...
HYUNDAI ROBOT MODEL HI 5A-S COMPLETE WITH HS220 MANIPULATOR
HYUNDAI ROBOT MANIPULATOR COMPRISING:
HYUNDAI ROBOT MODEL HI 5A-S
Year 2018
Manufacturer HYUNDAI
Model Hi 5a-S
FEATURES
Name Hi5a-S
Operations Programming and Playback
Interpolations Point-to-Point, Linear, Circular
Number of Controlled Axes 16 Simultaneous
Position Control Serial Absolute Encoder
Program Backup Memory USB or Ethernet
Servo System Full Digital Servo
Digital I/O Native Devicenet
Interface 2 x Ethernet
2 x RS232/RS422
1 x USB
1 x CAN (Optional)
1 x Devicenet Master
1 x SD Card
Dimensions: 700x900x630 mm

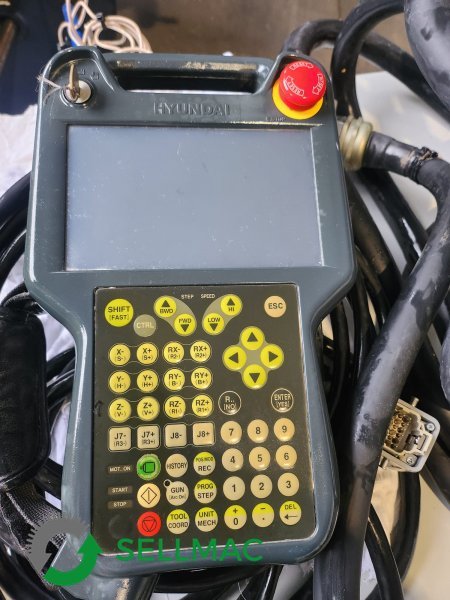

Control Panel: Model TP520
Operating System: Windows CE
Display: 7" Color TFT-LCD Touch Panel

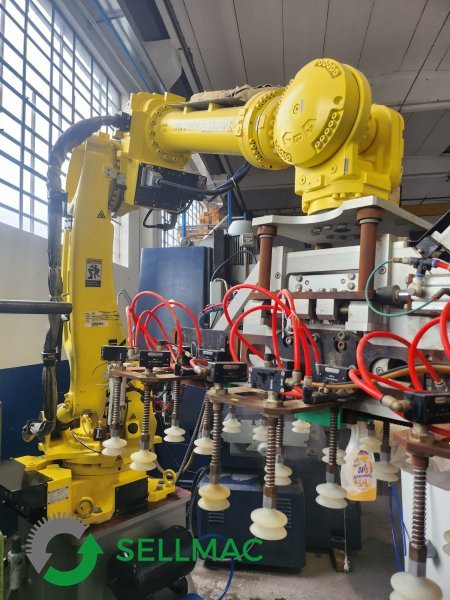

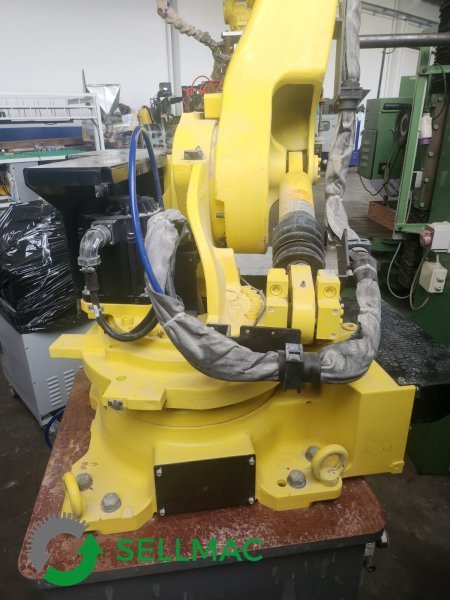

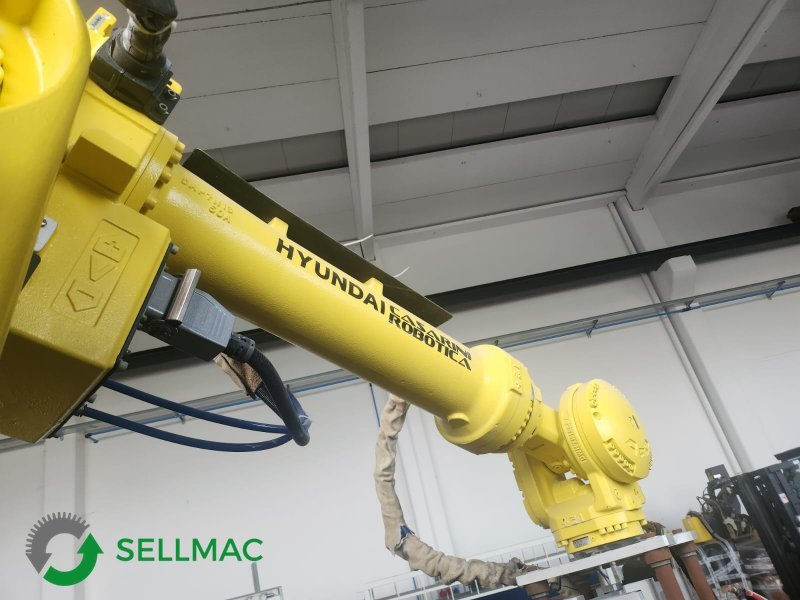

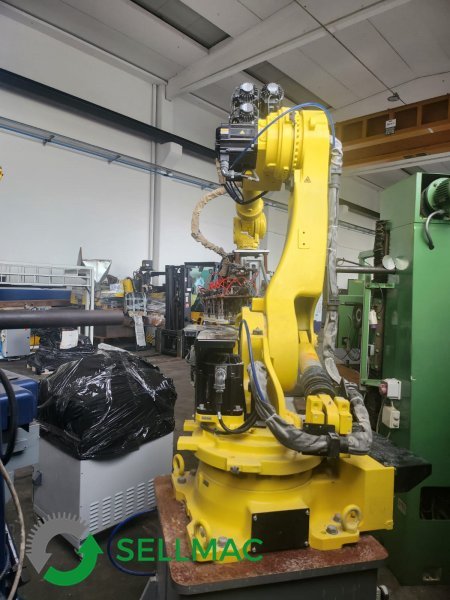

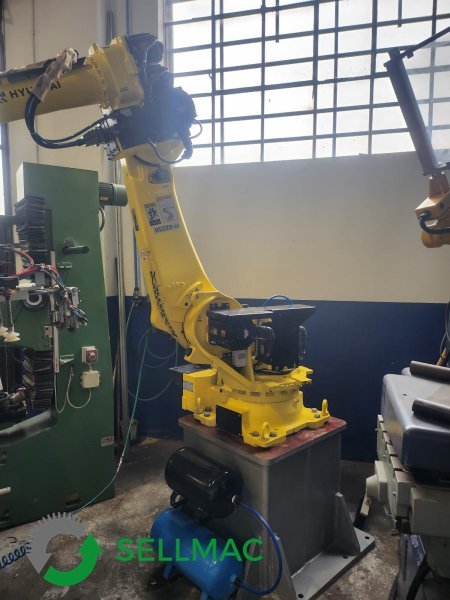

Manipulator: HS220
Year: 2018
Manufacturer: HYUNDAI
Model: HS 220
FEATURES
Number of axes: 6 articulated
Working radius: 2,666 mm
Wrist load: 220 kg
Brakes on 6 axes
Repeatability: +/- 0.06 mm
COMPLETE SYSTEM WITH:

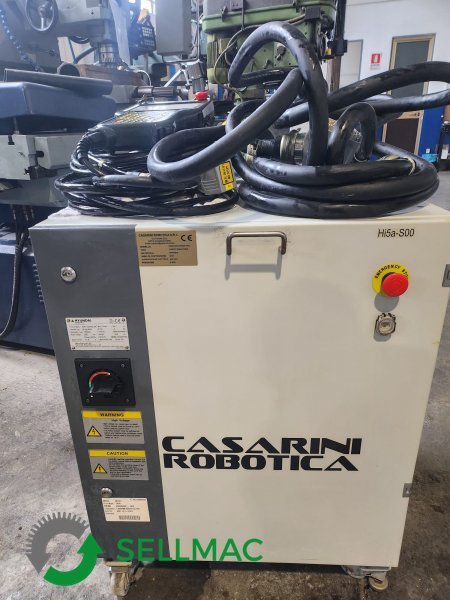

Control cabinet: Model Hi5a-S
5 m robot-controller connection cables
7 m teach pendant cable
Basic operating system
Support platform Robot
Robot base with machined worktop, designed for floor mounting.

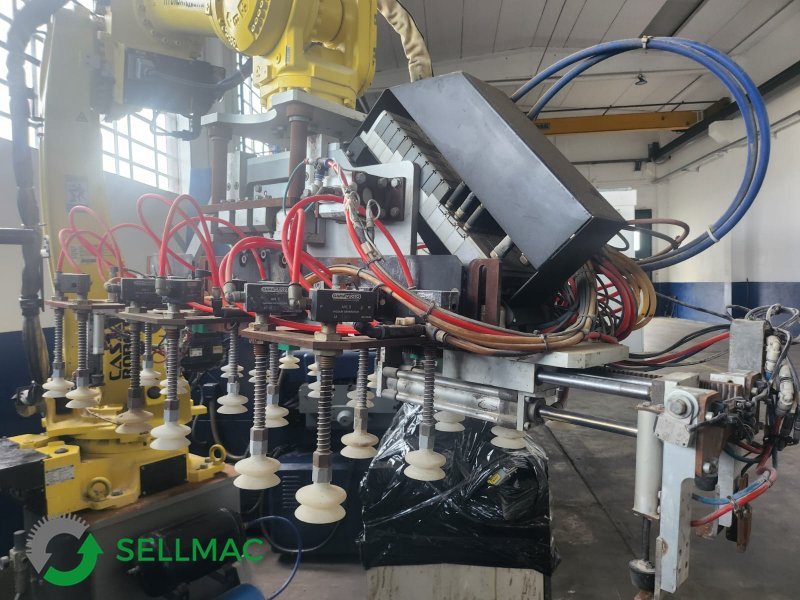

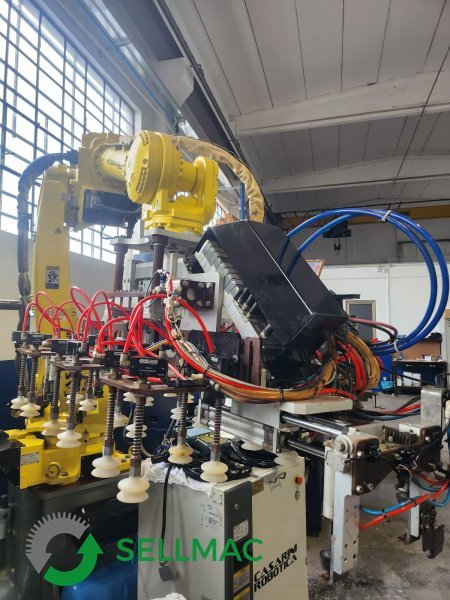

Special robot gripper
Gripper composed of spring-loaded suction cups and an independent vacuum generator. The gripper must have two integrated "claws" capable of picking up trays once the workpieces are finished.
Cyber-physical systems for Industry 4.0
Remote monitoring and tele-assistance system integrated with an industrial PC. Pro face system for monitoring and managing the following signals: recipe recall, production batch monitoring with piece counting. The system meets the requirements for integration into your industrial management information system.
Machine supplied with manuals and CE Declaration of Conformity.
All technical data shown is indicative and subject to change without notice; therefore, it should not be considered binding.
Working
Under warranty
