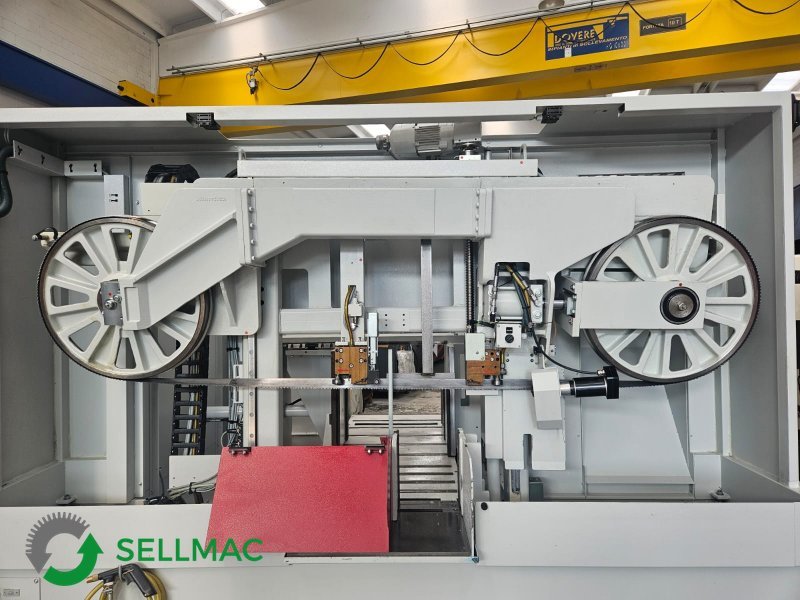

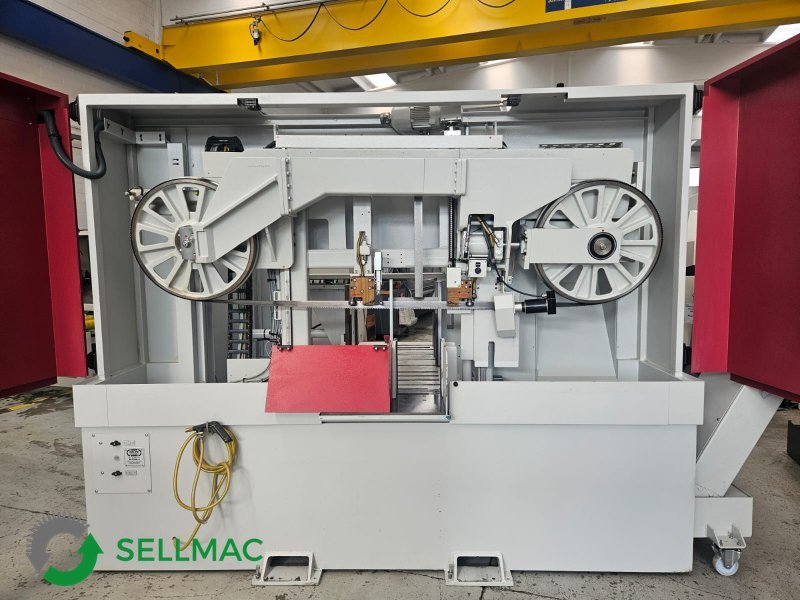

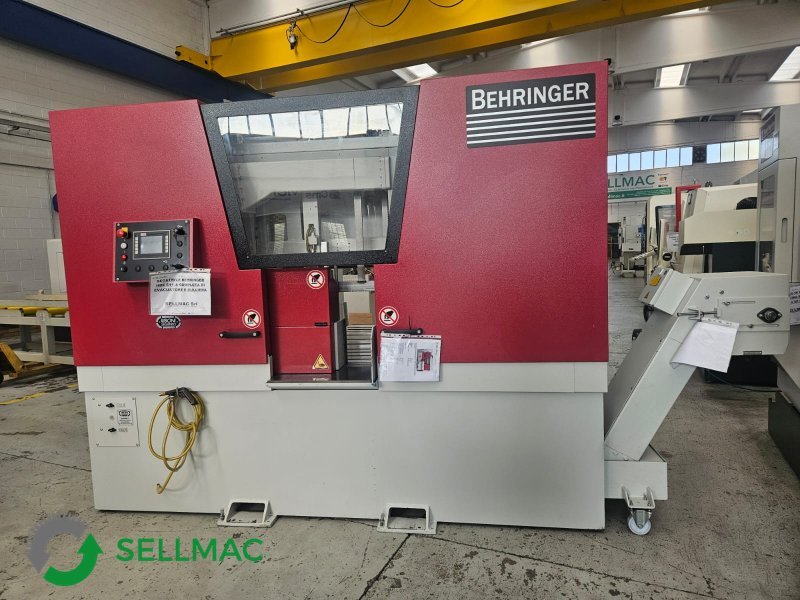

BEHRINGER HBE 511 A 2018
- Condition: used
- published: 04/02/2026
- 25IND47867
Technical data
- Condition: used
- Year: 2018
Description
Cutting capacity Ø mm 510/510 x 510
Min. material size Ø mm 10/10 x 8
Min. material length 10 mm
Automatic cutting length 80 mm
Manual cutting length 10 mm
Cutting speed 15 – 150 m/min
Coolant qua ...
Cutting capacity Ø mm 510/510 x 510
Min. material size Ø mm 10/10 x 8
Min. material length 10 mm
Automatic cutting length 80 mm
Manual cutting length 10 mm
Cutting speed 15 – 150 m/min
Coolant quantity 90 l
Blade tensioning system pressure 60 bar
Blade motor power 5.2 kW
Hydraulic pump power 0.75 kW
Coolant pump power 0.15 kW
Chip conveyor motor power 0.26 kW
Operating electrical power 14.5 kW approx.
Power supply 400 V – 50 Hz
Hydraulic valve voltage 24 V (DC)
Power consumption 26 A approx.
Fuse rating: 35 A
Power cable min. 10 mm²
Worktop height: 800 mm

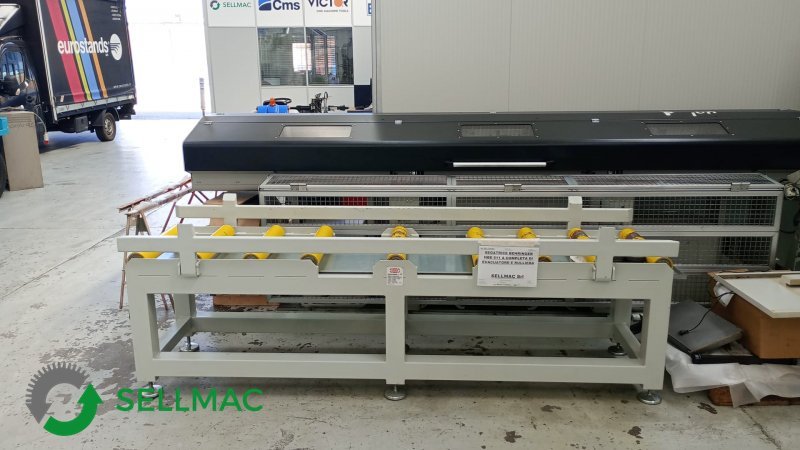

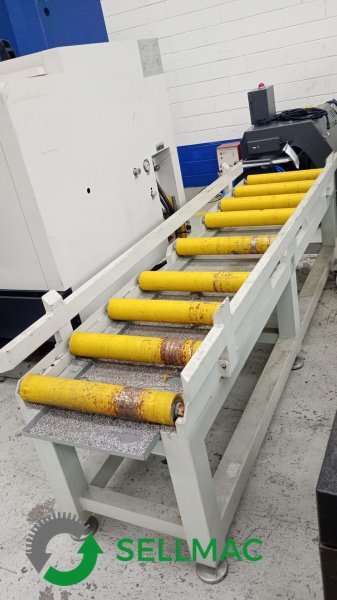

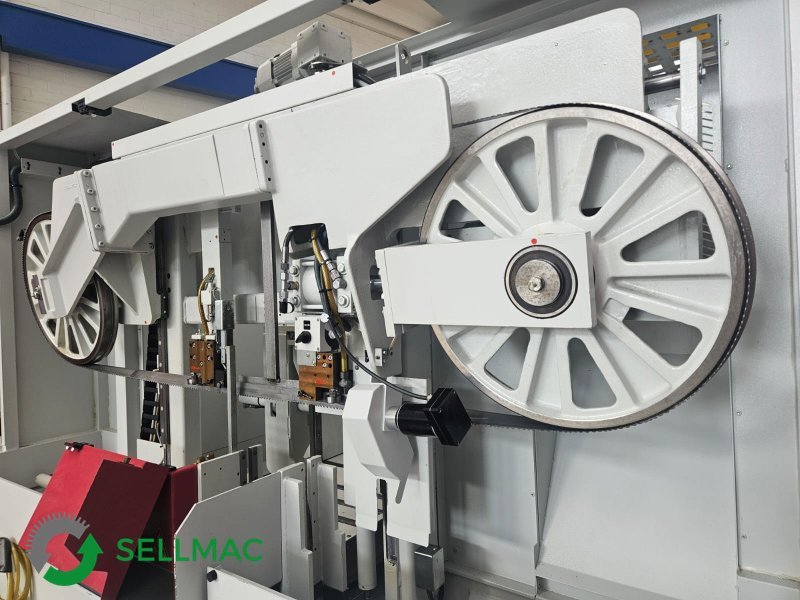

Sawing machine complete with roller conveyor and conveyor
Machine supplied with manuals and CE declaration.
All technical data shown is indicative and subject to change without notice; therefore, it should not be considered binding.
Working
CE compliant
