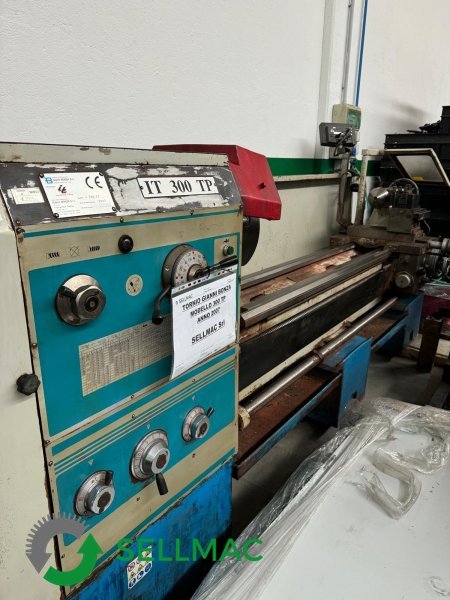

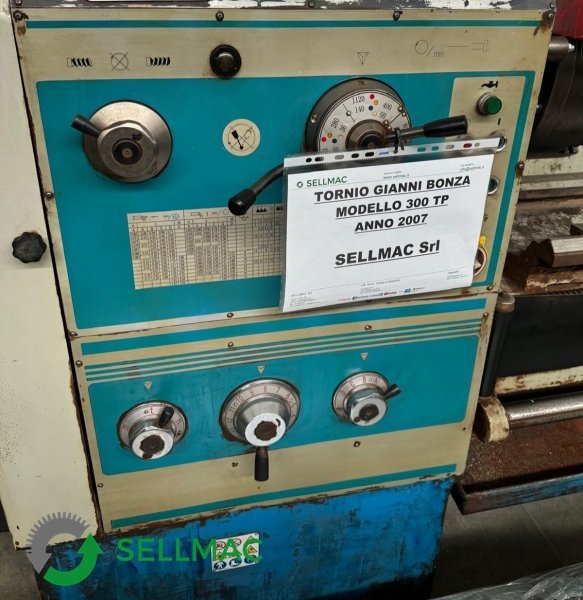

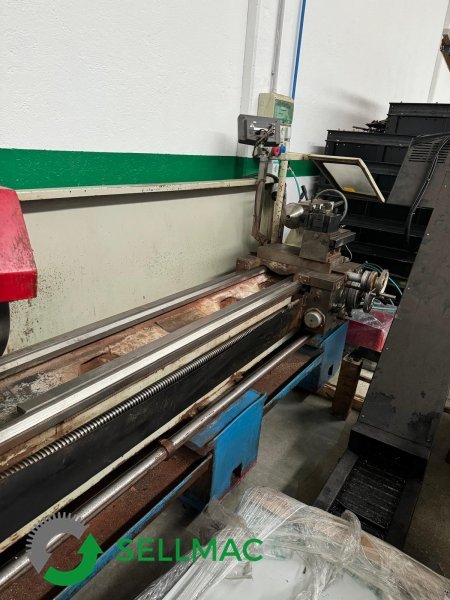

GIANNI BONZA 300 TP 2007
- Condition: used
- published: 23/10/2025
- 25IND47870
Technical data
- Condition: used
- Year: 2007
Description
Capacity
Height of centers above the bed: 300 mm
Maximum turning diameter above the carriage: 420 mm
Maximum turning diameter above the bed: 600 mm
Maximum turning diameter Turning range in the pocket ...
Capacity
Height of centers above the bed: 300 mm
Maximum turning diameter above the carriage: 420 mm
Maximum turning diameter above the bed: 600 mm
Maximum turning diameter Turning range in the pocket 870 mm
Distance between centers 2000 mm
Head
Spindle speed 12
Revolutions per minute 36-1600 rpm
Spindle bore diameter 105 mm
Spindle connection CAM-LOCK D1 mm 300 mm
Tailstock
Quill diameter 75 mm
Useful quill stroke 150 mm
Tapered quill bore Morse taper 5 mm
Carriage
Transverse travel 310 mm
Tool carriage travel 145 mm
Screw pitch 12 mm
Maximum tool cross-section 25 x 25 mm
Feeds
Longitudinal metric mm/rev 0.063 ÷ 2.52
Transverse metric mm/rev 0.027 ÷ 1.07
Threads
Metric mm No. 22 1 ÷ 14
Withworth threads/inch No. 25 2 ÷ 20
Module pitch No. 18 0.5 ÷ 7
Diametric pitch No. 24 4 ÷ 56
Motors
Spindle motor (three-phase) 7.5 kW
Electric pump motor (three-phase) 0.17 kW
Working
