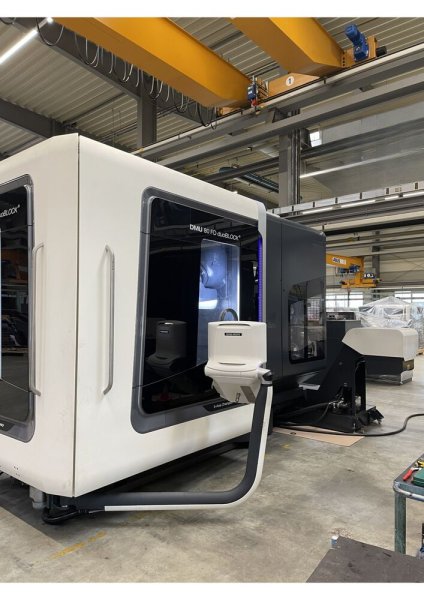

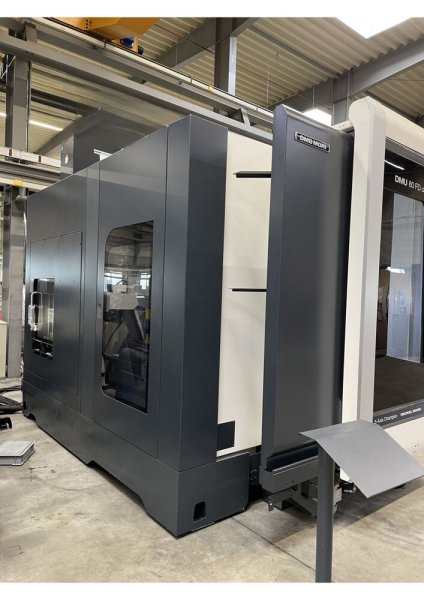

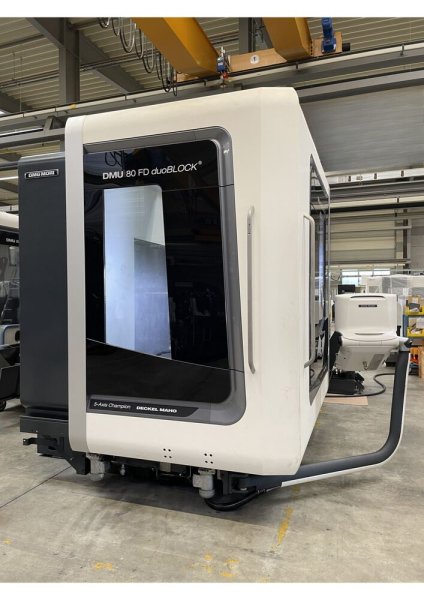

DMG MORI DMU 80 FD duoBLOCK 2015
- Condition: used
- published: 30/10/2025
- 25IND47972
Technical data
- Condition: used
- Year: 2015
- X-axis travel: 0/1000 mm
Description

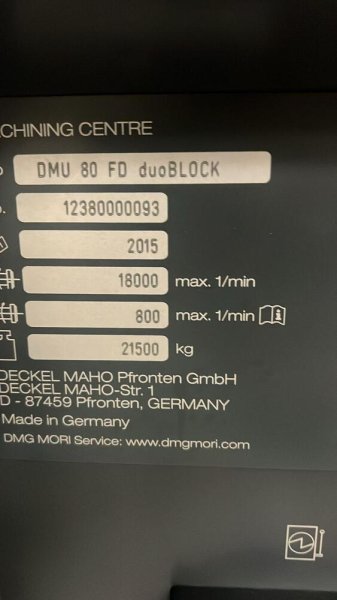

Year of manufacture: 2015
Numerical control: 3D-Control Siemens 840D
Axes
X-axis travel mm: 800
Y-axis travel mm: 1050
Z-axis travel mm: 850
C-axis angle: 360º (0.001)
B-axis angle: -30/180ª
Feed m/ ...
Year of manufacture: 2015
Numerical control: 3D-Control Siemens 840D
Axes
X-axis travel mm: 800
Y-axis travel mm: 1050
Z-axis travel mm: 850
C-axis angle: 360º (0.001)
B-axis angle: -30/180ª
Feed m/min: 60
Rapid feed m/min: 60
Axis acceleration m/s2: 7
NC milling/turning table:
Number of pallets: 1
Table size mm: Ø800
Maximum workpiece size mm: Ø900x1300
Maximum workpiece weight kg: 1300
Table rotation speed rpm: 800

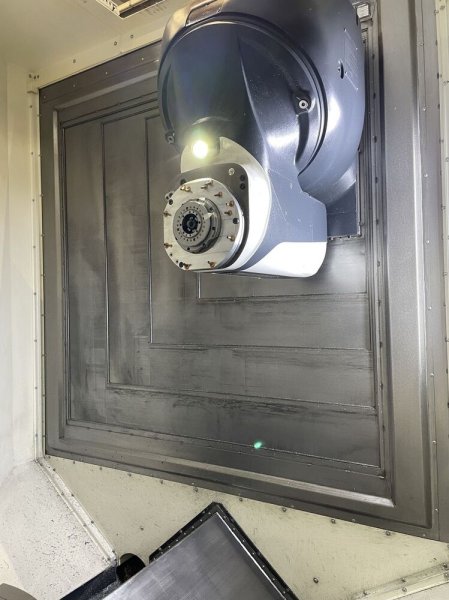

Spindle
Spindle rotation speed rpm: 18000
Spindle power kW: 35/24 (40% ED/cont)
Maximum torque Nm: 111/77
Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 600

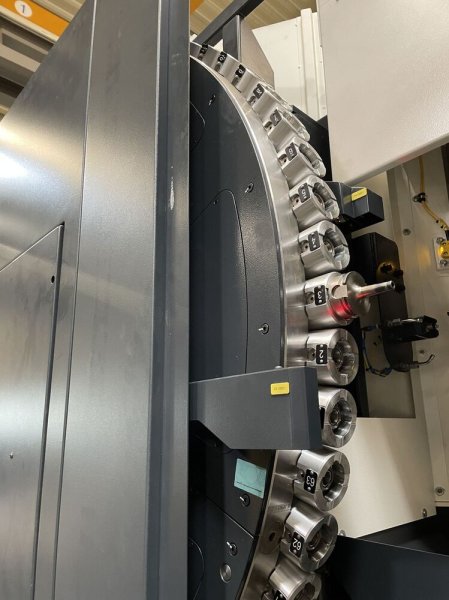

Tool magazine
Tool holder HSK-A 63
Tool magazine positions 63
Double gripper tool changer
With adjacent tool positions free mm: 120
With adjacent tool positions occupied mm: 80
Maximum tool length mm: 650
Maximum tool weight kg: 15
Tool change time, chip-to-chip s: 4.2
Equipment
Electronic handwheel
Chip conveyor
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Tool integrity check

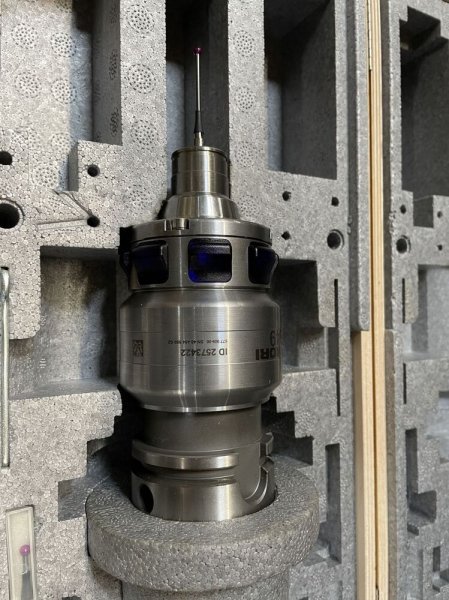

Laser diameter and length measurement Tool
4th axis

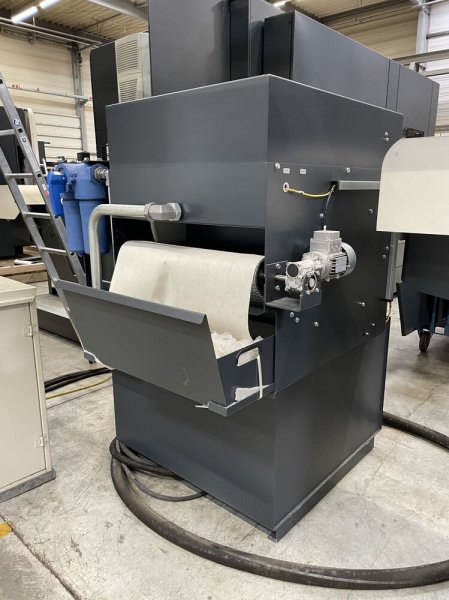

Paper belt filter

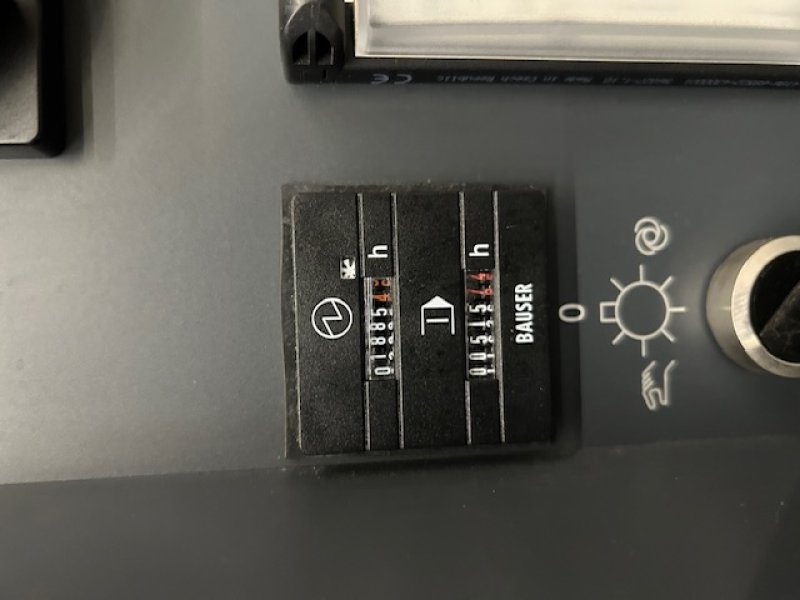

Working time
Powered: 1885
Spindle operating: 515
Main machine dimensions / weight
Length mm: 5534
Width mm: 3427
Height mm: 3665
Weight kg: 21500
