MORANDO 3 PR 7
- Condition: used
- published: 28/11/2025
- 25IND47981
Technical data
- Condition: used
- Year: undefined
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

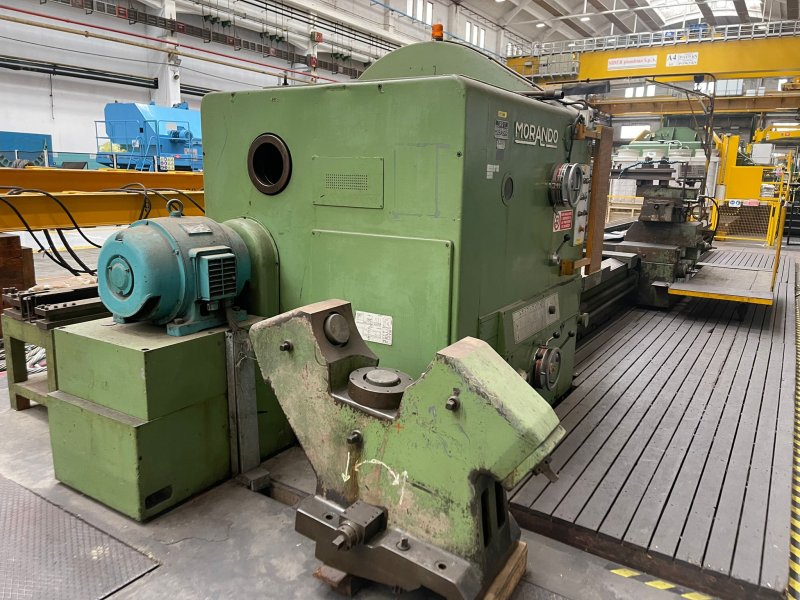

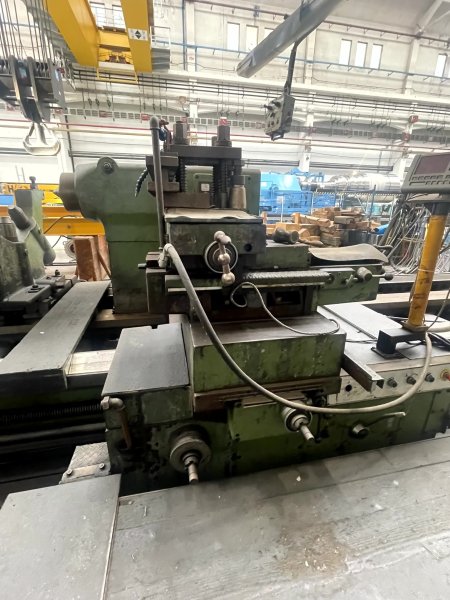

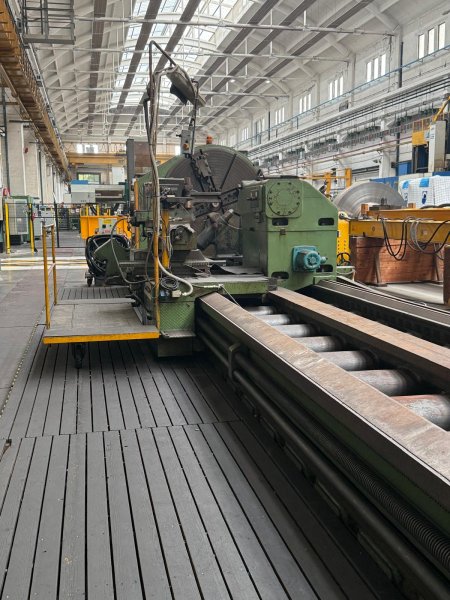

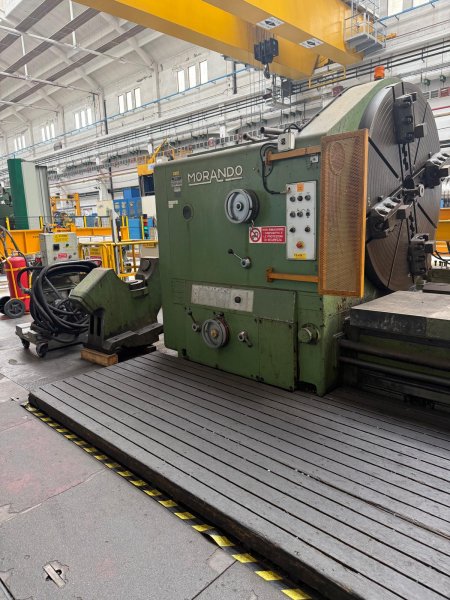

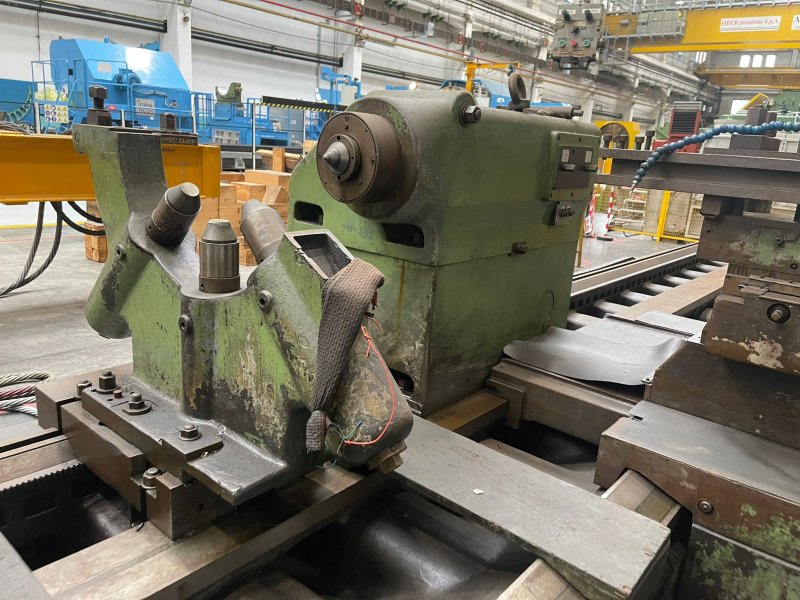

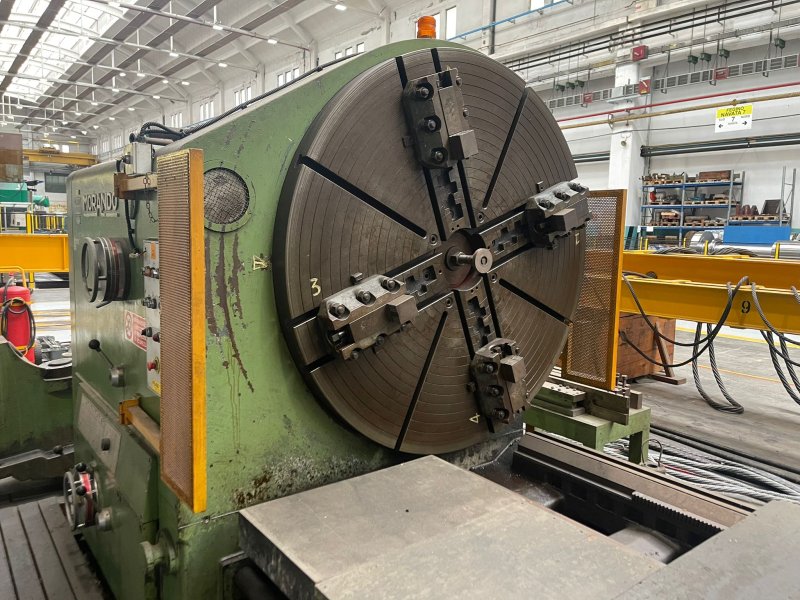

MORANDO 3 PR 7 THREE-SIDED PARALLEL LATHE
Height of centers 860 mm
Distance between centers 8,000 mm
Max. Ø over bed 1,700 mm
Max. Ø over carriage 1,450 mm
Platform Ø 1,650 mm
Bed width 1,500 ...
MORANDO 3 PR 7 THREE-SIDED PARALLEL LATHE
Height of centers 860 mm
Distance between centers 8,000 mm
Max. Ø over bed 1,700 mm
Max. Ø over carriage 1,450 mm
Platform Ø 1,650 mm
Bed width 1,500 mm
Load capacity between centers 25,000 kg
Spindle motor power 65 hp
Spindle speed - No. 24; 1.1 - 220 rpm
Tailstock quill Ø 260 mm
Tailstock quill travel 200 mm
Total weight 43,000 kg
Complete with:
- display
- 2 open bezels
