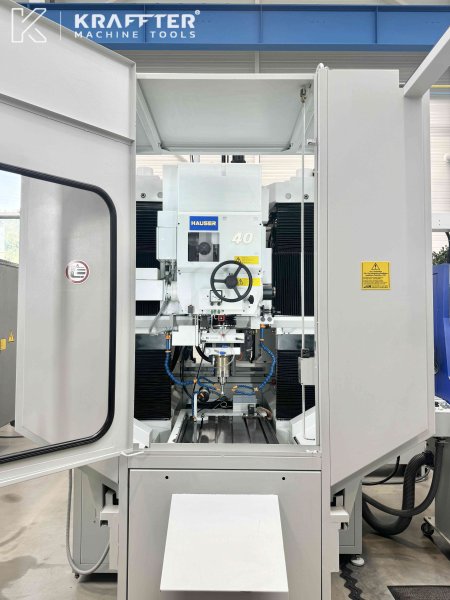

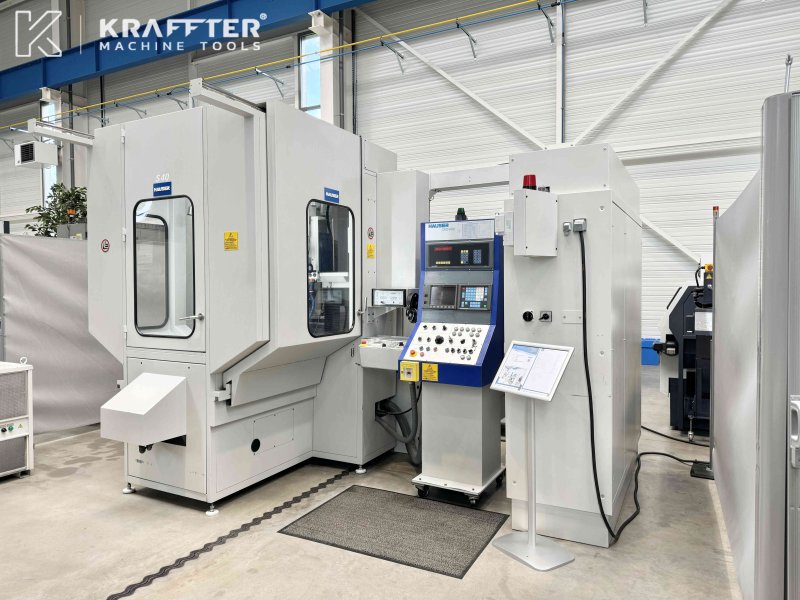

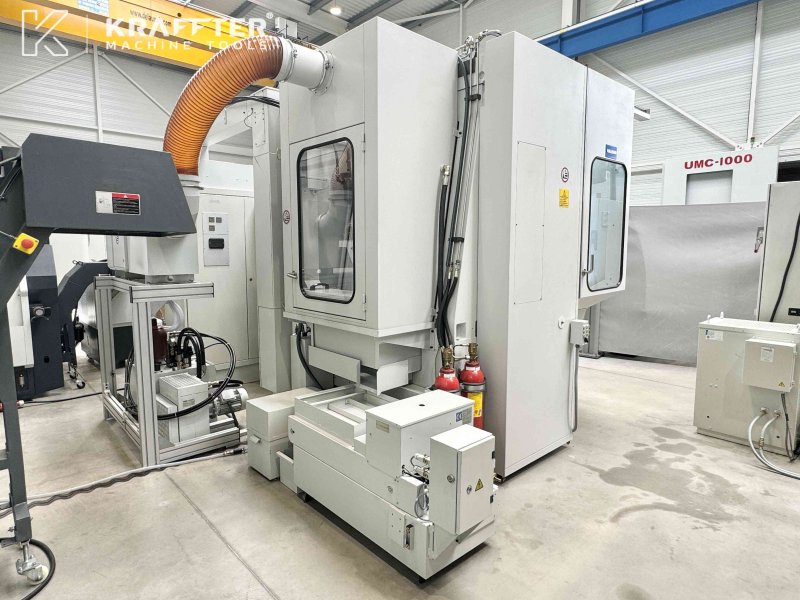

HAUSER S40-400 1996
- Condition: used
- published: 31/10/2025
- 25IND47985
Technical data
- Condition: used
- Year: 1996
Description
Maximum speed W-axis travel:
800 [mm/min]
X-axis travel:
650 [mm]
Maximum speed X-axis travel:
4000 [mm/min]
X-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Y-axis travel:
450 [mm]
Y-axis working ...
Maximum speed W-axis travel:
800 [mm/min]
X-axis travel:
650 [mm]
Maximum speed X-axis travel:
4000 [mm/min]
X-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Y-axis travel:
450 [mm]
Y-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Z-axis travel:
130 [mm]
Minimum Z-axis travel speed:
0.5 [mm/min]
Maximum Z-axis travel speed:
12000 [mm/min]
Z-axis travel frequency:
Max. 4 [Hz]
C-axis speed (planetary):
5 - 250 [rpm]
U-axis travel (radial feed):
5.5 [mm]
Distance between columns:
750 [mm]

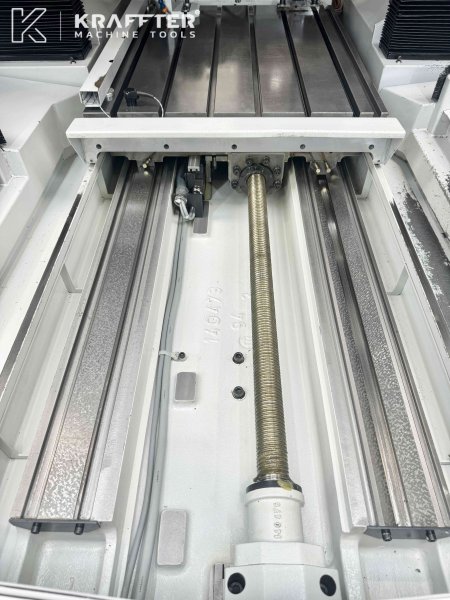

Table length:
770 [mm]
Table width:
630 [mm]
Distance between grinding motor and table:
585 [mm]
Maximum allowable weight on the table:
500 [kg]
Power supply voltage:
400 [V]
Weight:
4550 [kg]
EQUIPMENT INCLUDED:
1 x HI-CUT package including:
- work area protection
- extraction system with electrostatic air filter
- fire protection system (to be assessed by a qualified body)

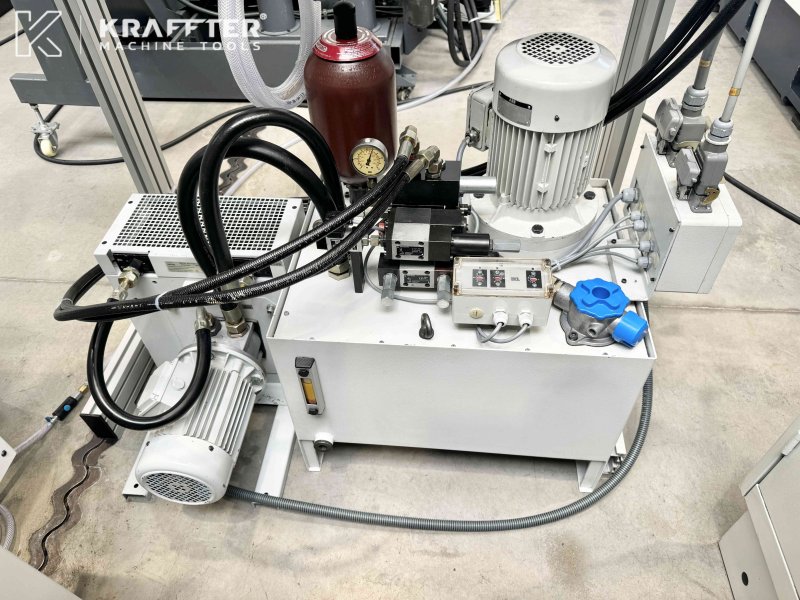

-HTG-RWS-60 automatic belt filter cooling unit
x1 MSS (Multi-Sensoric System) tool detection device
x1 CBN dressing unit with HF drive for automatic dressing of CBN (ceramic bond and synthetic resin) grinding wheels
x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225
x1 turbine holder with filter for use with T10 and T16 turbines - reference: 166497

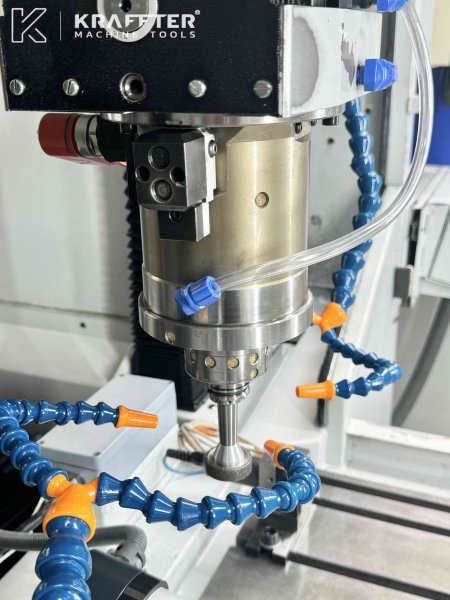

x1 60S-TC grinding motor, speed 9,000 - 60,000 rpm, for SK20 collets - code: 208450
x1 intermediate plate for aligning motors and turbines - reference: 192940
x1 centering dial holder for the grinding motor rotor - reference: 191790

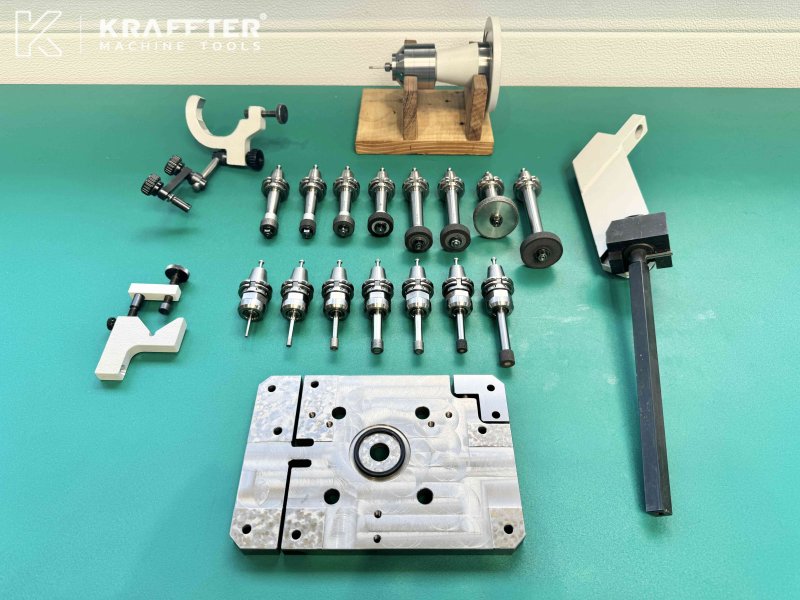

x15 grinding wheel studs
x1 grinding motor cable
Various tools
Complete documentation
Working
Revised
