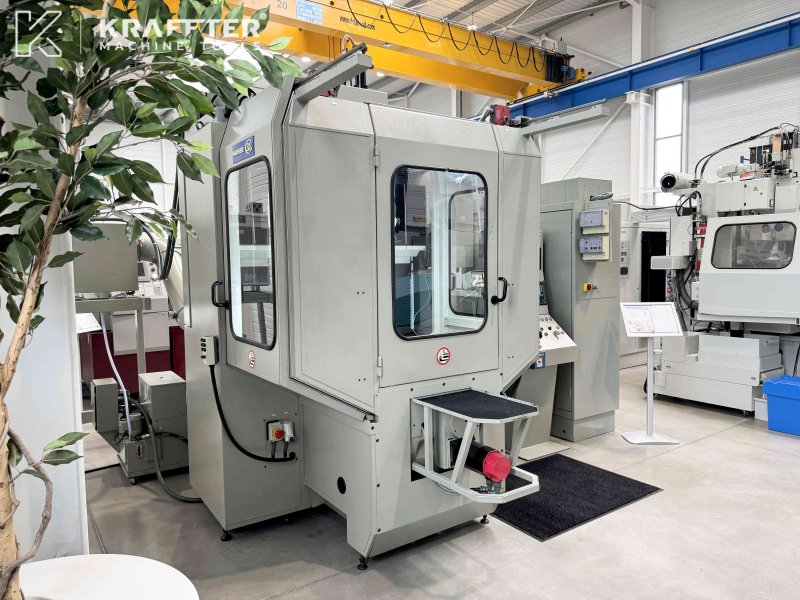

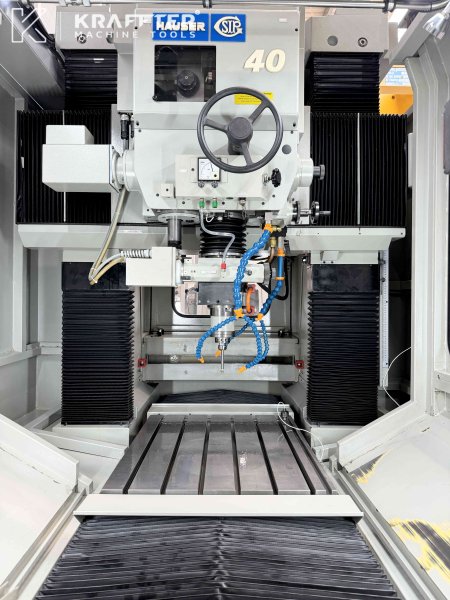

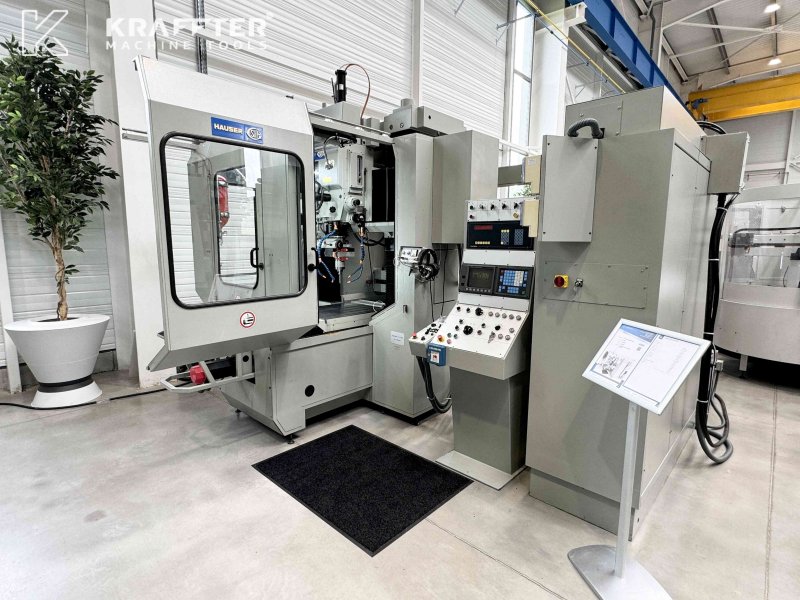

HAUSER S40-400
- Condition: used
- published: 31/10/2025
- 25IND47986
Technical data
- Condition: used
- Year: undefined
Description

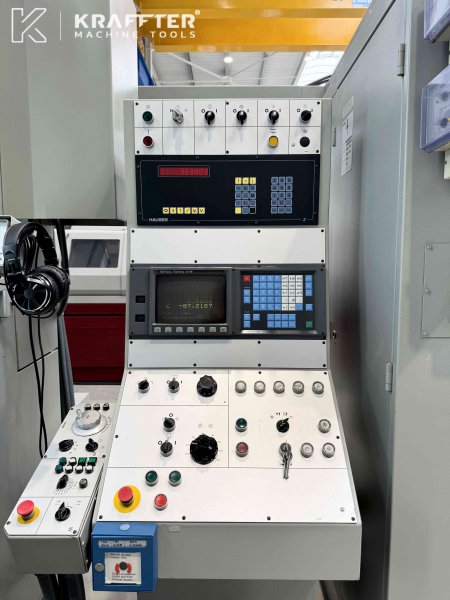

CNC type:
FANUC Series 0-M
Maximum speed W-axis travel:
800 [mm/min]
X-axis travel:
650 [mm]
Maximum speed X-axis travel:
4000 [mm/min]
X-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Y-axis trav ...
CNC type:
FANUC Series 0-M
Maximum speed W-axis travel:
800 [mm/min]
X-axis travel:
650 [mm]
Maximum speed X-axis travel:
4000 [mm/min]
X-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Y-axis travel:
450 [mm]
Y-axis working feed rate:
0 - 1800 [mm/min] [mm/min]
Z-axis travel:
130 [mm]
Minimum Z-axis travel speed:
0.5 [mm/min]
Maximum Z-axis travel speed:
12000 [mm/min]
Z-axis travel frequency:
Max. 4 [Hz]
C-axis speed (planetary):
5 - 250 [rpm]
U-axis travel (radial feed):
5.5 [mm]
Distance between columns:
750 [mm]
Table length:
770 [mm]
Table width:
630 [mm]
Distance between grinding motor and table:
585 [mm]
Maximum allowable weight on the table:
500 [kg]
Power voltage:
400 [V]
Weight:
4550 [kg]
EQUIPMENT INCLUDED:
x1 HI-CUT pack including:

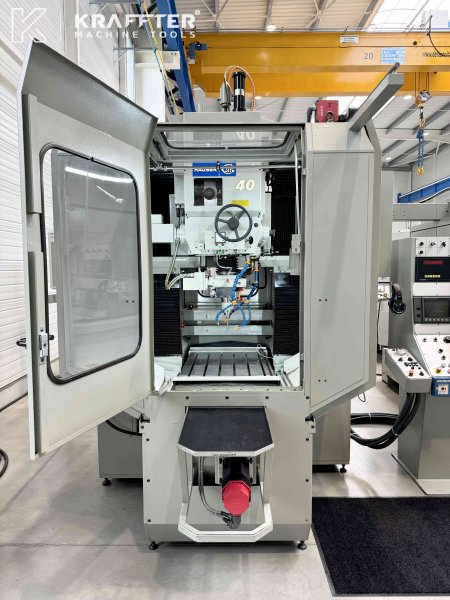

-work area protection
-exhaust system with electrostatic air filter
-fire protection system (to be assessed by a qualified person)
-automatic paper tape filtration unit
x1 grinding motor 22 S, speed 4500 - 22500 [rpm], for EX23 collets - part number: 181561
x1 45 S grinding motor, speed 9000 - 4500 [rpm], for EX19 collets - reference: 144017
x1 80 S grinding motor, speed 40000 - 80000 [rpm], for F6 collets - reference: 144021
x1 grinding motor for slot grinding (motor + belt are included) - reference: 144022
x3 grinding tools for slot grinder
x1 set of belts for slot grinding motor
x1 intermediate plate for alignment of grinding motors - reference: 192940
x1 infinitely adjustable cantilever plate with mounted grinding motor for grinding up to Ø360 [mm] - reference: 144023
x1 adjustable plate, for tilting grinding motors and turbines (up to 16°) - reference: 126148
x1 set of 2 HAUSER 90° angle brackets - reference: 155361

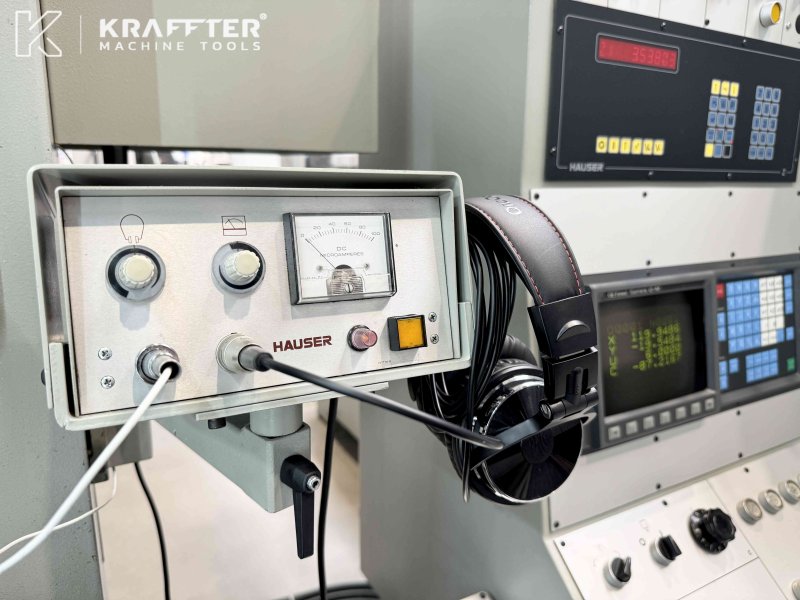

x1 centering microscope - reference: 146318
x1 tool contact detection device - reference: 162334
x20 grinding wheel holders
x1 cable for grinding motor
Various tools
Complete documentation
Working
Revised
