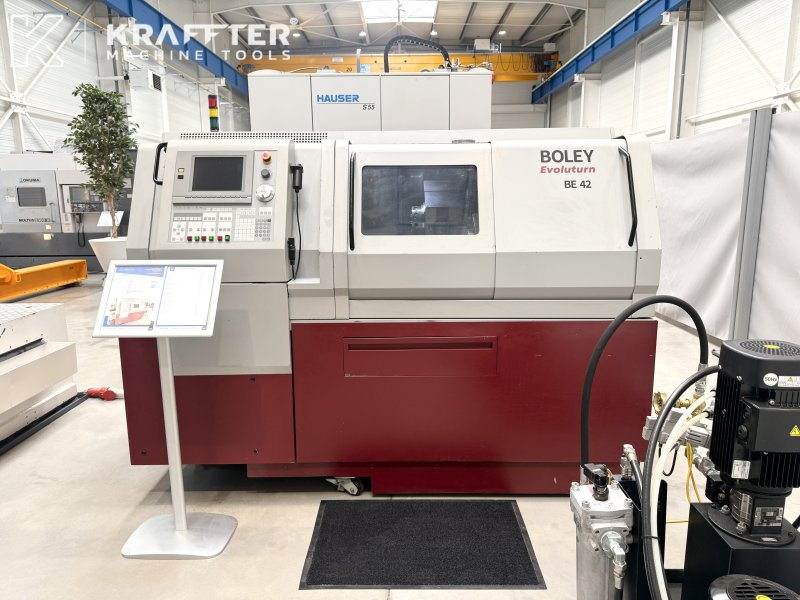

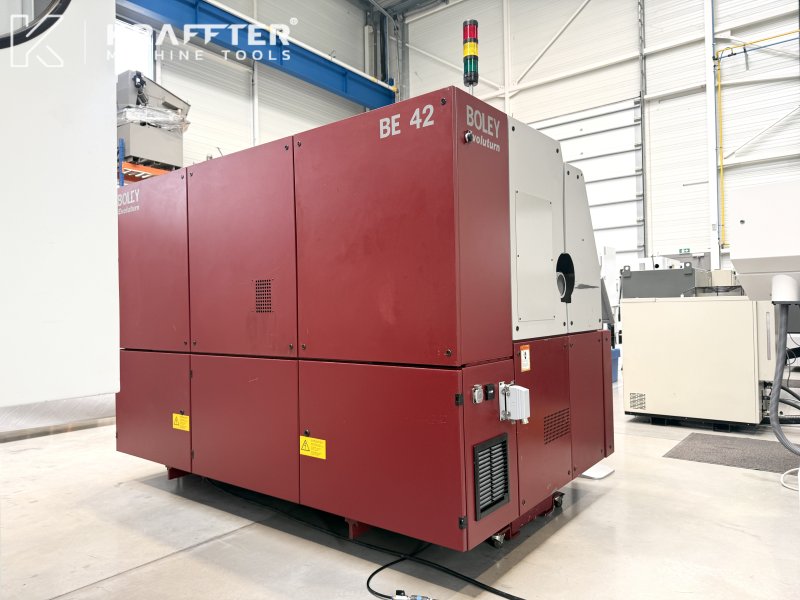

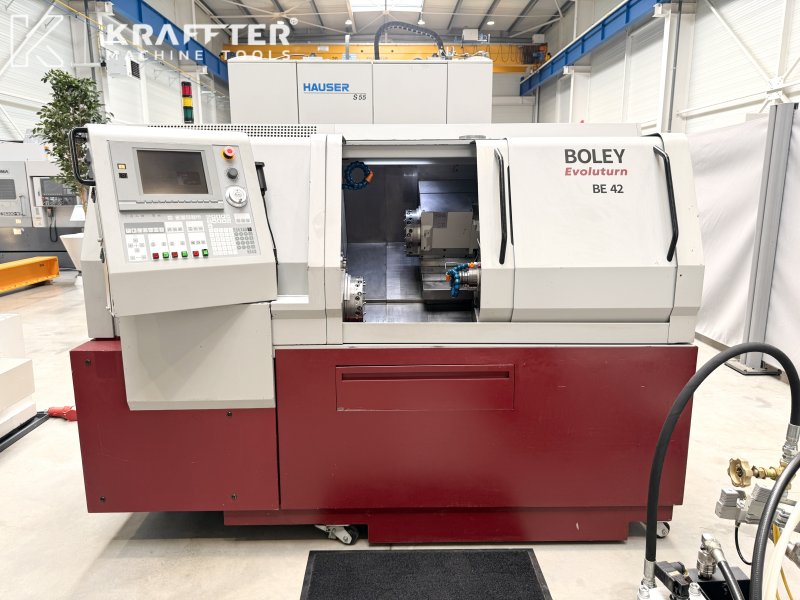

Boley BE42 2002
- Condition: used
- published: 31/10/2025
- 25IND47989
Technical data
- Condition: used
- Year: 2002
Description

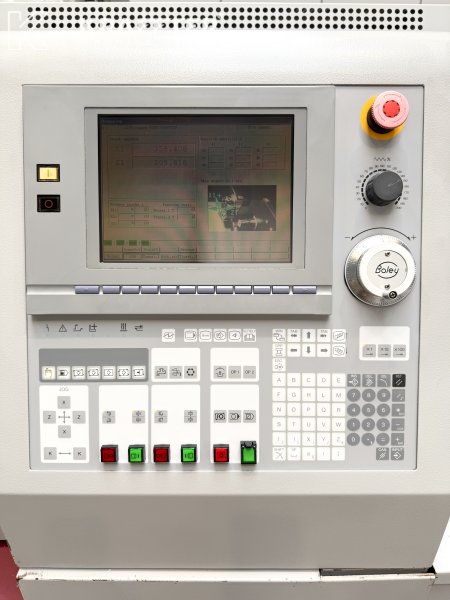

CNC type:
MITSUBISHI Meldas 635LCC
Maximum workable diameter:
140 [mm]
Z1-axis travel:
200 [mm]
X1-axis travel:
170 [mm]
Z2-axis travel:
395 [mm]
X2-axis travel:
110 [mm]
Z3-axis travel:
170 [mm]
X3-a ...
CNC type:
MITSUBISHI Meldas 635LCC
Maximum workable diameter:
140 [mm]
Z1-axis travel:
200 [mm]
X1-axis travel:
170 [mm]
Z2-axis travel:
395 [mm]
X2-axis travel:
110 [mm]
Z3-axis travel:
170 [mm]
X3-axis travel:
110 [mm]

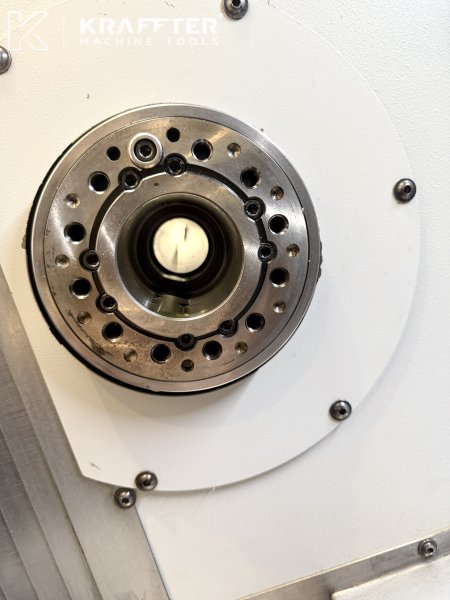

Spindle:
Size 48 DIN 6343
Spindle bore diameter:
42 [mm]
Minimum spindle speed:
80 [rpm]
Maximum spindle speed:
8000 [rpm]
C-axis indexing accuracy:
0.001 [°]
Spindle Power:
7.5 [kW]
Subspindle Passage Diameter:
42 [mm]
Minimum Subspindle Speed:
60 [rpm]
Maximum Subspindle Speed:
6000 [rpm]
Subspindle C-Axis Indexing Accuracy:
0.001 [°]
Subspindle Power:
2.2 [kW]

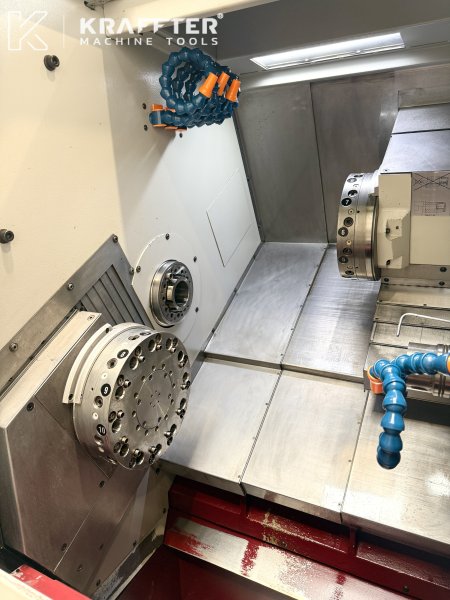

Toolholder Type:
VDI 20

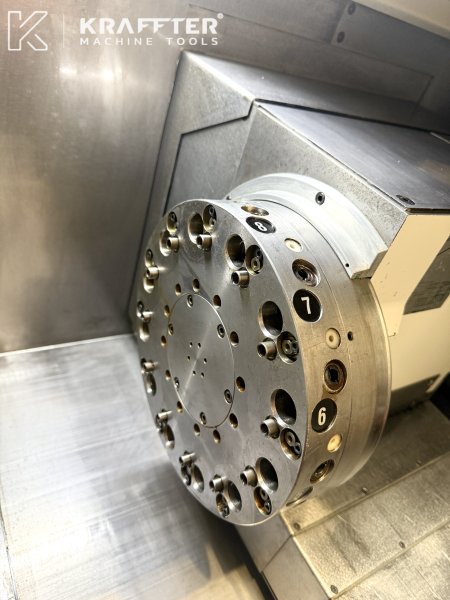

Number of Stations - Turret 1:
12
Number of Driven Stations - Turret 1:
12
Maximum Rotating Tool Speed - Turret 1:
4500 [rpm]
Number of Stations - Turret 2:
12
Number of Driven Stations - Turret 2:
12
Maximum rotating tool speed - Turret 2:
4500 [rpm]
Irrigation tray capacity:
210 [l]
Installed power:
14 [kVA]
Rated current:
20 [A]
Supply voltage:
400 [V]
RS232 port:
Yes
Dimensions:
2350 x 1590 x 1730 [mm]
Weight:
3300 [kg]
INCLUDED EQUIPMENT:

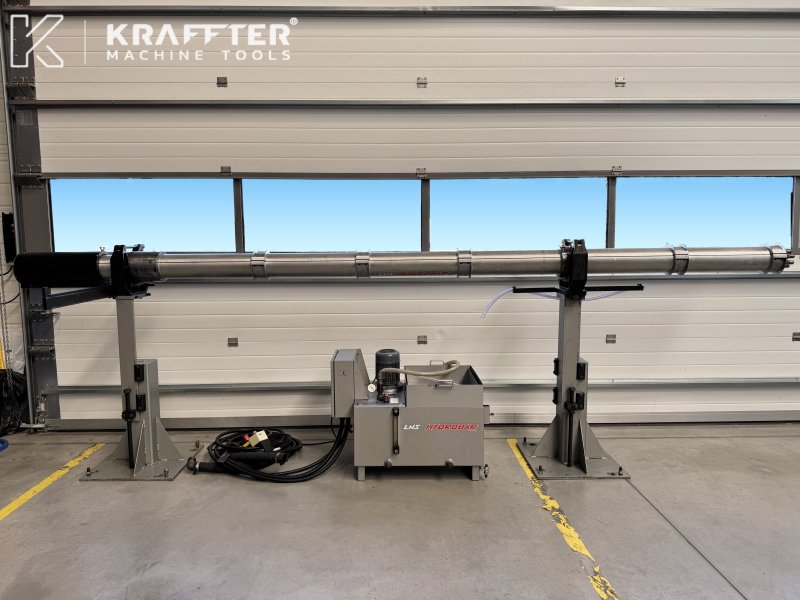

1 x LNS HYDROBAR bar feeder
1 x coolant tank
6 x radial live tool holders VDI 20
5 x axial live tool holders VDI 20
21 x static tool holders VDI 20
1 x parts catcher basket VDI 20
x17 VDI 20 blanking plugs
x28 collets
x4 collet chucks
x1 3-color status light
x1 "Electrical diagrams" manual
x1 "Operation & Maintenance" manual
x1 Operator's manual
Working
Revised
