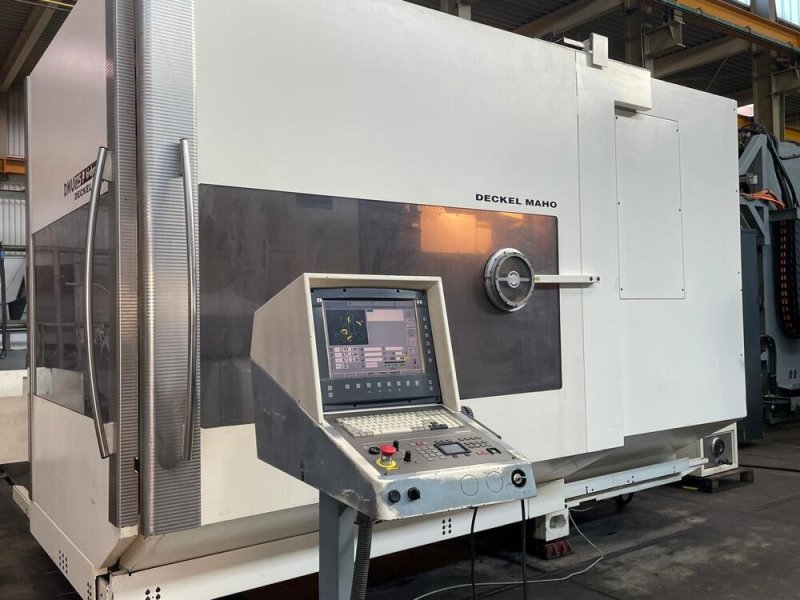

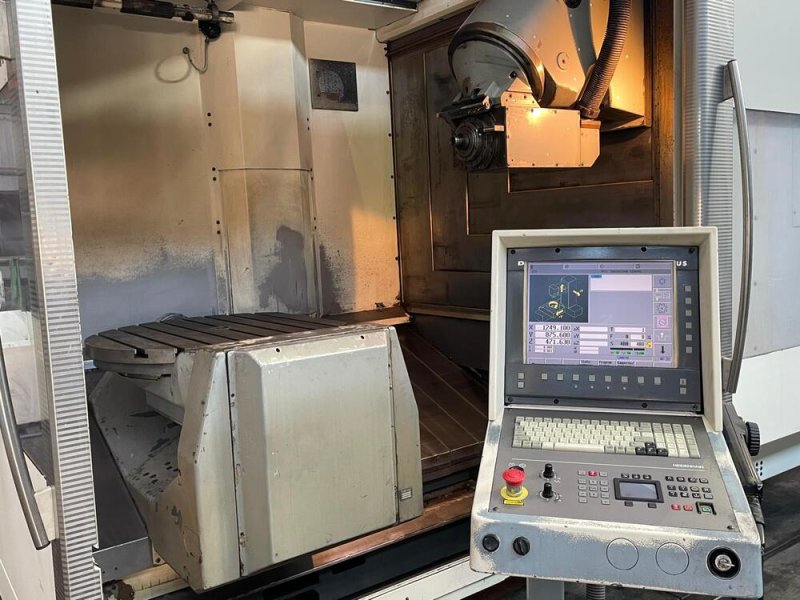

DECKEL MAHO DMU 125 P Hi-Dyn 2000
- Condition: used
- published: 11/11/2025
- 25IND48083
Technical data
- Condition: used
- Year: 2000
- X-axis travel: 1001/2000 mm
Description

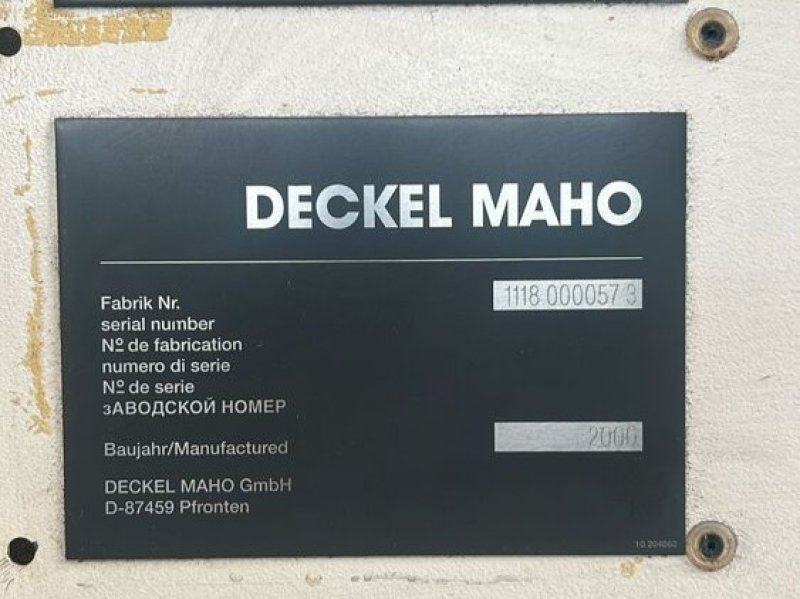

Year of construction: 2000

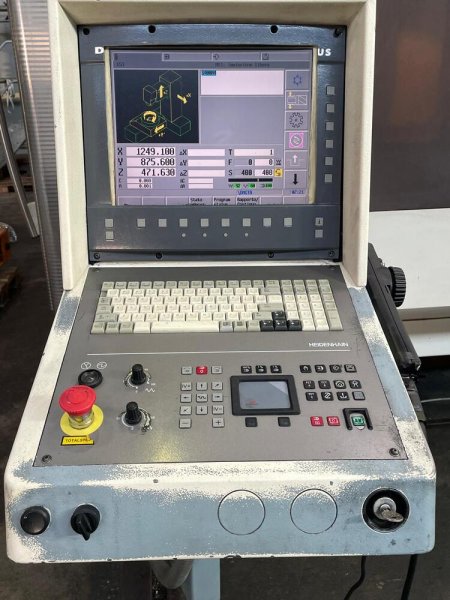

Numerical control: 3D contouring control Millplus
Axes
X-axis travel mm: 1250
Y-axis travel mm: 880
Z-axis travel mm: 800
C-axis angle: 360º (0.001)
Feed m/min: 40
Rapid fe ...
Year of construction: 2000
Numerical control: 3D contouring control Millplus
Axes
X-axis travel mm: 1250
Y-axis travel mm: 880
Z-axis travel mm: 800
C-axis angle: 360º (0.001)
Feed m/min: 40
Rapid feed m/min: 40

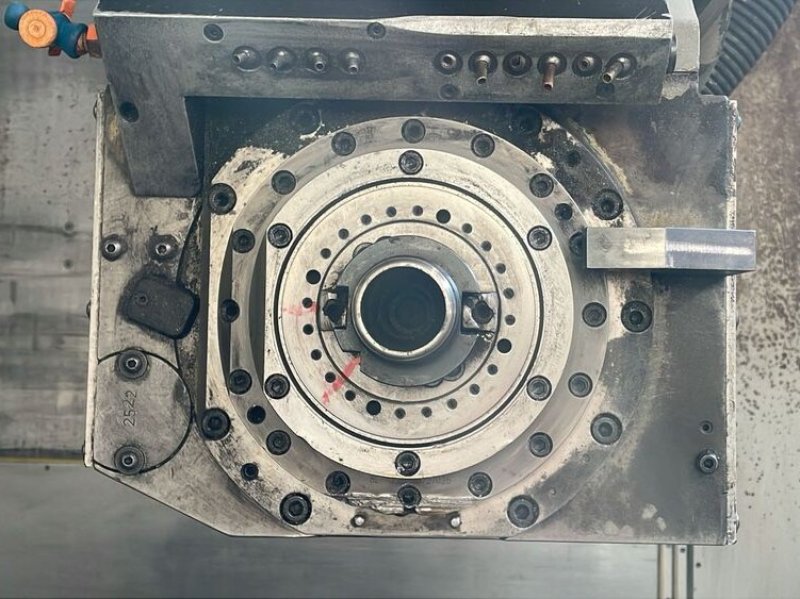

NC milling/turning table:
Number of pallets: 1
Table size mm: Ø1000
Maximum workpiece weight kg: 1000
Maximum torque Nm: 7900
Spindle
Spindle rotation speed rpm: 18000
Spindle power kW: 15/10 (40% ED/cont)

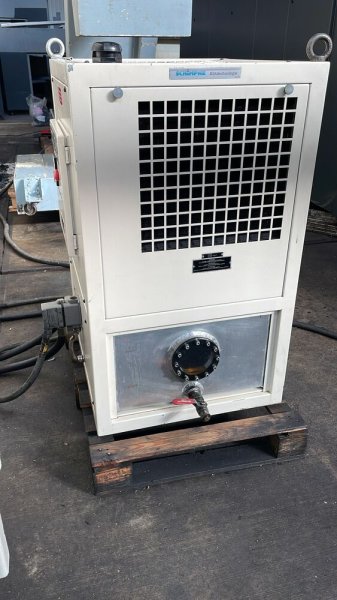

Coolant
Tank capacity liters: 600

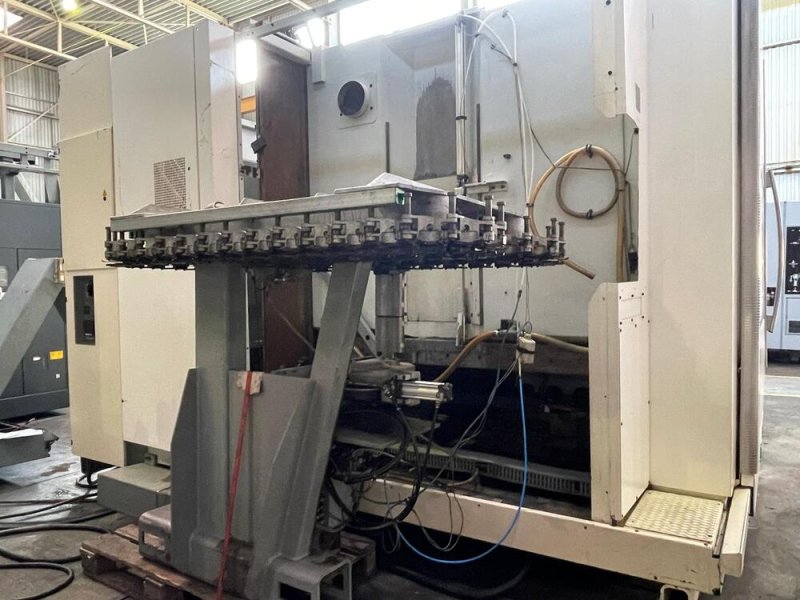

Tool magazine
Port CAT 40 tool
60 tool magazine positions
Double gripper tool changer
Equipment
Electronic handwheel
Chip conveyor
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Wash gun
Renishaw probe package
Precision package
Provision for internal cooling (40/80 bar)

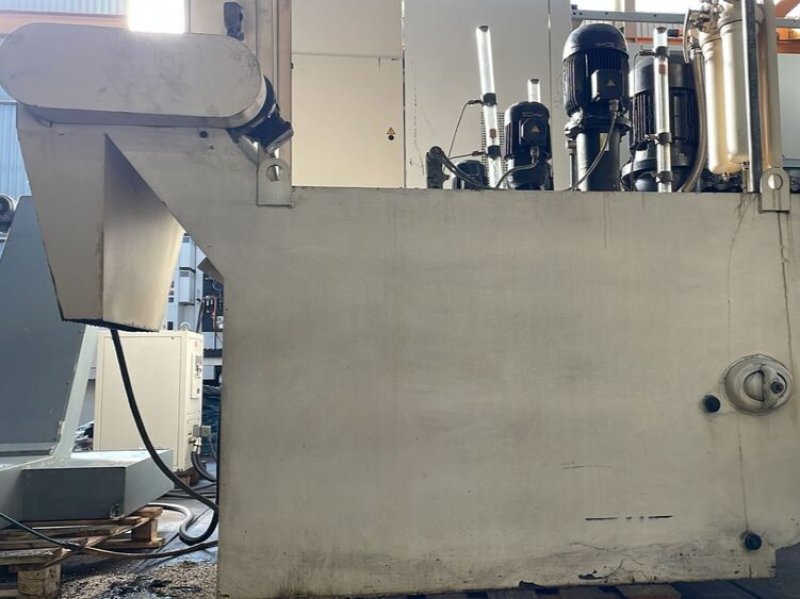

Paper belt filter
Working time

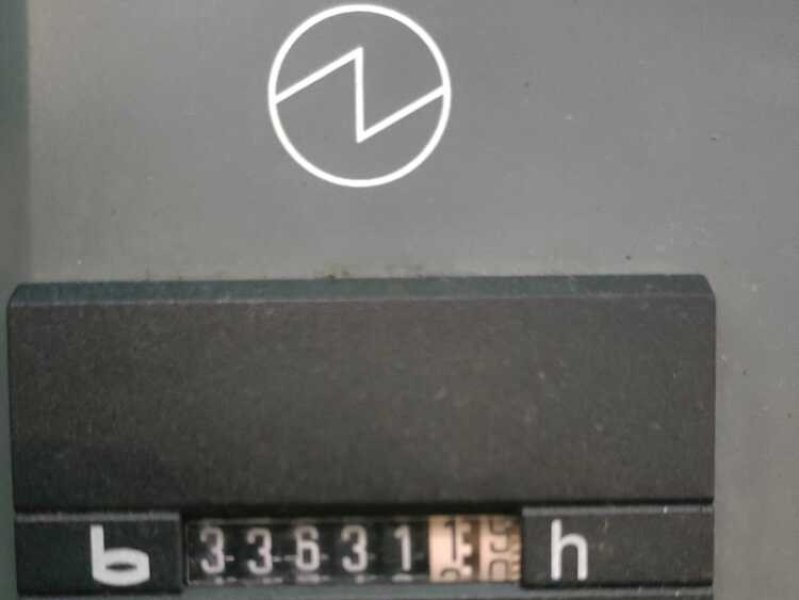

Powered: 33,831

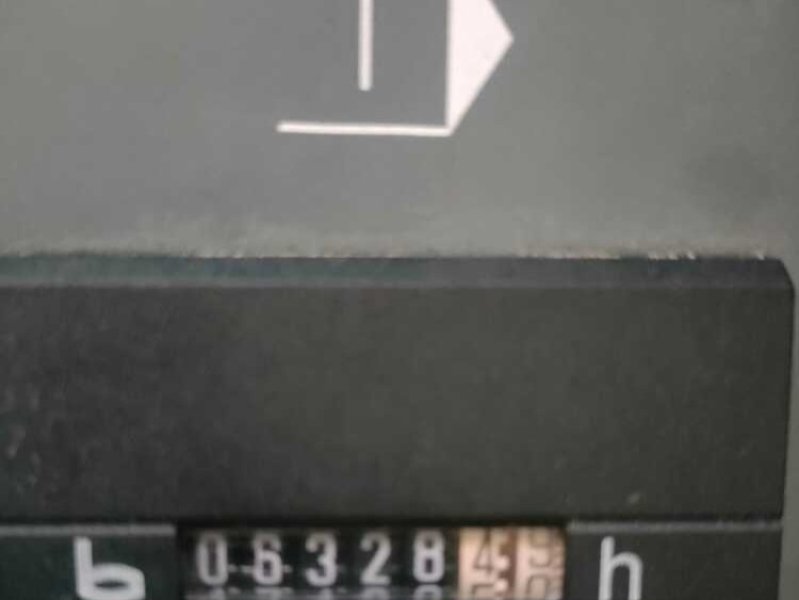

Working spindle: 6,328
Rated power kVA: 55
Main machine dimensions / weight
Length mm: 7,000
Width mm: 3,500
Height mm: 3,902
