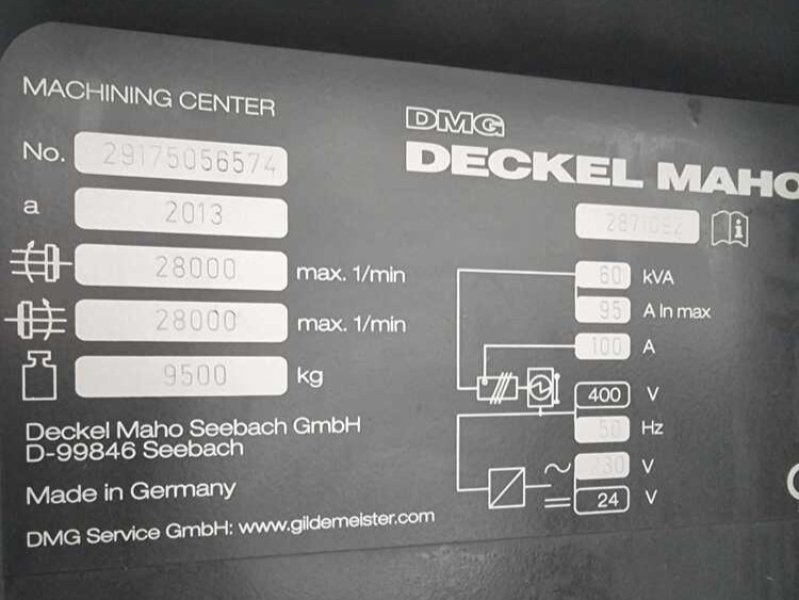

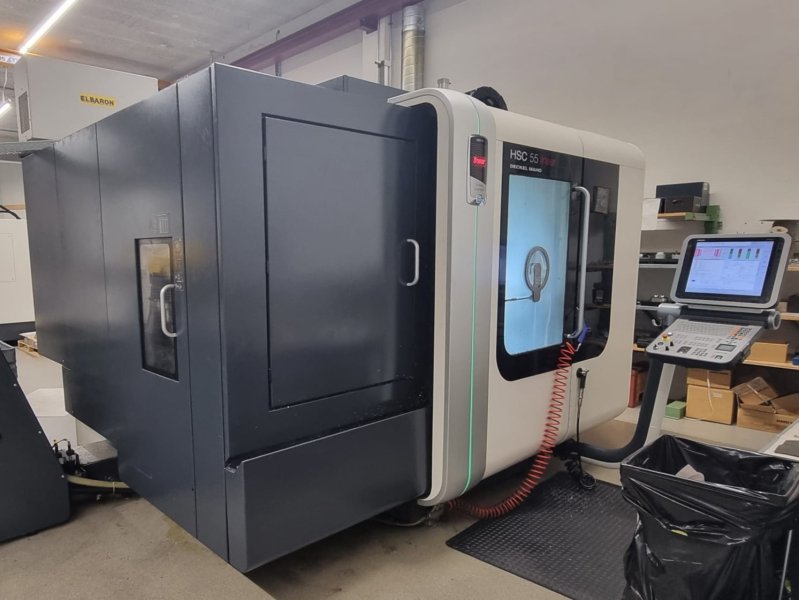

DECKEL MAHO HSC 55 linear + system 3R 2013
- Condition: used
- published: 12/11/2025
- 25IND48098
Technical data
- Condition: used
- Year: 2013
Description
Year of manufacture: 2013

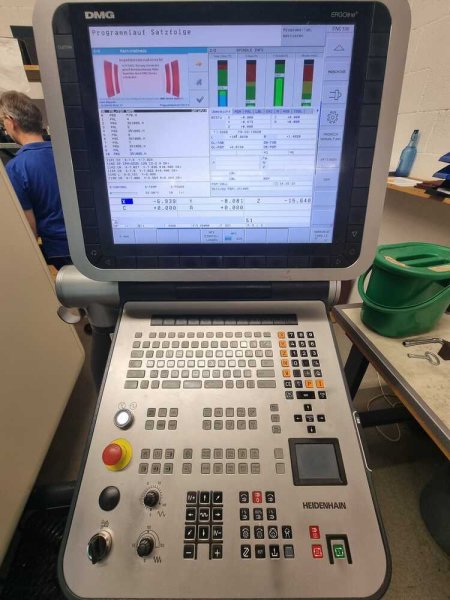

Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 450
Y-axis travel mm: 580
Z-axis travel mm: 400
C-axis angle: 360º (0.0001)
A-axis angle: +10 / -110º
Feed rat ...
Year of manufacture: 2013
Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 450
Y-axis travel mm: 580
Z-axis travel mm: 400
C-axis angle: 360º (0.0001)
A-axis angle: +10 / -110º
Feed rate m/min: 80
Rapid feed m/min: 80
Axis acceleration m/s2: 13

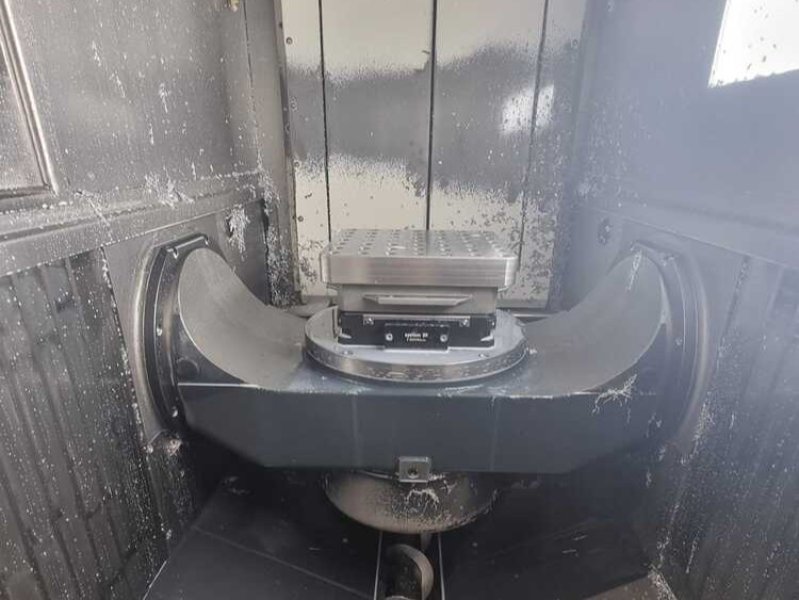

NC milling/turning table:

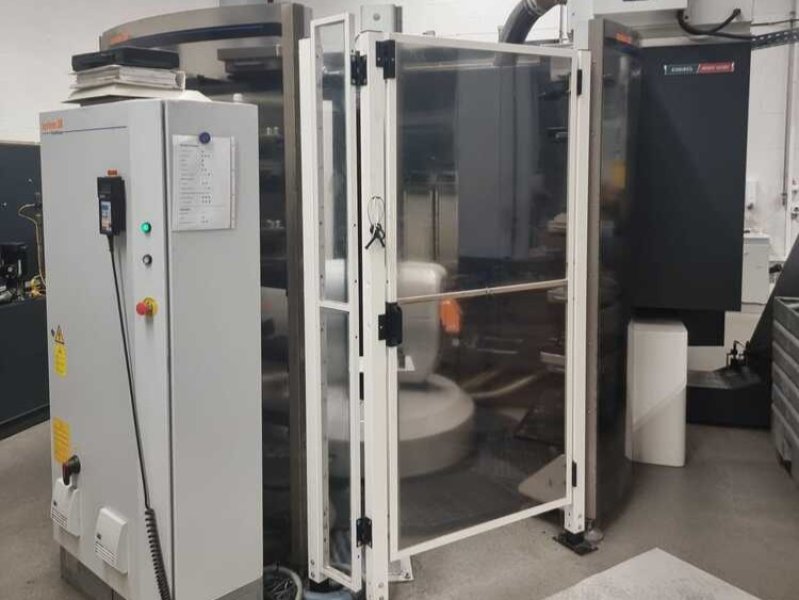

Number of pallets: System 3R (21 pallets type GPS 240, 30 pallets type GPS 120 and 24 pallets type ITS50)
Table size mm: baseplate for root pallet
Maximum workpiece size mm: for pallet GPS 240 (275x275x200mm); for GPS 120 pallets (150x150x200mm) and for ITS50 pallets (ø70x200mm)
Maximum workpiece weight: 150 kg (pallet + workpiece)

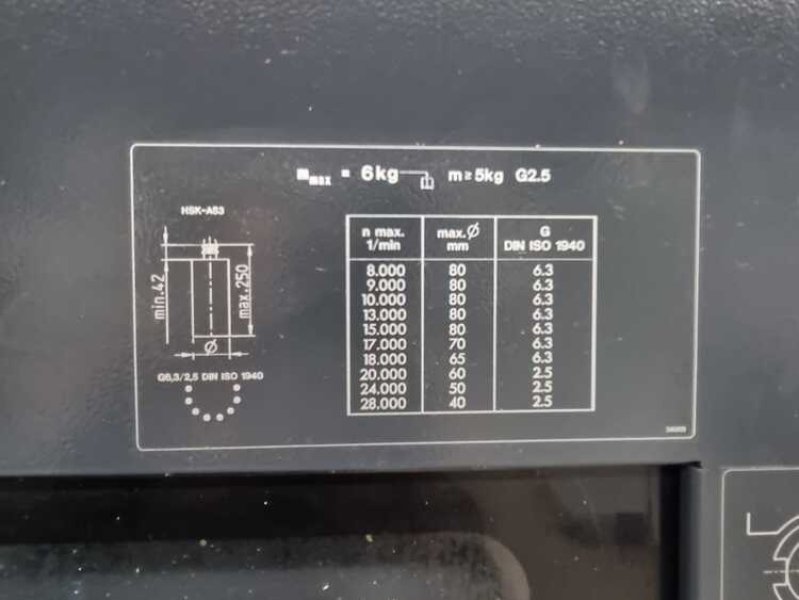

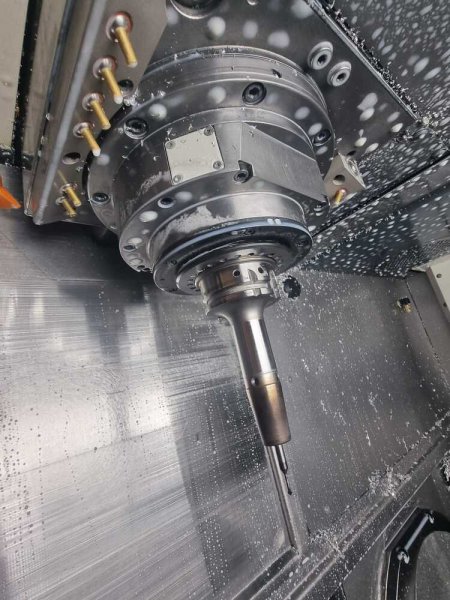

Spindle
Spindle rotation speed rpm: 28,000
Spindle power kW: 35/25 (40% ED/cont)
Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 600

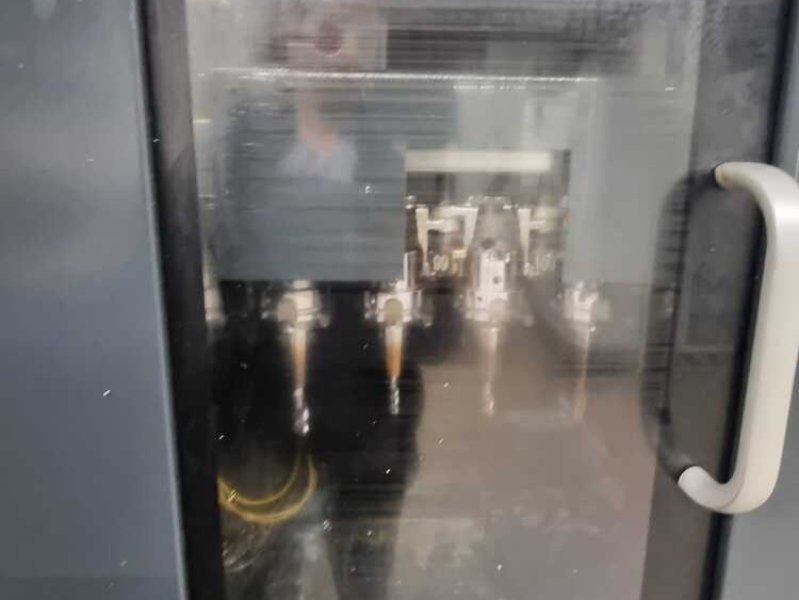

Tool magazine
Tool holder HSK-A 63
Tool magazine positions: 120
Double gripper tool changer
Equipment
Electronic handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Flushing gun
Air flow through the spindle with M-function activation
Laser tool diameter and length measurement
3D quickSET
External pallet handling capability
Precision package
Internal coolant supply

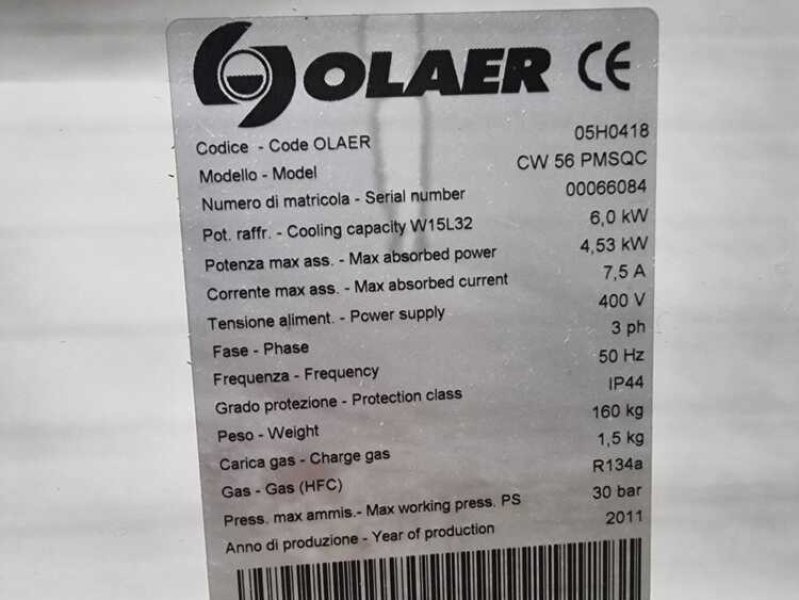

Electrical cabinet active cooling unit
Spindle active cooling unit
Tool holders are not included
Tools are not included
Paper belt filter
Working time
Powered: 62,983
Working spindle: 39,945
Rated power kVA: 55
Main machine dimensions / weight
Length mm: 5,500
Width mm: 2,650
Height mm: 2,900
Weight kg: 9,500 + system 3R
