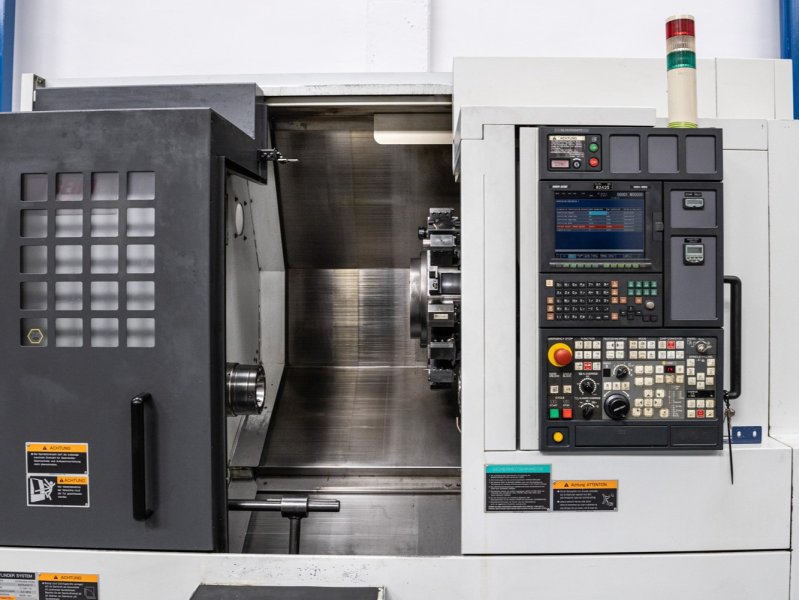

MORI SEIKI NL1500 SMC/500 2006
- Condition: used
- published: 12/11/2025
- 25IND48111
Technical data
- Condition: used
- Year: 2006
Description

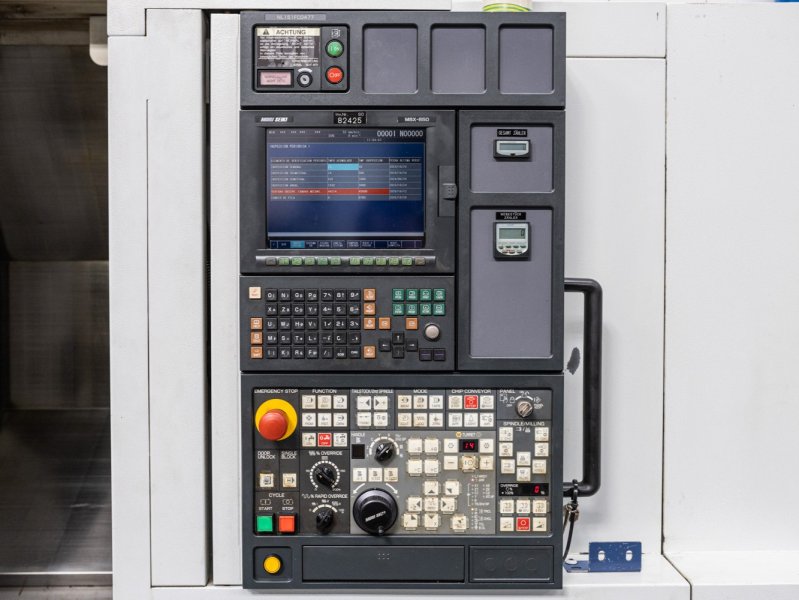

Numerical control: Mitsubishi M-720BM (MAPPS 2)
Capacity
X-axis travel mm: 260
Z-axis travel mm: 590
B-axis travel mm: 624
Turning length mm: 515
Swing diameter mm: ø: 366
Swing diameter ... mm: ø: ...
Numerical control: Mitsubishi M-720BM (MAPPS 2)
Capacity
X-axis travel mm: 260
Z-axis travel mm: 590
B-axis travel mm: 624
Turning length mm: 515
Swing diameter mm: ø: 366
Swing diameter ... mm: ø: 923.8
Swing diameter on slide (axis) mm: 755
Bar passage mm: 52

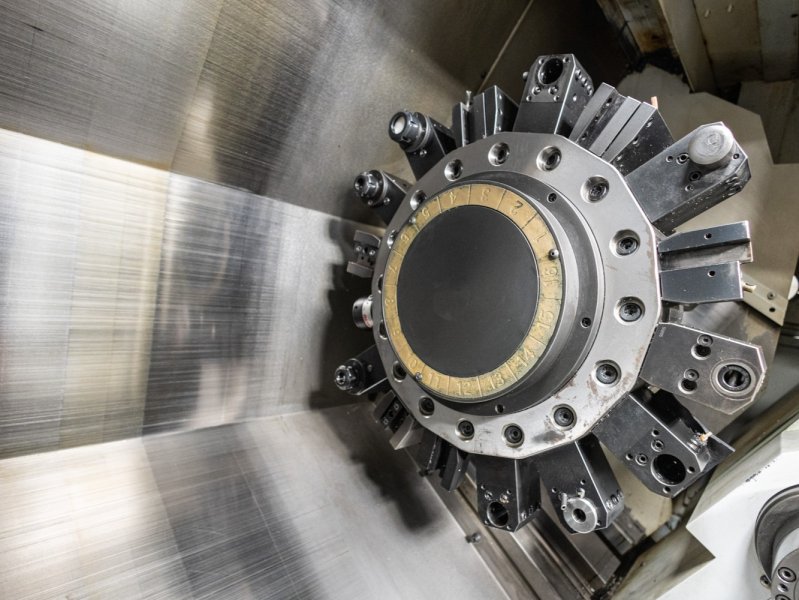

Upper turret
Number of tool positions: 16
Live tools, speed rpm: 6,000
Live tools, power kW: 5.5/5.5/3.7 (3 min/5 min/cont)
Indexing time s: 0.25
Main spindle
Spindle rotation speed rpm: 6,000
Spindle power kW: 11/7.5
Bar passage mm: ø: 61
Spindle connection type: Hollow Chuck (6")
Manufacturer: KITAGAWA
Spindle nose: JIS A2-5
Counter spindle
Spindle rotation speed rpm: 6,000
Spindle power kW: 11/7.5
Bar passage (??): 43
Spindle connection type: Hollow Chuck (6")
Manufacturer: KITAGAWA
Coolant system
Tank capacity liters: 235
Equipment
Chip conveyor
Status indicator light
High-pressure pump
Foot switch (dual) for main and subspindle
Bar feeder interface

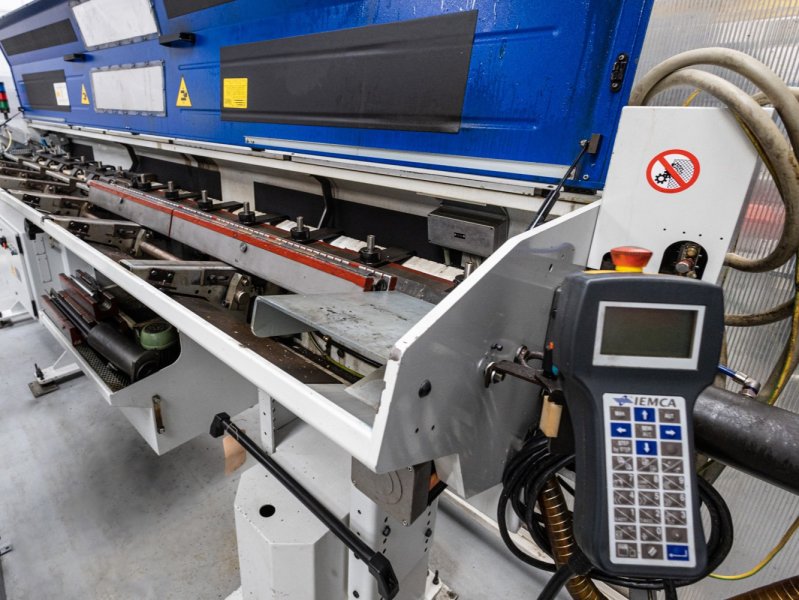

IEMCA MASTER 880/MP 33 LL bar loader
Working time

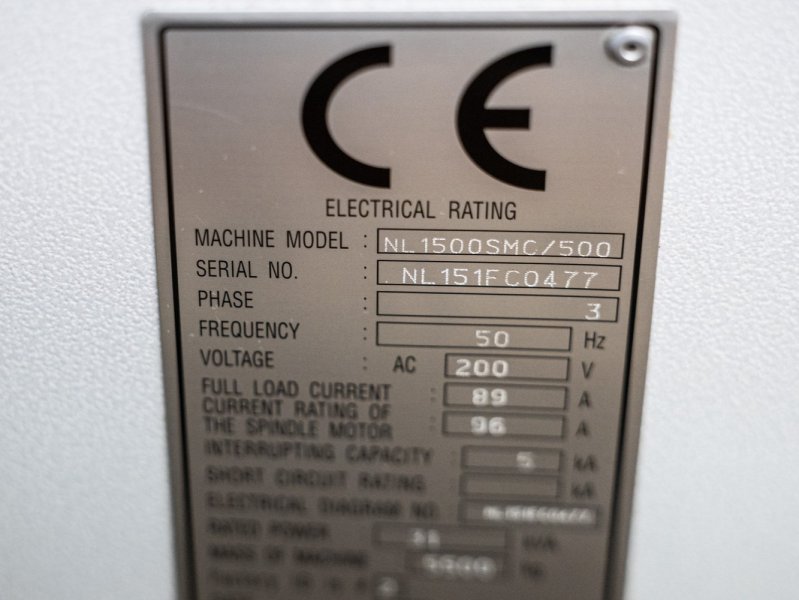

Nominal power kVA: 27.4
Main machine dimensions / weight
Length mm: 2,705
Width mm: 2,000
Height mm: 2,120
Weight kg: 5,500
