GIANA GFP 12 CNC
- Condition: used
- published: 05/03/2026
- 25IND48112
Technical data
- Condition: used
- Year: undefined
Description

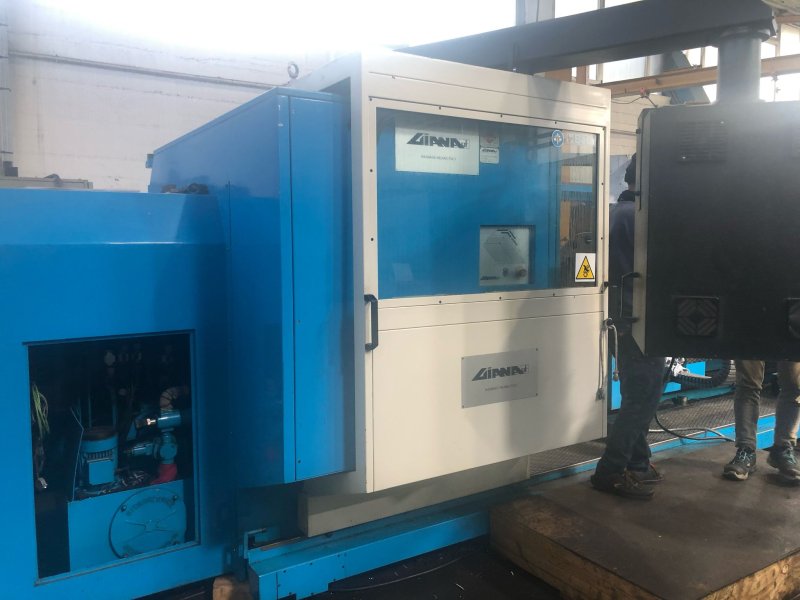

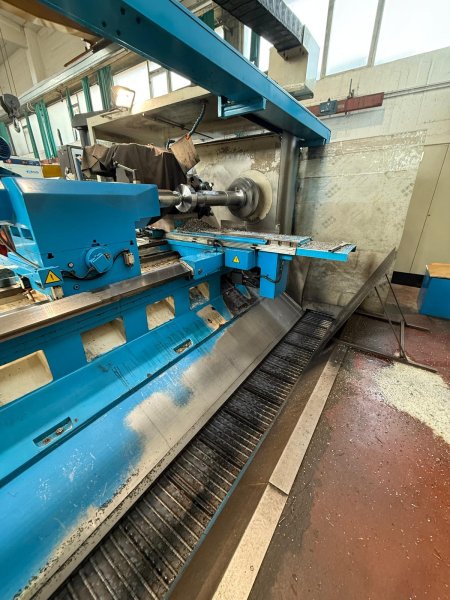

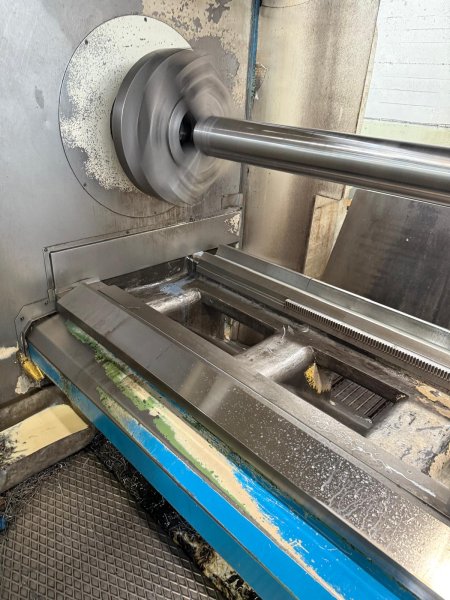

GIANA GFP 12 CNC PARALLEL LATHE - 610 x 4000 mm
Center height 610 mm
Distance between centers 4,000 mm
Turning diameter over bed 1,220 mm
Turning diameter over slide 820 mm
Bed width 920 mm
Load capac ...
GIANA GFP 12 CNC PARALLEL LATHE - 610 x 4000 mm
Center height 610 mm
Distance between centers 4,000 mm
Turning diameter over bed 1,220 mm
Turning diameter over slide 820 mm
Bed width 920 mm
Load capacity between centers (without steady rests) 15,000 kg
Spindle motor power 38 kW
Spindle speed 5 ÷ 1,000 rpm
Spindle bore 120 mm

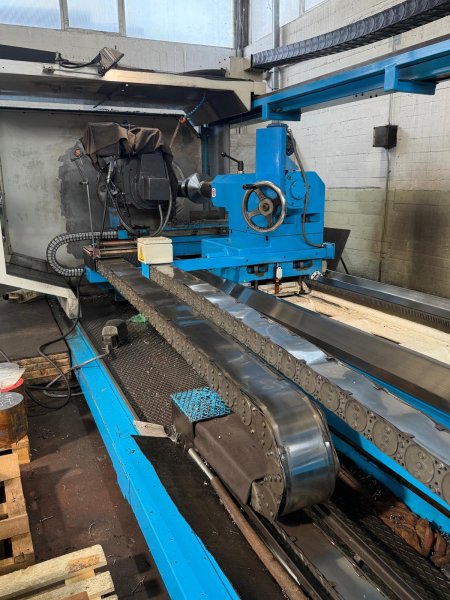

Tailstock quill diameter 150 mm
Tailstock quill travel 300 mm

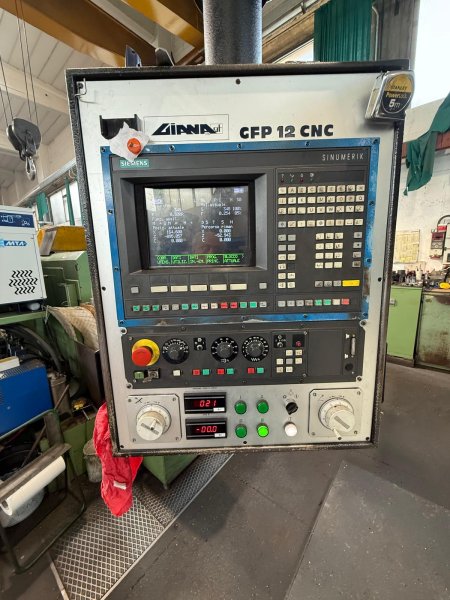

Siemens 820 T CNC
Total weight 15 tons
Year of manufacture: 1994
Complete with:
- "C" axis
- driven tools for axial and radial milling

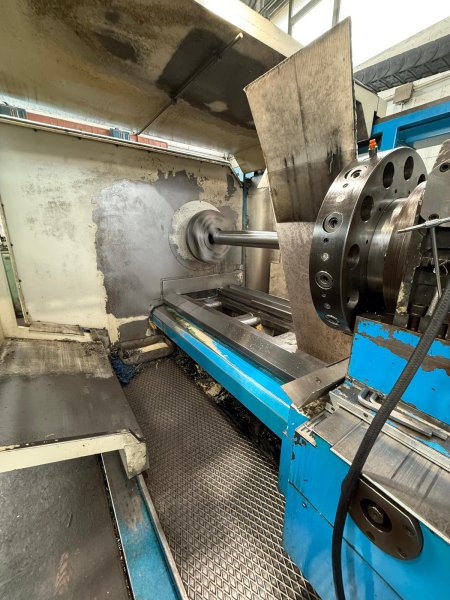

- 1 hydraulic chuck, Ø 500 mm

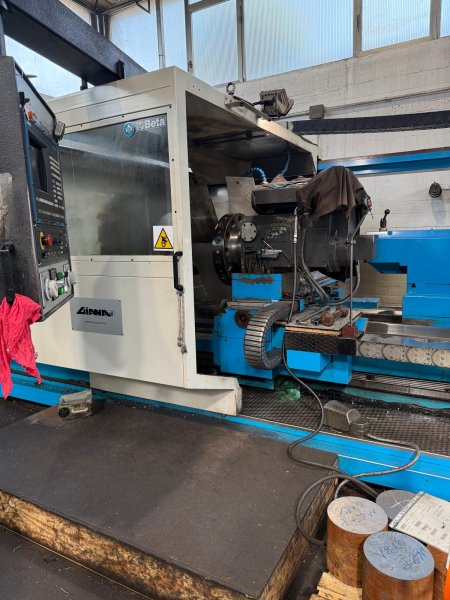

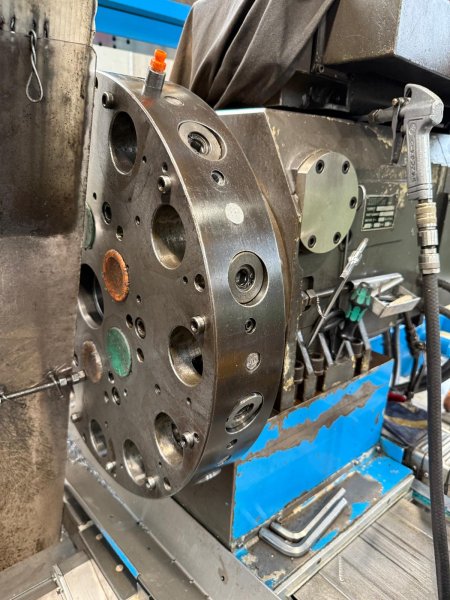

- 1 12-station turret

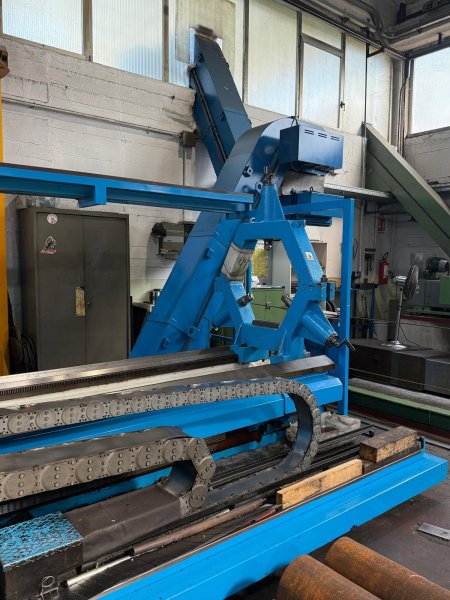

- 1 closed steady rest

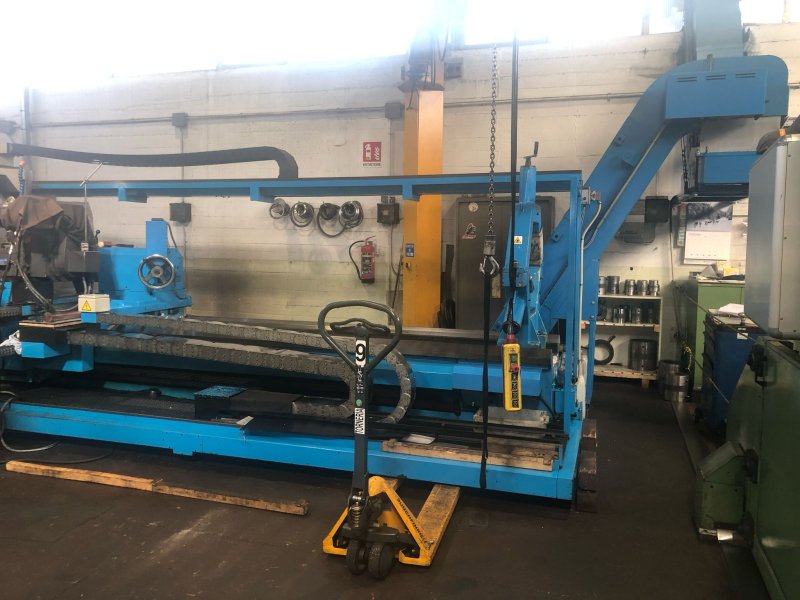

- chip conveyor
- safety guards
