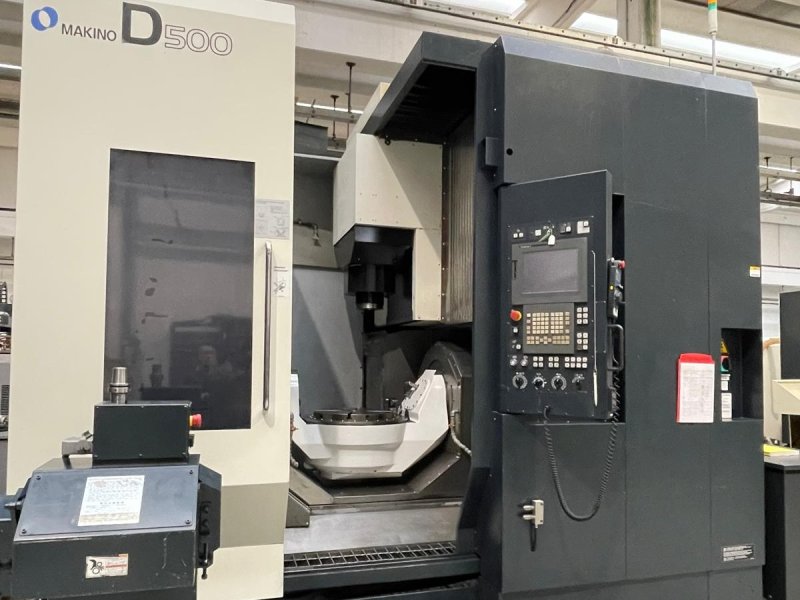

MAKINO D500 2011
- Condition: used
- published: 13/11/2025
- 25IND48124
Technical data
- Condition: used
- Year: 2011
- X-axis travel: 0/1000 mm
Description

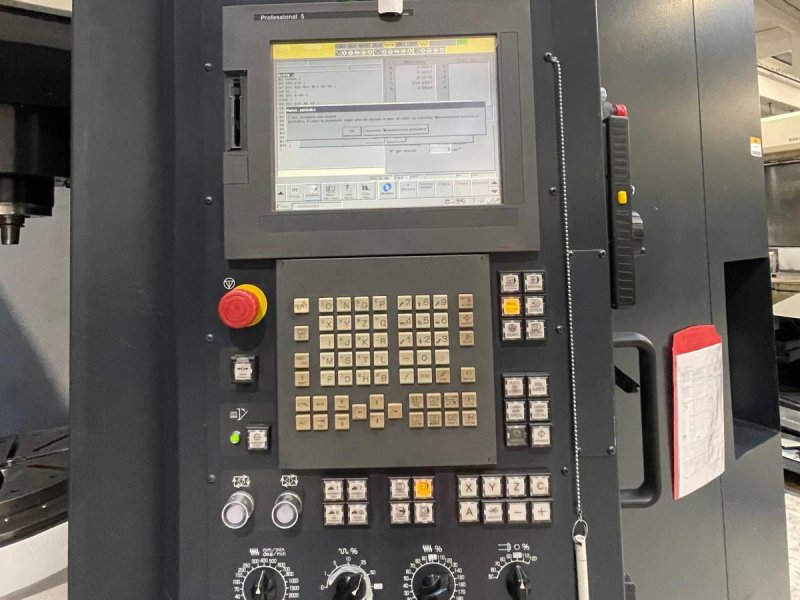

Numerical control: FANUC Professional 5
Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
C-axis angle: 360° (continuous rotation) / rotary encoder
A-axis angle: 150° (+30° 12 ...
Numerical control: FANUC Professional 5
Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
C-axis angle: 360° (continuous rotation) / rotary encoder
A-axis angle: 150° (+30° 120°) rotary encoder
Feed m/min: X: 32; Y,Z: 40;
Rapid feed m/min: X,A,C: 48; Y,Y: 50; A,C:18
Working Area
Table Size (mm): 500
Maximum Workpiece Size (mm): 650x500
Maximum Workpiece Weight (kg): 350
T-Slot Version: 4x185H8
Spindle
Spindle Speed (rpm): 20,000

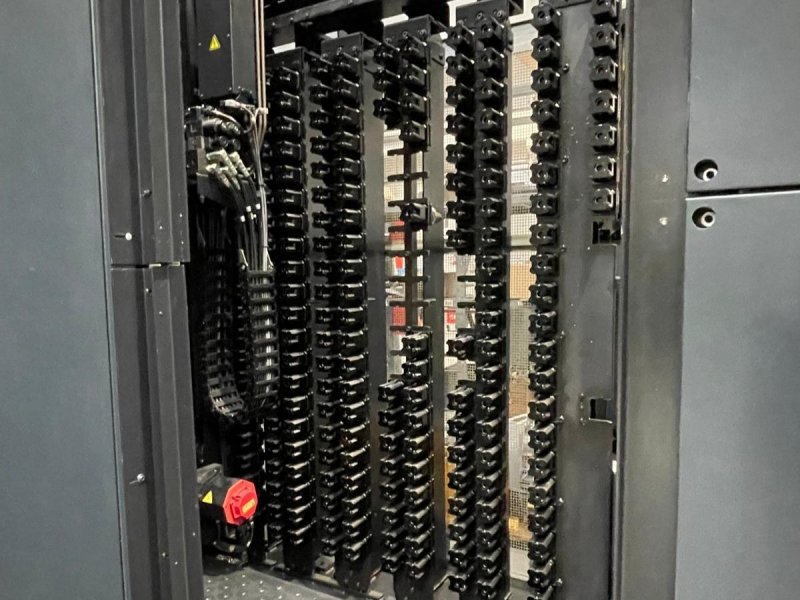

Tool Magazine
Tool Holder: HSK-A63
Tool Magazine Positions: 323
Tool Changer: Double Collet
Maximum Tool Diameter (mm): 70
With Adjacent Tool Positions Occupied (mm): 140
Maximum Tool Length (mm): 300
Tool Magazine: Matrix
Maximum Tool Weight (kg): 8
Equipment

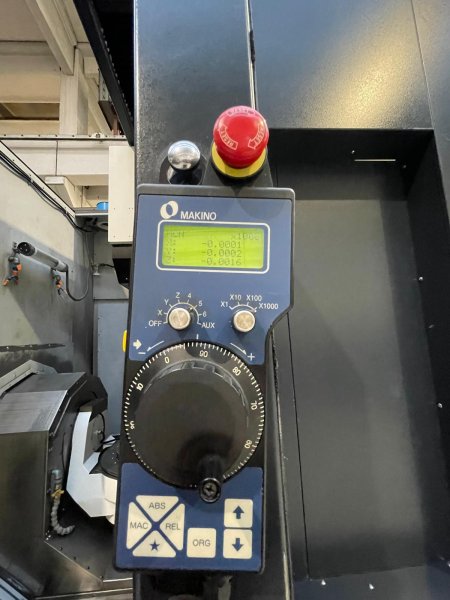

Electronic Handwheel
Chip Conveyor
Custom Macro Common Variables (100)
Synchronized Tapping
Preparation for Robot Work
Robot EROWA
Helical interpolation
Custom Macro common variables (100)
Working time
Spindle running: 0h (Retrofitted)
Main machine dimensions / weight
Length mm: 3550
Width mm: 2900
Height mm: 3200
Weight kg: 15700
