INNSE TP 1500 CNC
- Condition: used
- published: 12/01/2026
- 25IND48135
Technical data
- Condition: used
- Year: undefined
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

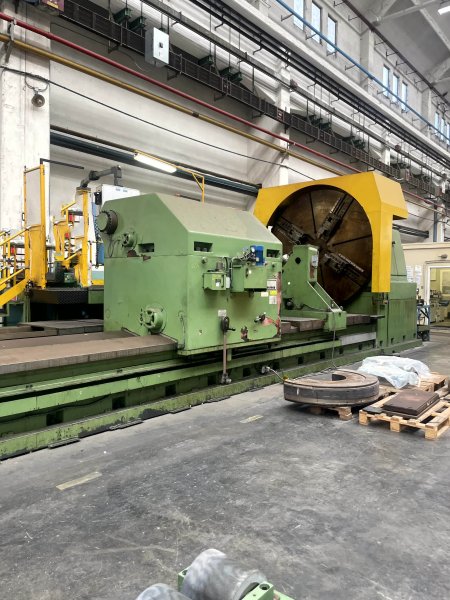

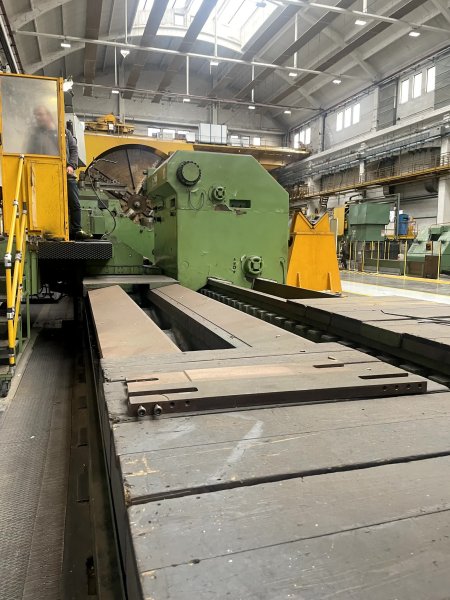

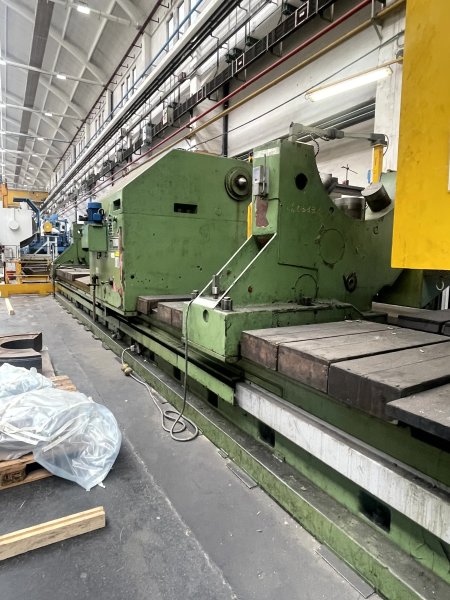

INNSE TP 150 x 10000 CNC FOUR-SIDED PARALLEL LATHE
Distance between centers: 10,000 mm.
Height of centers: 1,500 mm.
Max. diameter over bed: 3,000 mm.
Max. diameter over carriage: 2,520 mm.
Load capac ...
INNSE TP 150 x 10000 CNC FOUR-SIDED PARALLEL LATHE
Distance between centers: 10,000 mm.
Height of centers: 1,500 mm.
Max. diameter over bed: 3,000 mm.
Max. diameter over carriage: 2,520 mm.
Load capacity between centers: 80 tons.
Spindle motor power: 111 kW.
Spindle speed: 4.6 ÷ 100 rpm.
Tailstock quill diameter: 440 mm.

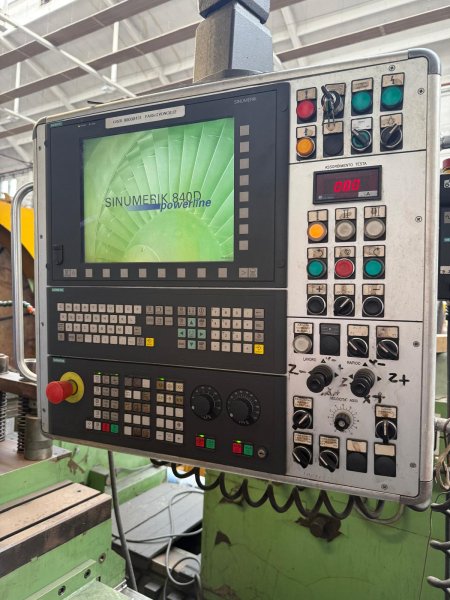

Siemens 840 D CNC - 5 axes
Total weight: 130 tons.
Overhauled in 2009
Complete with:

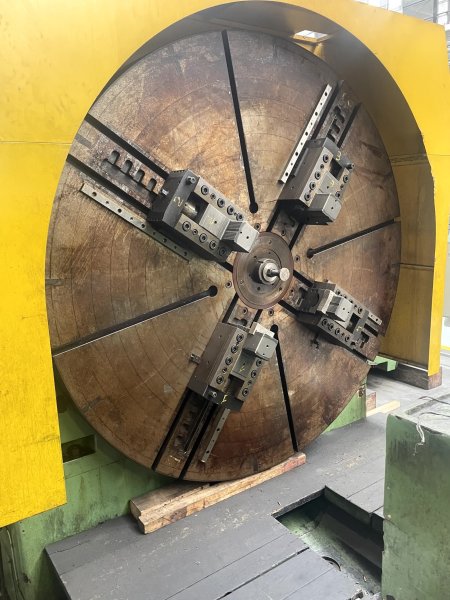

- 1 platform, diameter: 2,800 mm.

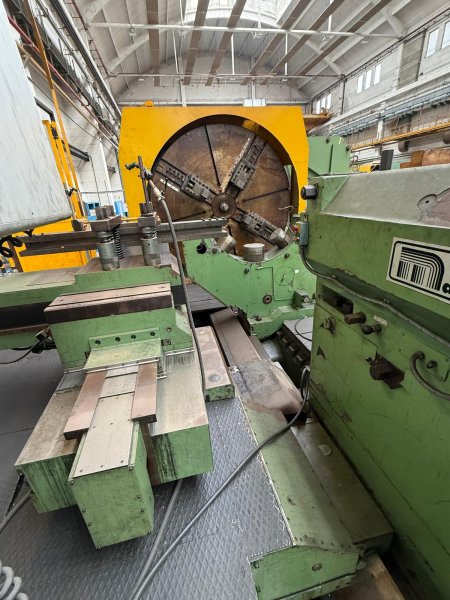

- CNC upper carriage (2 axes + tilt)

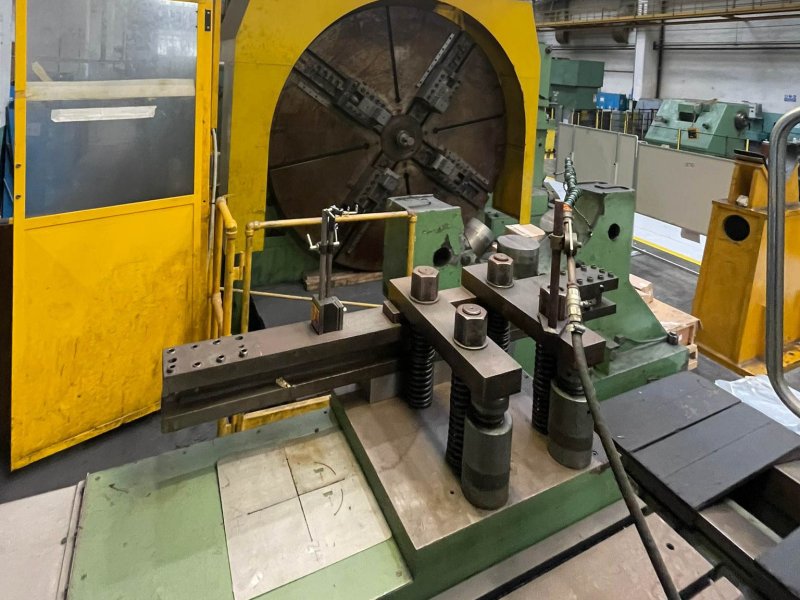

- 2 open rests, Ø 150 ÷ 700 mm and Ø 650 ÷ 1,250 mm.
- 2 "C" rests
