GRAZIANO SAG 210N
- Condition: used
- published: 20/11/2025
- 25IND48142
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description

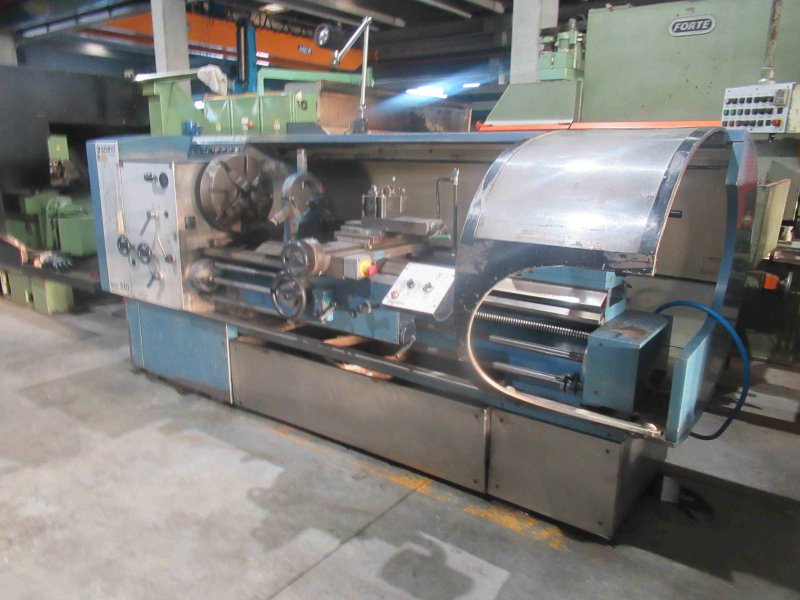

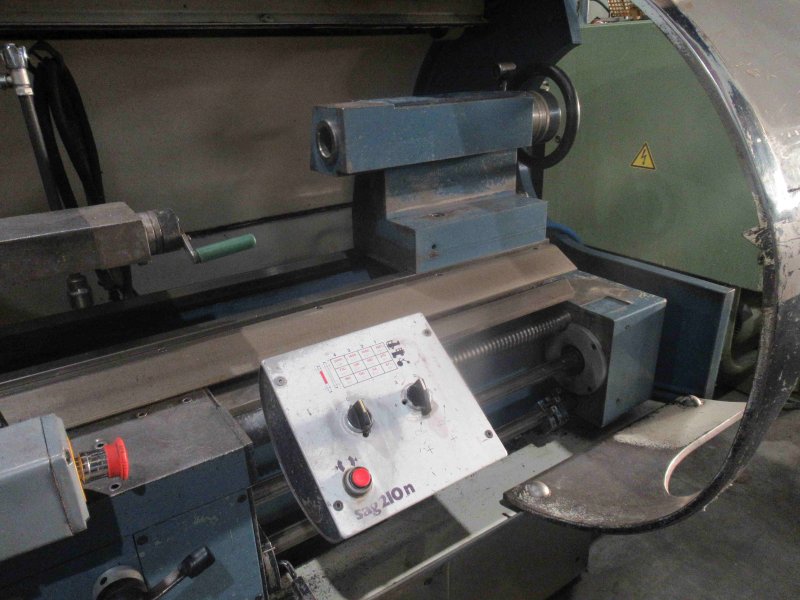

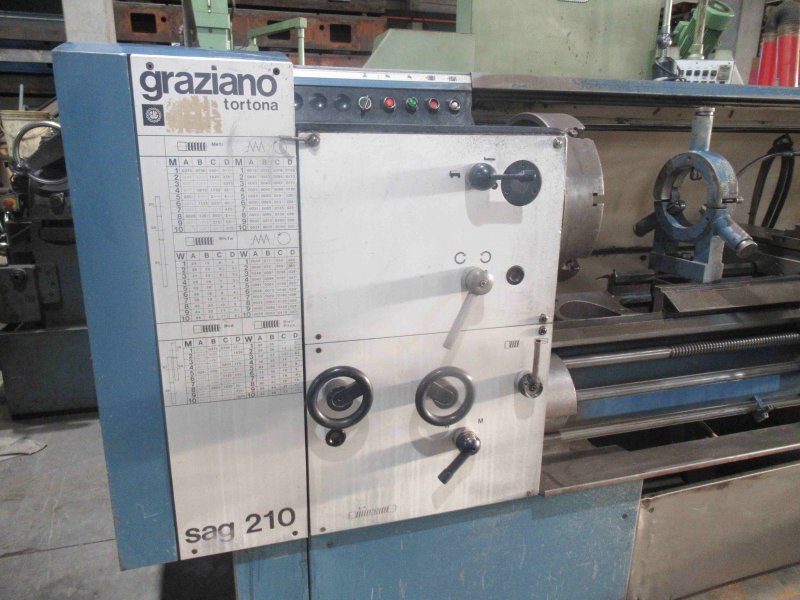

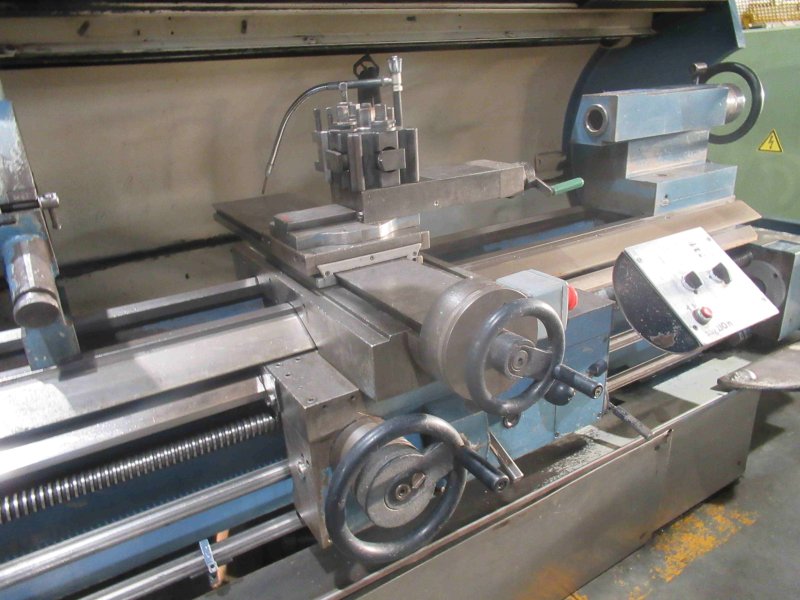

GRAZIANO SAG 210N x 1500 PARALLEL LATHE
Height of centers 210 mm.
Distance between centers 1,500 mm.
Turning diameter over bed 420 mm.
Turning diameter over slide 268 mm.
Turning diameter in throat 58 ...
GRAZIANO SAG 210N x 1500 PARALLEL LATHE
Height of centers 210 mm.
Distance between centers 1,500 mm.
Turning diameter over bed 420 mm.
Turning diameter over slide 268 mm.
Turning diameter in throat 580 mm.
Throat length 316 mm.
Bed width 330 mm.
Spindle motor power 10 hp.
Spindle rotation speed - N 24; 38 - 2,000 rpm
Spindle bore Ø 57 mm.
Total weight 2,450 kg.
Complete with:

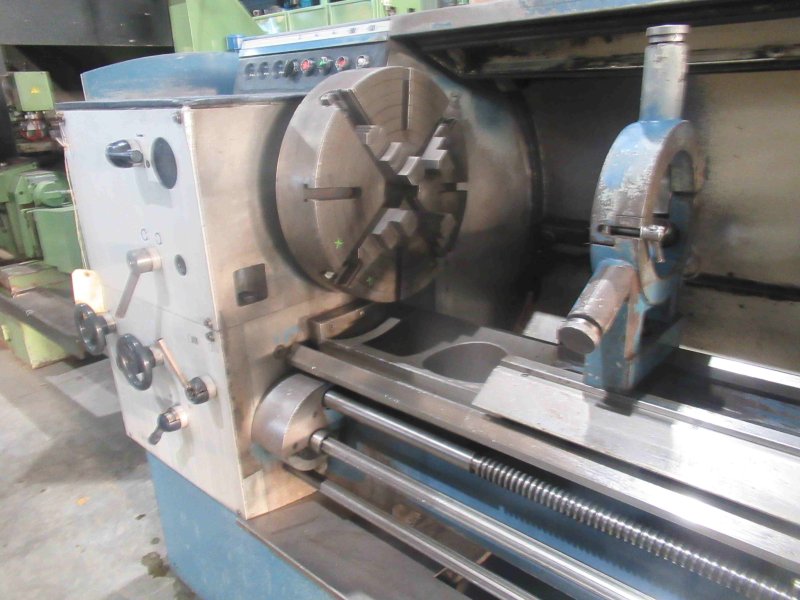

- 1 four-jaw chuck Ø 400 mm.
- 1 1 closed bezel
- safety guards
