GRAZIANO sag 22 1981
- Condition: used
- published: 24/11/2025
- 25IND48177
Technical data
- Condition: used
- Year: 1981
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description

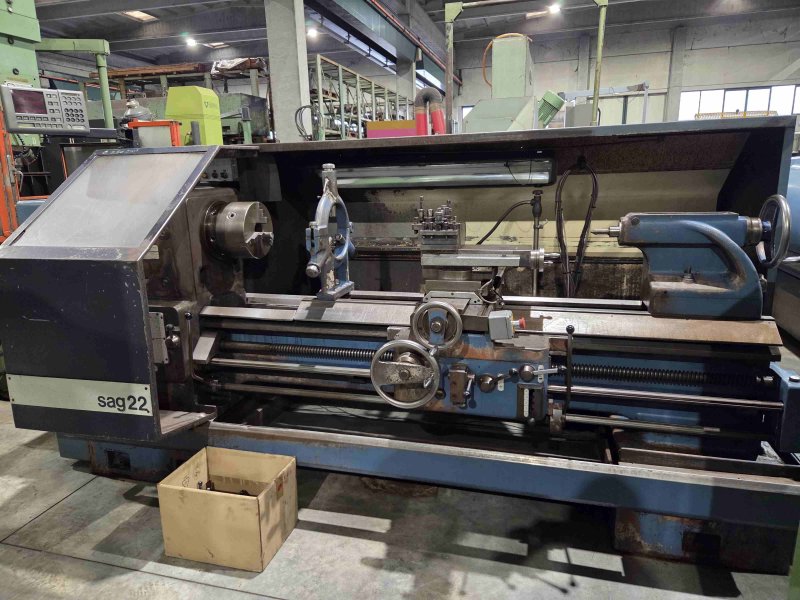

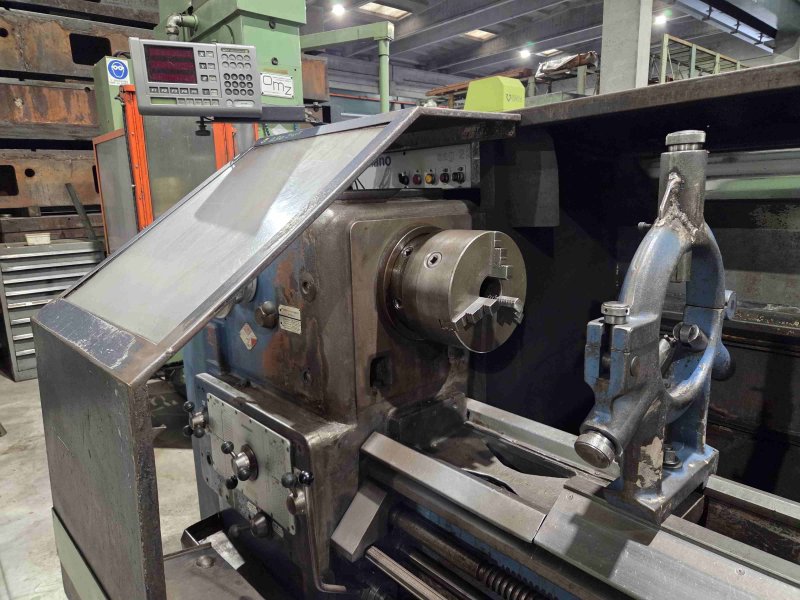

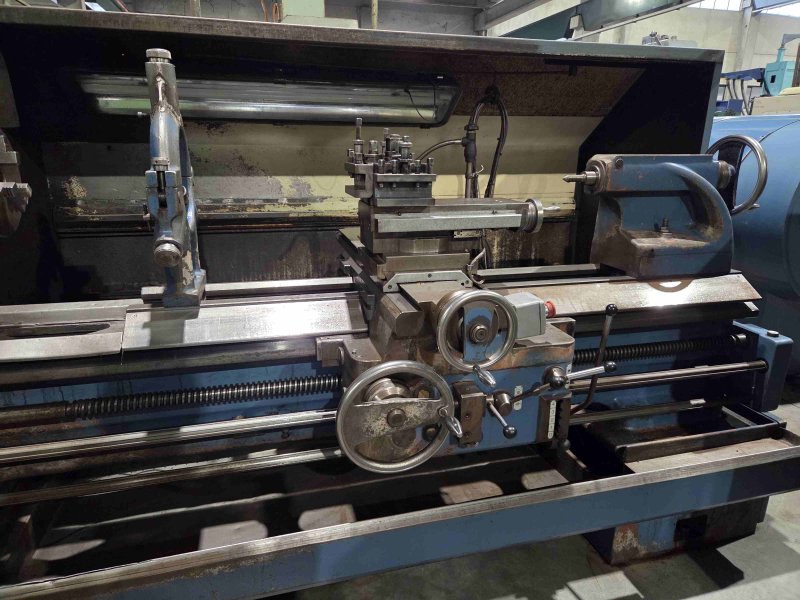

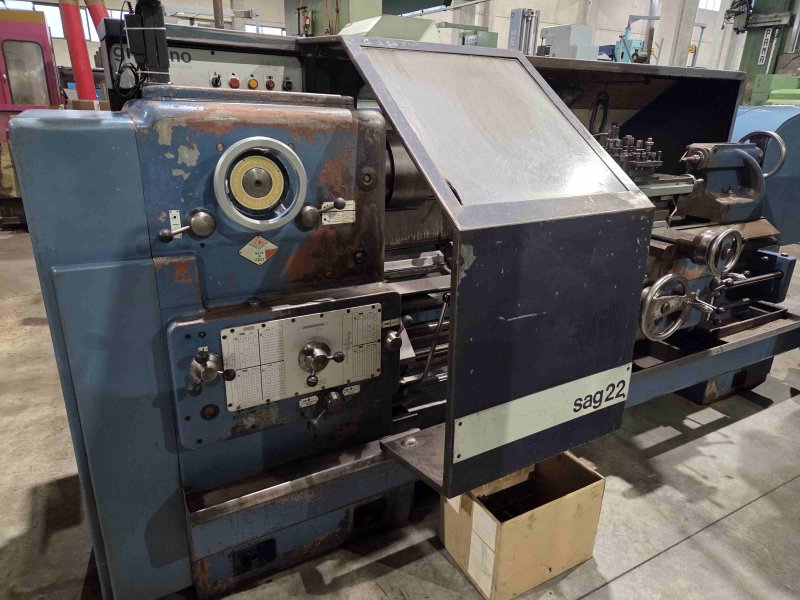

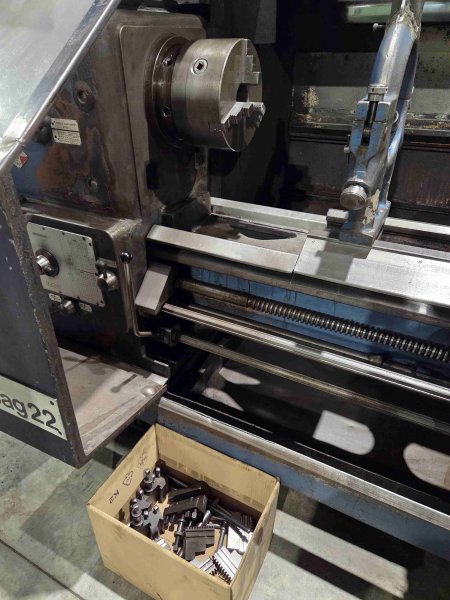

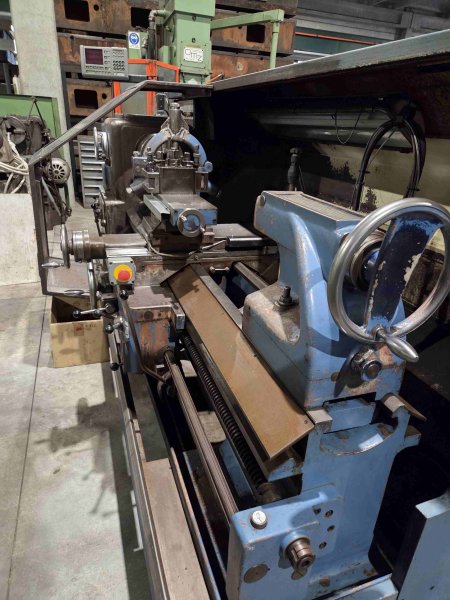

GRAZIANO SAG 22 PARALLEL LATHE
Height of centers: 280 mm.
Distance between centers: 1,500 mm.
Max. diameter on the bed: 564 mm.
Max. diameter on the slide: 377 mm.
Max. diameter in the pocket: 760 mm. ...
GRAZIANO SAG 22 PARALLEL LATHE
Height of centers: 280 mm.
Distance between centers: 1,500 mm.
Max. diameter on the bed: 564 mm.
Max. diameter on the slide: 377 mm.
Max. diameter in the pocket: 760 mm.
Pit length: 395 mm.
Bed width: 360 mm.
Spindle motor power: 15 hp.
Spindle speed: No. 12; 30 - 1,500 rpm.
Spindle bore: 85 mm.
Year of construction: 1981
Complete with:
- Display
- 1 chuck, Ø 250 mm
- 1 closed steady rest
- Safety guards
