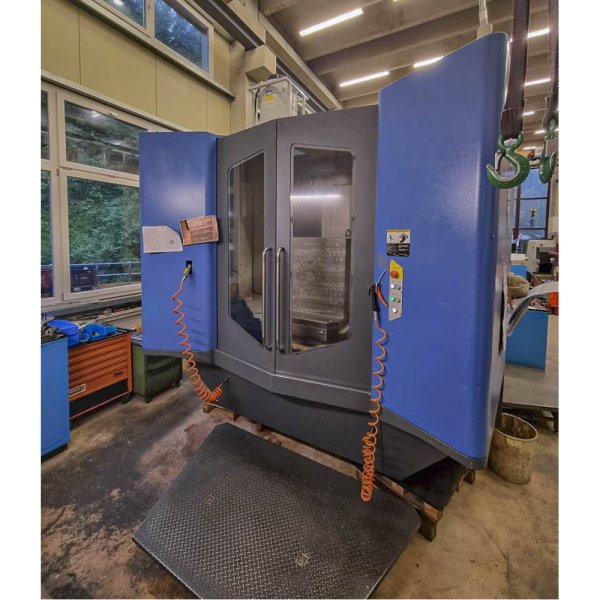

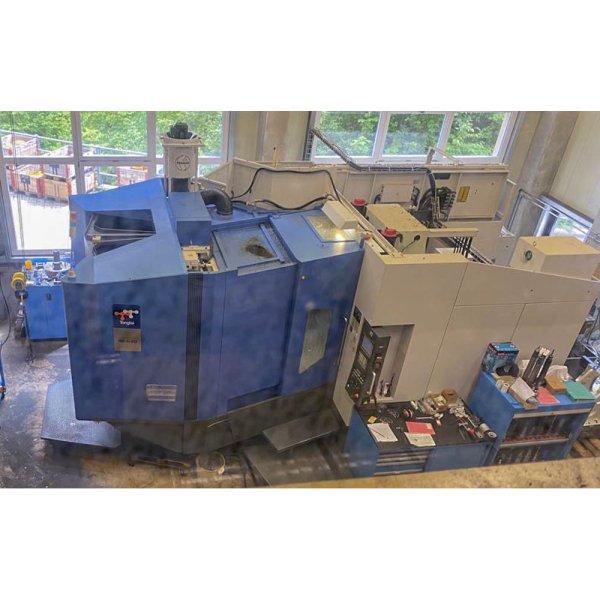

TONGTAI HB-630II 2014
- Condition: used
- published: 25/11/2025
- 25IND48180
Technical data
- Condition: used
- Year: 2014
Description

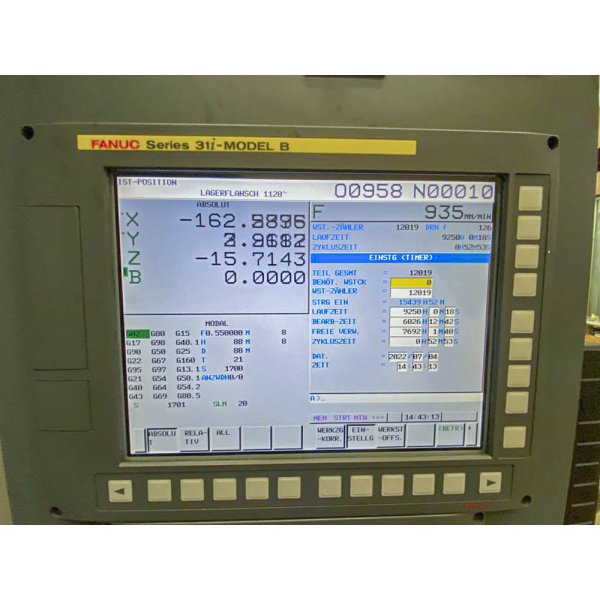

Numerical Control: FANUC 31i-B
Axes
X-axis travel mm: 1050
Y-axis travel mm: 850
Z-axis travel mm: 970
B-axis angle: 0.001°
Distance between table surface and spindle nose mm: 100-950
Working Area
Wo ...
Numerical Control: FANUC 31i-B
Axes
X-axis travel mm: 1050
Y-axis travel mm: 850
Z-axis travel mm: 970
B-axis angle: 0.001°
Distance between table surface and spindle nose mm: 100-950
Working Area
Working Area: 2
Table size mm: 630x630
Maximum workpiece size mm: ø1,100x1,100
Maximum workpiece weight kg: 1,200
Pallet change time (APC) s: 15.5

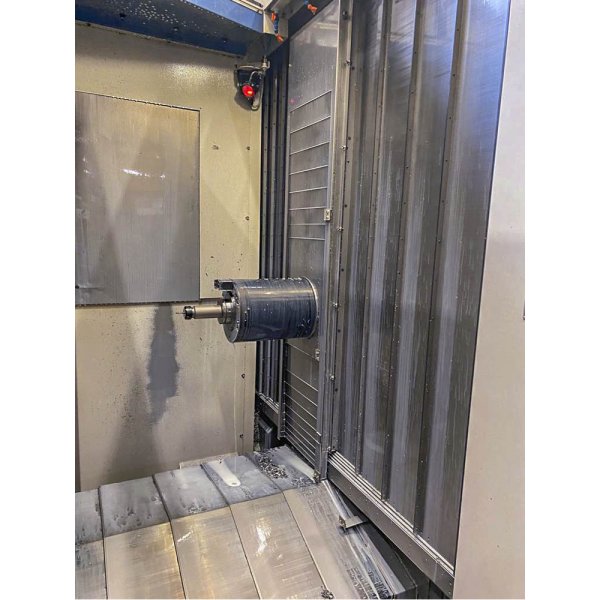

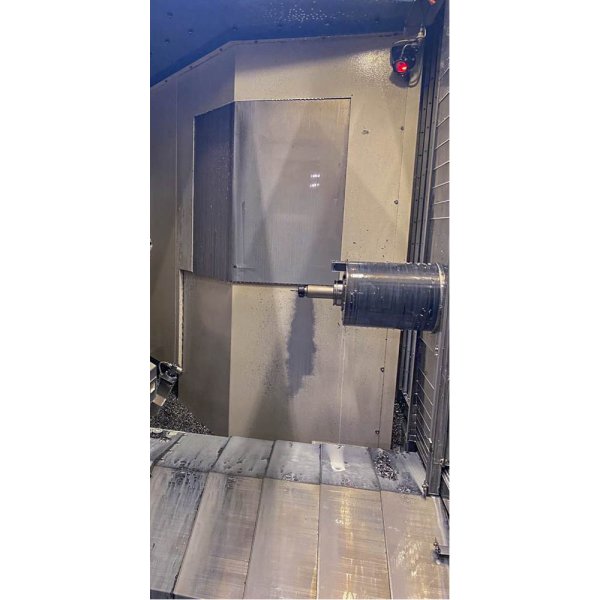

Spindle
Spindle rotation speed rpm: 10,000
Spindle power kW: 30 (25% ED)
Maximum torque Nm: 420 (25% ED)
Tool magazine
Tool holder: HSK-A100
Tool magazine positions: 90
Maximum tool diameter (mm): ø250
Maximum tool length (mm): 550
Tool change time (s): 2.4
Tool change time, chip-to-chip (s): 4.5
Equipment
Electronic handwheel
Chip conveyor
Wash gun
Status indicator light
High-pressure pump
Oil mist filter
4th axis
RS-232 interface
Internal coolant supply
3D Renishaw tool probe

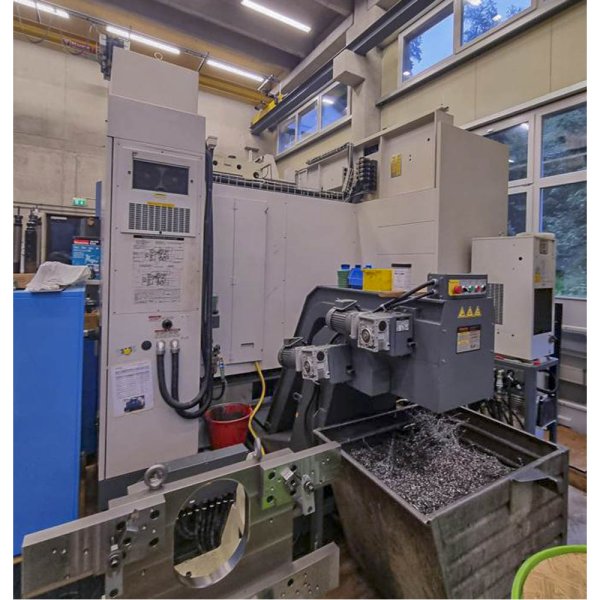

4x pallets
Toolholders are not included
Working time
Working spindle: 6026
Main machine dimensions / weight
Length (mm): 3510
Width (mm): 7484
Height (mm): 3325
Weight (kg): 21600
