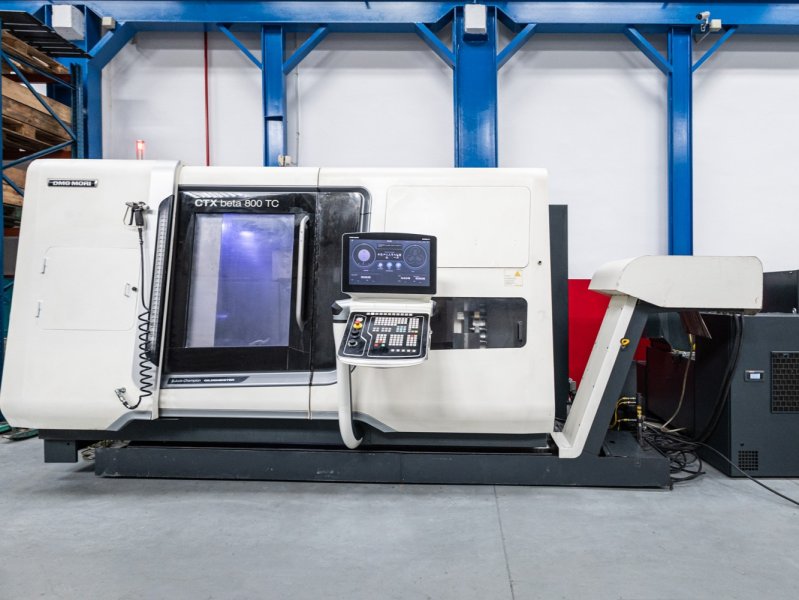

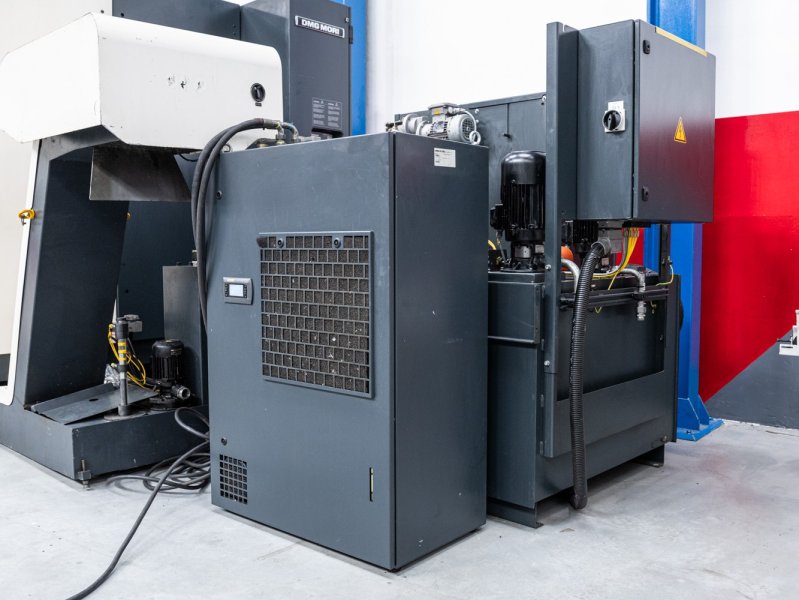

DMG MORI CTX BETA 800 2015
- Condition: used
- published: 25/11/2025
- 25IND48183
Technical data
- Condition: used
- Year: 2015
- X-axis travel: 0/1000 mm
Description

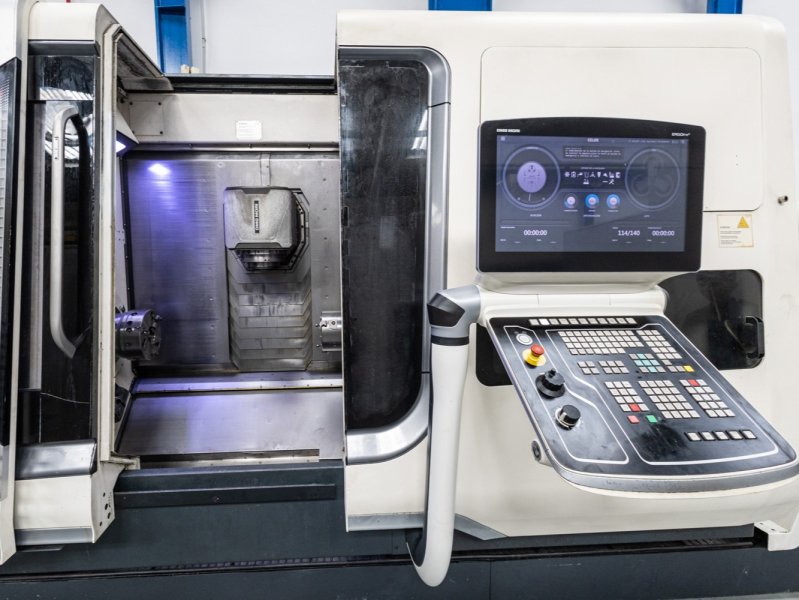

Numerical control: Siemens 840D sl with CELOS ERGOline
Capacity
X-axis travel mm: 480 (–10)
Y-axis travel mm: ±100
Z-axis travel mm: 845
B-axis travel mm: ±110° (0.001°)
C-axis: 360° (0.001°)
...
Numerical control: Siemens 840D sl with CELOS ERGOline
Capacity
X-axis travel mm: 480 (–10)
Y-axis travel mm: ±100
Z-axis travel mm: 845
B-axis travel mm: ±110° (0.001°)
C-axis: 360° (0.001°)
Turning length mm: 800
Swing diameter mm: ø: 500
Distance between spindle centers mm: 1,020

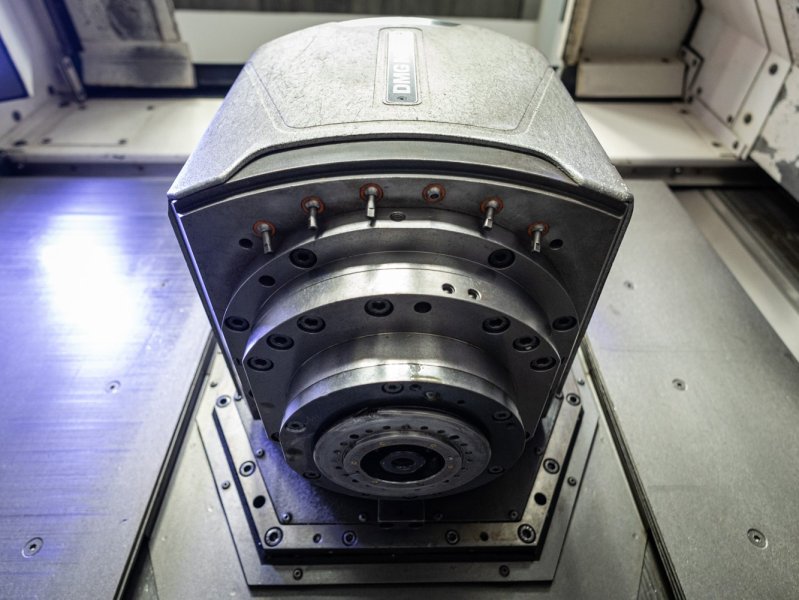

Turning-milling spindle
Spindle rotation speed rpm: 12,000
Spindle power kW: 22 / 19

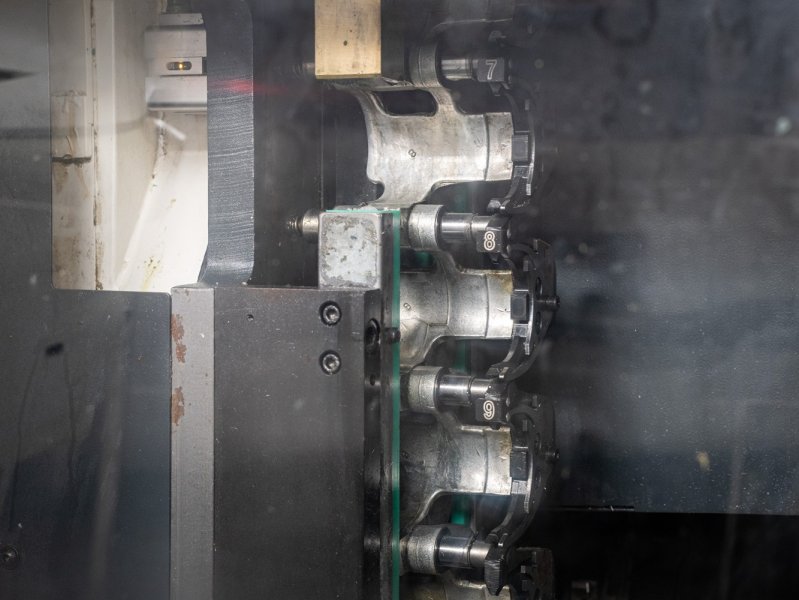

Tool magazine
Number of positions: 24
Tool holder type: HSK-A63
Maximum tool length mm: 300
Maximum diameter Tool diameter mm: 125
Maximum tool weight kg: 7

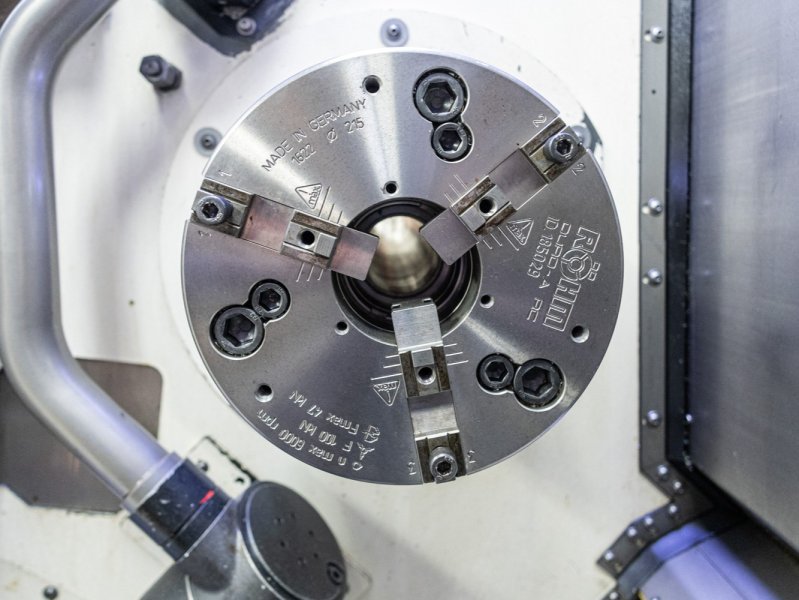

Main spindle
Spindle rotation speed rpm: 5,000
Spindle power kW: 25 / 34 (100 / 40%)
Bar passage mm: ø: 67
Maximum torque Nm: 380 / 280

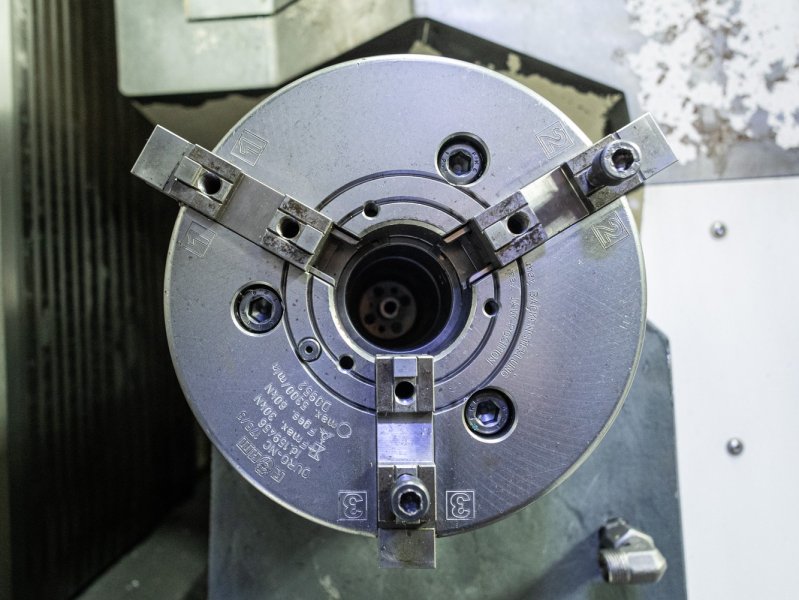

Counter spindle
Spindle rotation speed rpm: 6,000
Spindle power kW: 20 / 27 (100% / 40%)
Bar passage (??): 52
Maximum torque Nm: 170
Counter spindle stroke mm: 800
Lubricant/coolant system
Tank capacity liters: 600 L
High pressure bar: 8 / 20
Equipment
Chip conveyor
Air flow through the spindle activated by M function
Status indicator light
Tool Presetter, Tool Control Arm
Work Area Lamp
Cooling Gun
Internal Coolant Supply
Bar Feeder Interface
Paper Belt Filter
Working Time
Powered: 36,049
Cutting Time: 14,171
Main Machine Dimensions / Weight
Length mm: 2,890
Width mm: 5,193
Height mm: 2,247
Weight kg: 7,800
