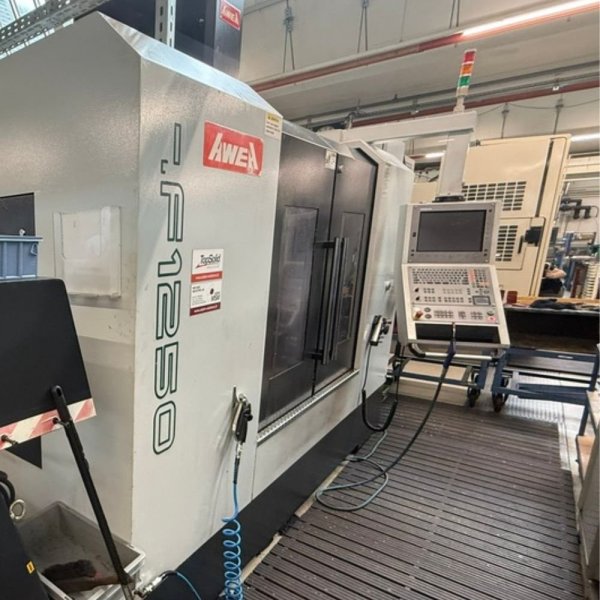

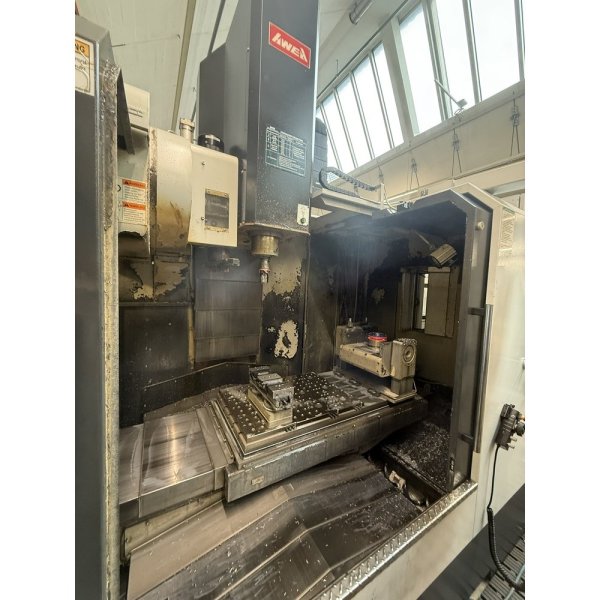

AWEA AF 1250 2012
- Condition: used
- published: 25/11/2025
- 25IND48184
Technical data
- Condition: used
- Year: 2012
- X-axis travel: 1001/2000 mm
Description

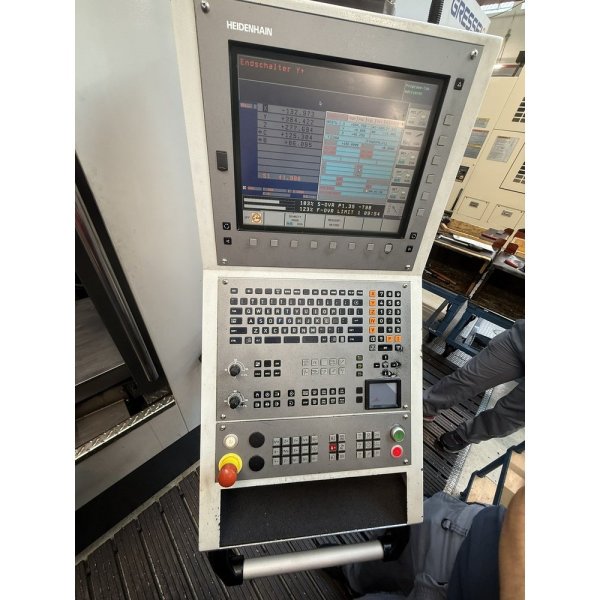

Numerical control: Heidenhain iTCN530
Axes
X-axis travel mm: 1,250
Y-axis travel mm: 620
Z-axis travel mm: 620
C-axis angle: 360º (0.001º)
B-axis angle: ±115º (0.001º)
Work area
Table size mm: 1, ...
Numerical control: Heidenhain iTCN530
Axes
X-axis travel mm: 1,250
Y-axis travel mm: 620
Z-axis travel mm: 620
C-axis angle: 360º (0.001º)
B-axis angle: ±115º (0.001º)
Work area
Table size mm: 1,350 x 620
Maximum workpiece weight kg: 1,000
Spindle
Spindle rotation speed rpm: 15,000
Spindle power kW: 22 / 17
Maximum torque Nm: 387 / 466
Tool magazine
Tool holder: SK 40
Tool magazine positions: 60
Maximum tool diameter mm: 150
Maximum tool length mm: 220
Maximum tool weight: 7 kg
Tool change time: 3 s
Equipment

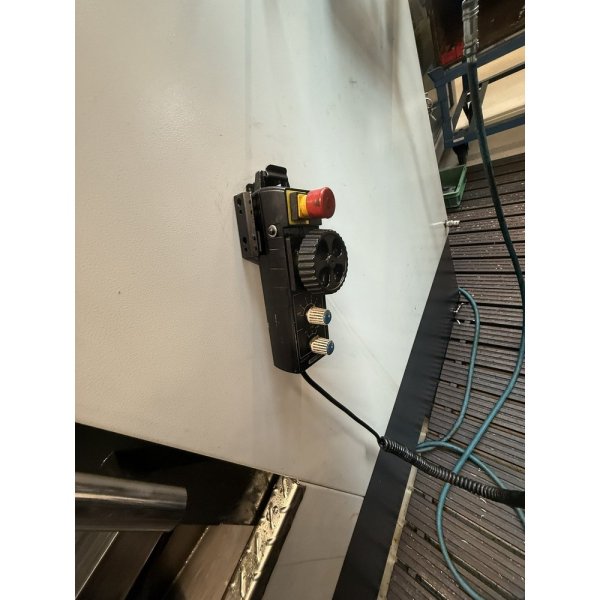

Electronic handwheel
Status indicator light
Tool integrity monitor

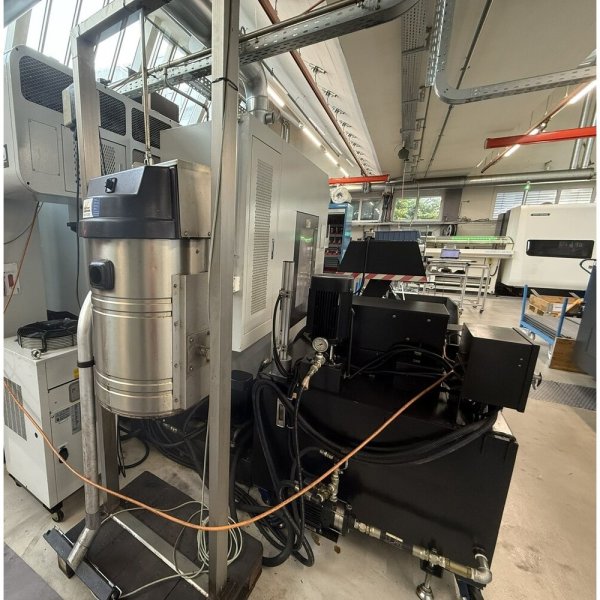

Paper belt filter
Chip conveyor with built-in scraper

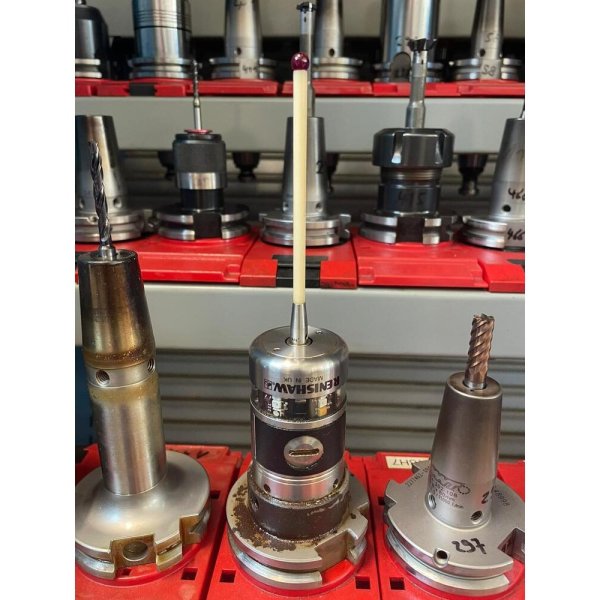

RENISHAW OMP 40-2

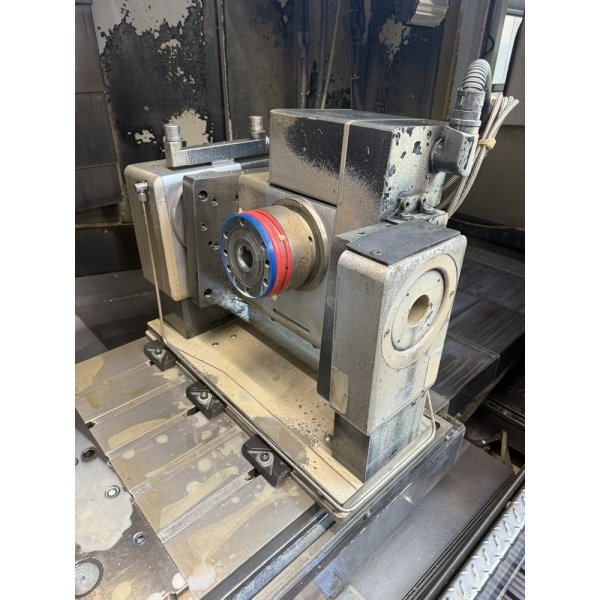

4th and 5th axis Lehmann (ø400 x 40 mm x 40 kg)

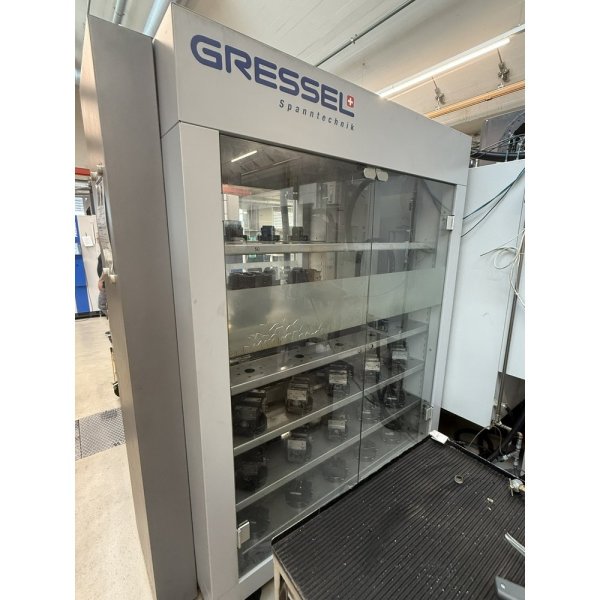

54-pallet storage gressel cabin (ø340 x 348 mm x 89 kg)
Coolant
Tank capacity: 340 L
High pressure: 20 bar
Working time
Powered: 75,294
Operating time: 33,525
Main machine dimensions / weight
Weight: 8,000 kg
