LARIO S-4A 2025
- Condition: new
- published: 03/12/2025
- 25IND48239
Technical data
- Condition: new
- Year: 2025
- X-axis travel: 0/4000 mm
Description

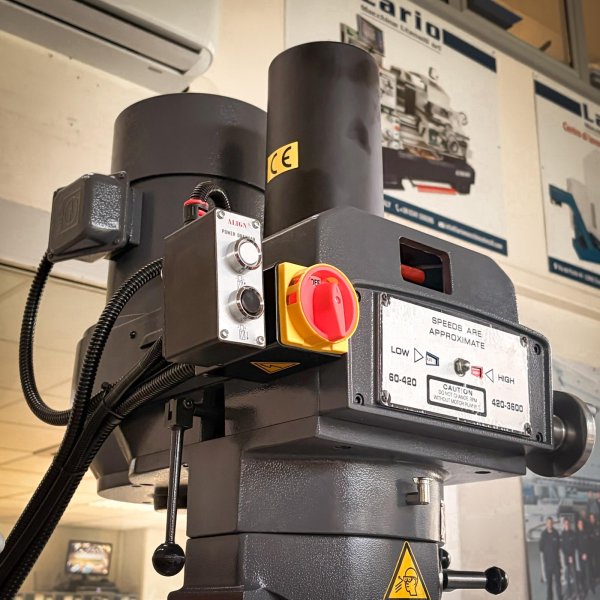

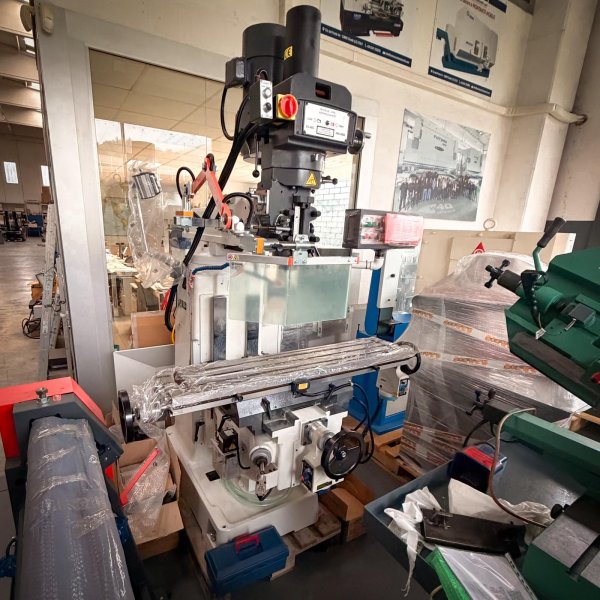

LARIO S-4A HIGH-SPEED VERTICAL MILLING MACHINE
MAIN FEATURES:
COUNTRY OF ORIGIN: TAIWAN
TABLE DIMENSIONS: 254 x 1270 mm
LONGITUDINAL X-AXIS TRAVEL: 700 mm
TRANSVERSAL Y-AXIS TRAVEL: 430 mm
VERTICAL ...
LARIO S-4A HIGH-SPEED VERTICAL MILLING MACHINE
MAIN FEATURES:
COUNTRY OF ORIGIN: TAIWAN
TABLE DIMENSIONS: 254 x 1270 mm
LONGITUDINAL X-AXIS TRAVEL: 700 mm
TRANSVERSAL Y-AXIS TRAVEL: 430 mm
VERTICAL Z-AXIS TRAVEL: 460 mm
SPINDLE MOUNT: ISO 40
SPINDLE ROTATION SPEED: 60-3600 rpm
QUILLE DIAMETER: 105 mm
QUILLE STROKE: 150 mm
MAX. PERMISSIBLE WEIGHT ON THE TABLE: 350 kg
MOTOR POWER: 5 hp
APPROXIMATE WEIGHT: 1500 kg
DIMENSIONS: 2300 x 1900 x 2450 mm
Complete with:
Cooling system

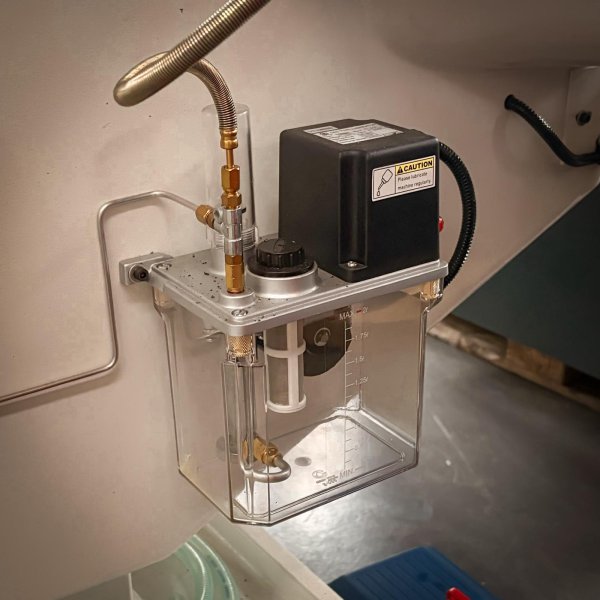

Lubrication system
Chip tray
LED light

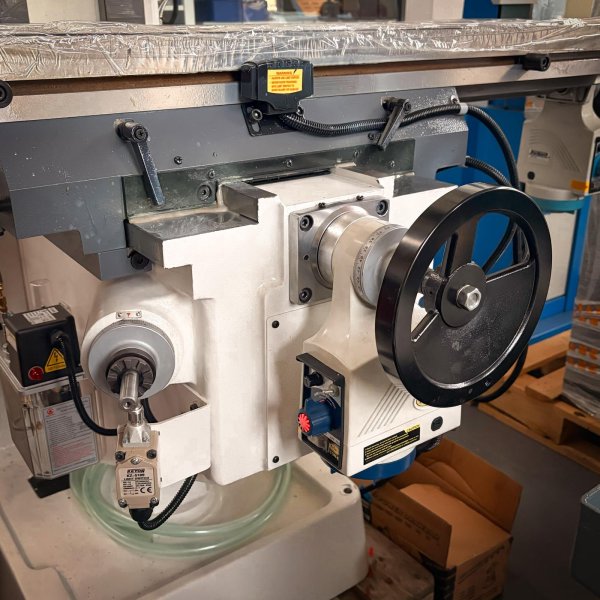

X and Y-axis movement with ball screws
3-axis readout
Instruction manual and
CE certification
Working
Under warranty
CE compliant
