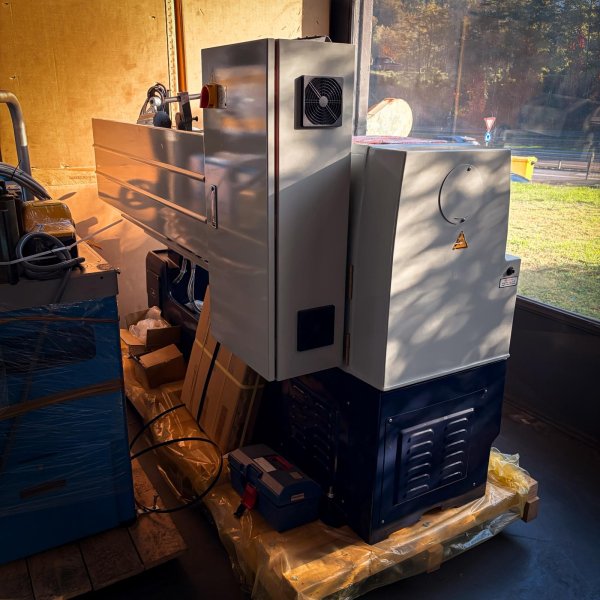

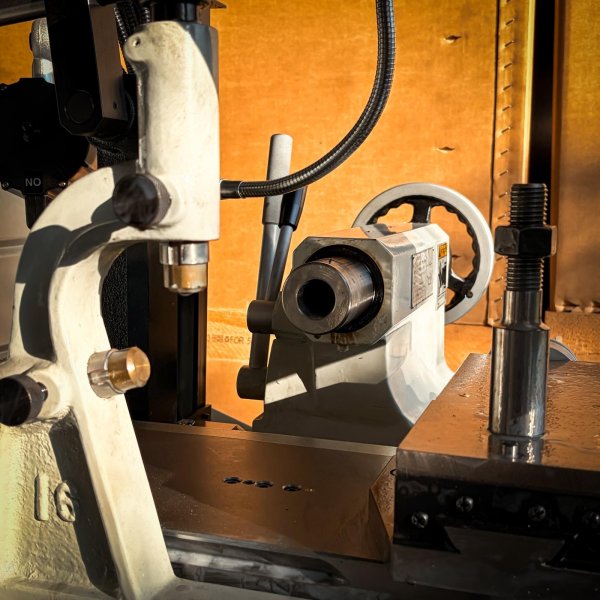

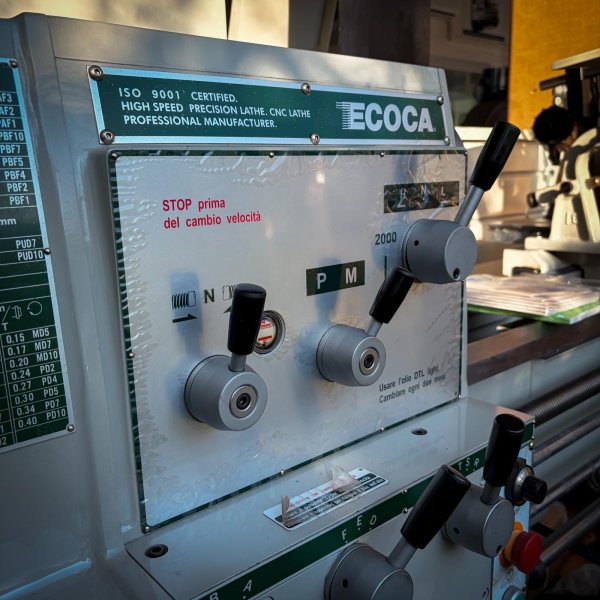

ECOCA SJ 410 X 1000 V 2025
- Condition: new
- published: 03/12/2025
- 25IND48248
Technical data
- Condition: new
- Year: 2025
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description
ECOCA PARALLEL LATHE mod. SJ410x1000V
MAIN FEATURES:
COUNTRY OF ORIGIN: TAIWAN
CENTRE HEIGHT: 205 mm
TURNING DIAMETER OVER BED: 410 mm
TURNING DIAMETER OVER CARRIAGE: 222 mm
TURNING DIAMETER OVER RE ...
ECOCA PARALLEL LATHE mod. SJ410x1000V
MAIN FEATURES:
COUNTRY OF ORIGIN: TAIWAN
CENTRE HEIGHT: 205 mm
TURNING DIAMETER OVER BED: 410 mm
TURNING DIAMETER OVER CARRIAGE: 222 mm
TURNING DIAMETER OVER RECESS: 620 mm
DISTANCE BETWEEN CENTERS: 1016 mm
DISTANCE BETWEEN BED GUIDES: 300 mm
SPINDLE BORE DIAMETER: 58 mm
SPINDLE CONNECTION TYPE: CAMLOCK 6

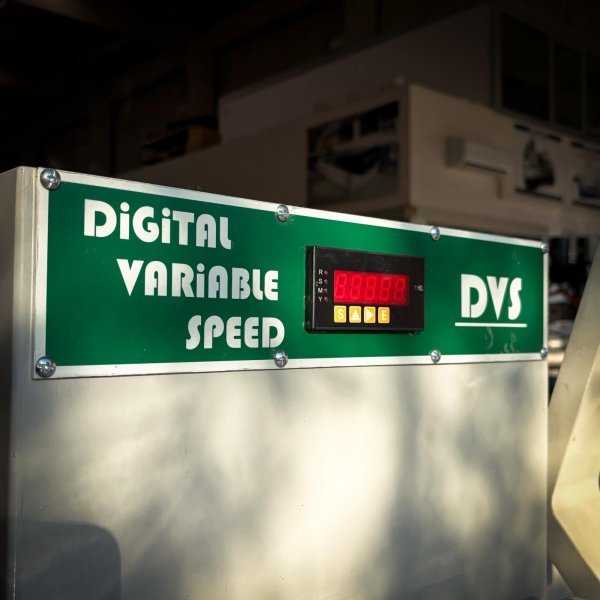

SPINDLE SPEED RANGES: 20 - 2000 RPM
NUMBER OF SPEEDS: 12
CROSS CARRIAGE STROKE: 250 mm
CARRIAGE STROKE: 125 mm
THREAD INCHES: 4 - 56 T.P.I.
METRIC THREAD: P0.5 - P.7
LONGITUDINAL FEED: 0.05 - 0.82 mm
TRANSVERSAL FEED: 0.02 - 0.4 mm
MAIN MOTOR: 5 hp
COOLING PUMP MOTOR: 0.125 hp (1 kW)
TAILSTOCK SLEEVE CONNECTION: CM4
TAILSTOCK SLEEVE STROKE: 127 mm
TAILSTOCK DIAMETER: 62 mm
DIMENSIONS: 2160 x 810 x 1217 mm
WEIGHT: 1600 kg
Lathe complete with:
Self-centering chuck
FAGOR 3-axis digital readout
Tool turret

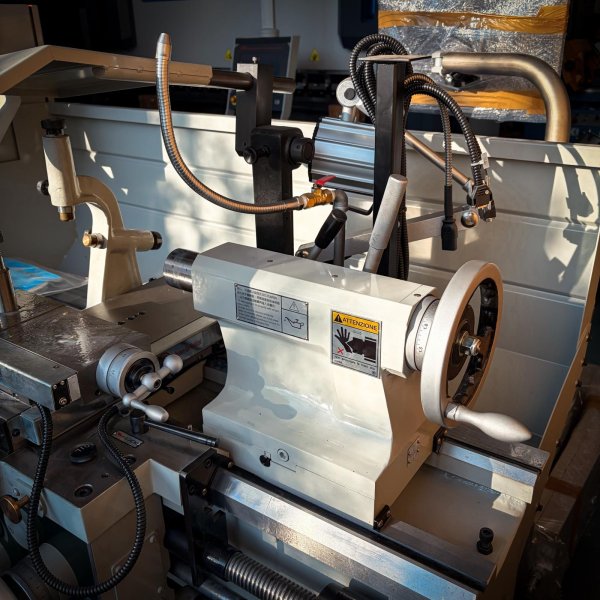

Tailstock
Steady rest (bronze tip)
Shield Spindle
Turret guard
Rear guard
Lamp
Instruction manual and CE certification.
Working
Under warranty
CE compliant
