MORANDO KL 12 CNC 2001
- Condition: used
- published: 08/04/2026
- 25IND48305
Technical data
- Condition: used
- Year: 2001
- Max working diameter : 1001/2000 mm
- Max working height : 0/1000 mm
Description

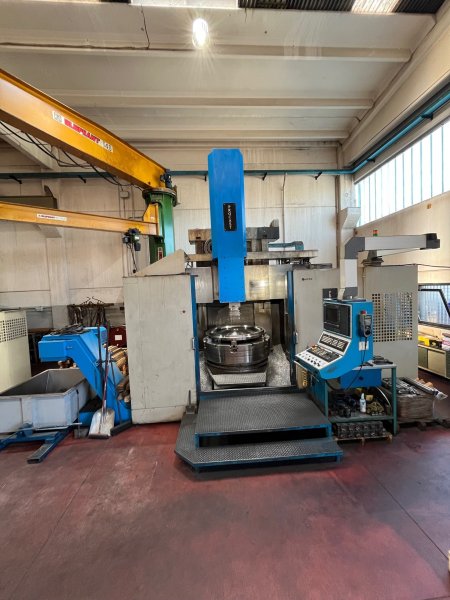

MORANDO KL 12 CNC VERTICAL LATHE

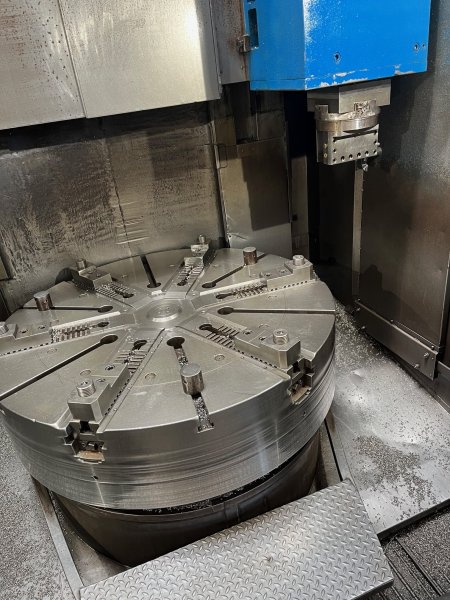

Hydraulic chuck diameter 1,400 mm
Maximum turning diameter 1,400 mm
Maximum turning height 1,000 mm
Clearance under crossbeam 1,100 mm
Table load capacity 8,000 k ...
MORANDO KL 12 CNC VERTICAL LATHE
Hydraulic chuck diameter 1,400 mm
Maximum turning diameter 1,400 mm
Maximum turning height 1,000 mm
Clearance under crossbeam 1,100 mm
Table load capacity 8,000 kg

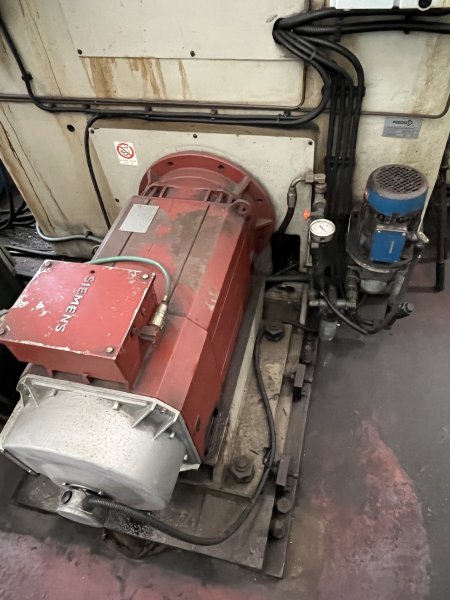

Table motor power 42 kW
Table rotation speed 2 ÷ 250 rpm
1 vertical ram slide:
- ram vertical travel 900 mm
- ram cross-section 230 x 230 mm

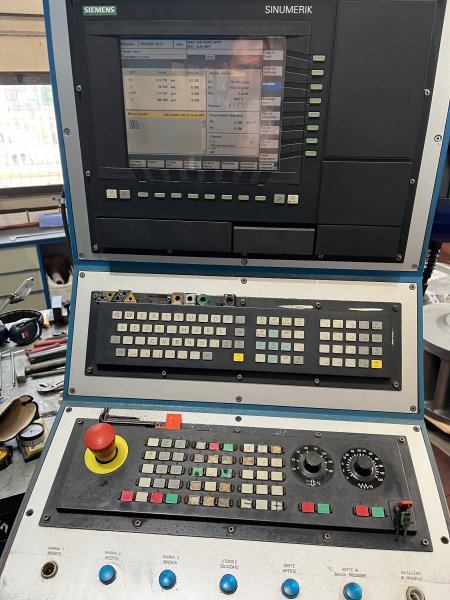

Siemens 840 D CNC
Total weight 18 tons
Overhauled in 2001
Complete with:

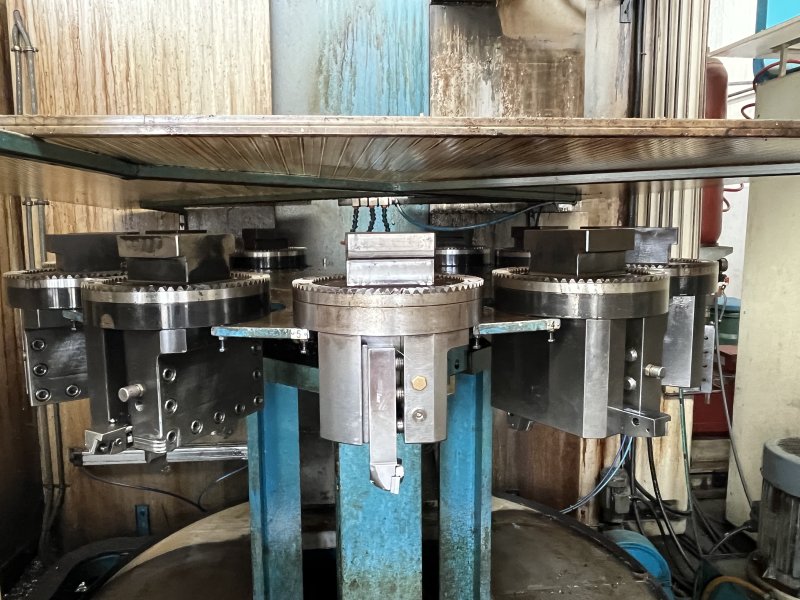

- 12-position tool magazine
- Various tool holders
- Chip conveyor
- Fairing
