SAFOP leonard 1500 1971
- Condition: used
- published: 04/02/2026
- 25IND48312
Technical data
- Condition: used
- Year: 1971
Description

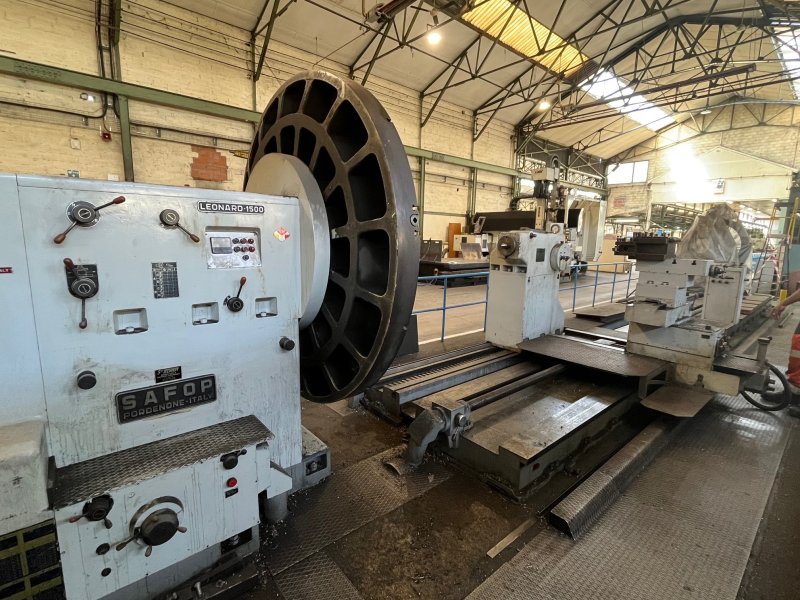

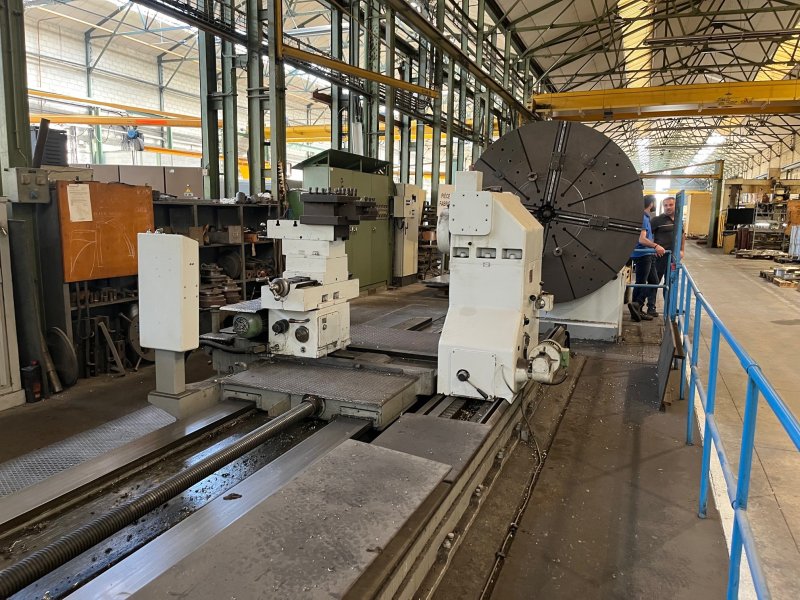

SAFOP LEONARD 1500 PARALLEL LATHE
Height between centers: 1,450 mm.
Distance between centers: 10,000 mm.
Maximum turning diameter over guides: 2,200 mm.
Maximum turning diameter over the carriage: 2,0 ...
SAFOP LEONARD 1500 PARALLEL LATHE
Height between centers: 1,450 mm.
Distance between centers: 10,000 mm.
Maximum turning diameter over guides: 2,200 mm.
Maximum turning diameter over the carriage: 2,000 mm.

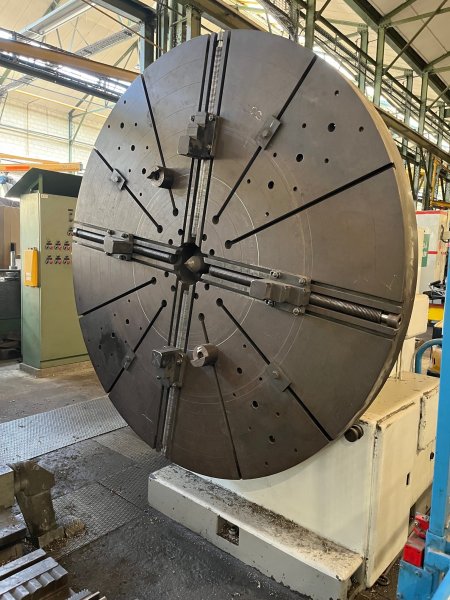

Platform diameter: 2,100 mm.
Load capacity between centers: 15,000 kg.
Cantilevered load capacity: 4,000 kg.
Lower carriage longitudinal travel: 10,000 mm.

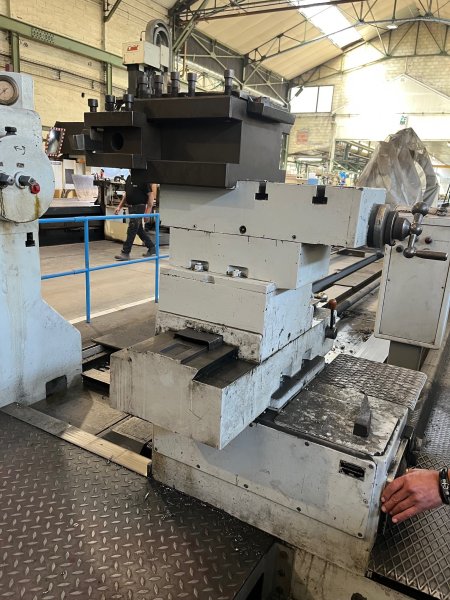

Intermediate carriage transverse travel: 1,000 mm.
Upper carriage travel: 500 mm.
Spindle motor power: 30 hp.
Spindle speed: No. 24; 1 - 100 rpm.
Year of construction: 1971
Complete with:

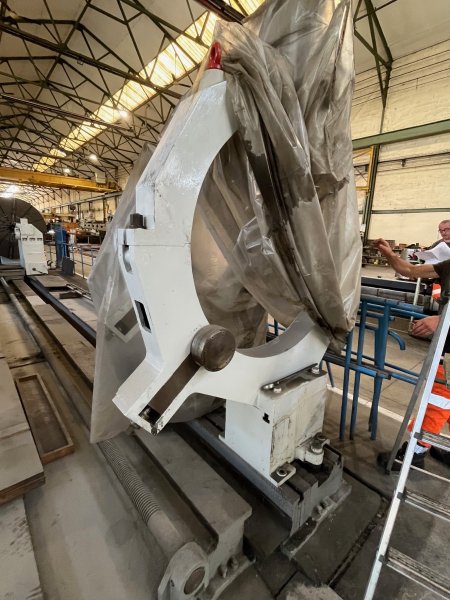

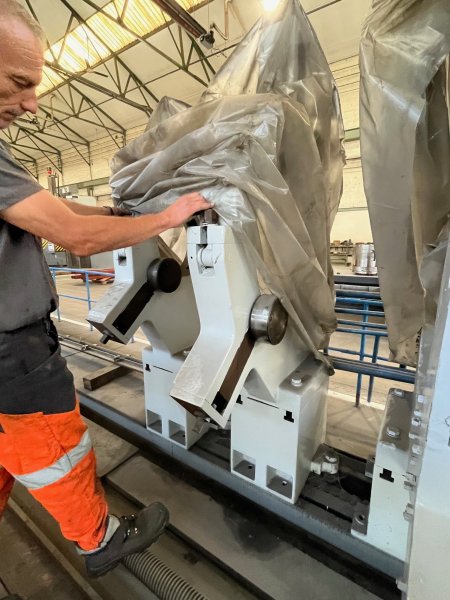

- 3 closed lunettes
