COLGAR PROGRAM 213 TR 9 CNC 2005
- Condition: used
- published: 19/01/2026
- 26IND48426
Technical data
- Condition: used
- Year: 2005
- Mandrel diameter: 101/130 mm
- X-axis travel: > 2000 mm
- Y-axis stroke: 1001/2000 mm
Description

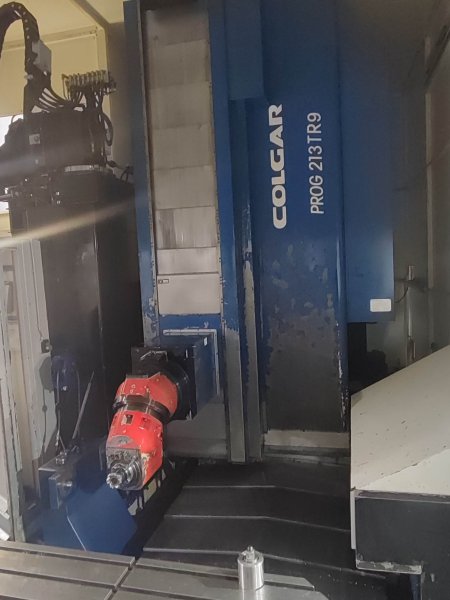

COLGAR PROGRAM 213 TR 9 CNC T-SHAPED BORING MACHINE
Table cross travel (X) 3,500 mm.
Head vertical travel (Y) 2,000 mm.
Column longitudinal travel (W) 2,000 mm.
Spindle travel (Z) 700 mm.
Table 1,600 ...
COLGAR PROGRAM 213 TR 9 CNC T-SHAPED BORING MACHINE
Table cross travel (X) 3,500 mm.
Head vertical travel (Y) 2,000 mm.
Column longitudinal travel (W) 2,000 mm.
Spindle travel (Z) 700 mm.

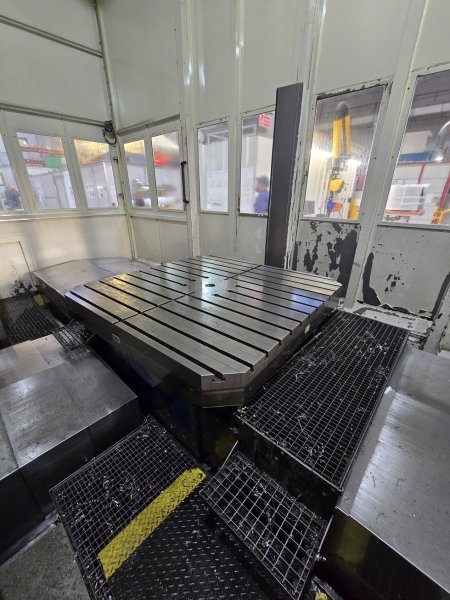

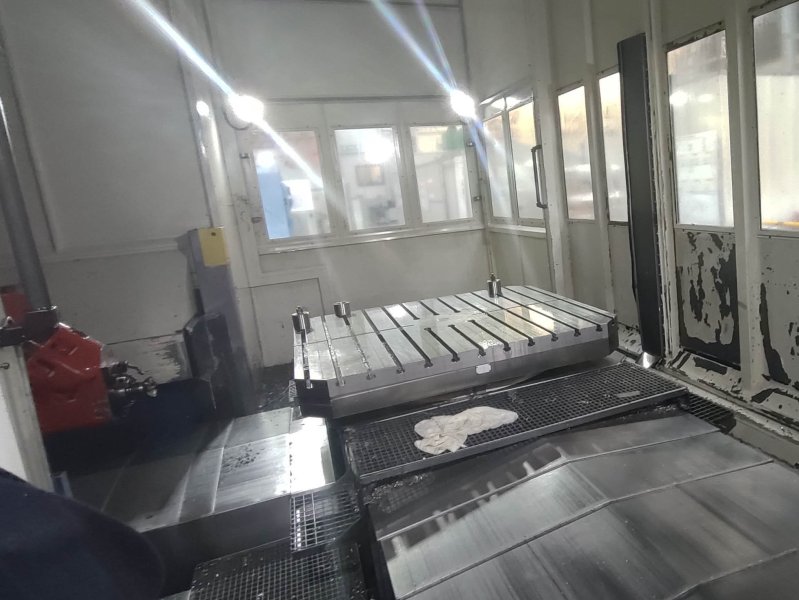

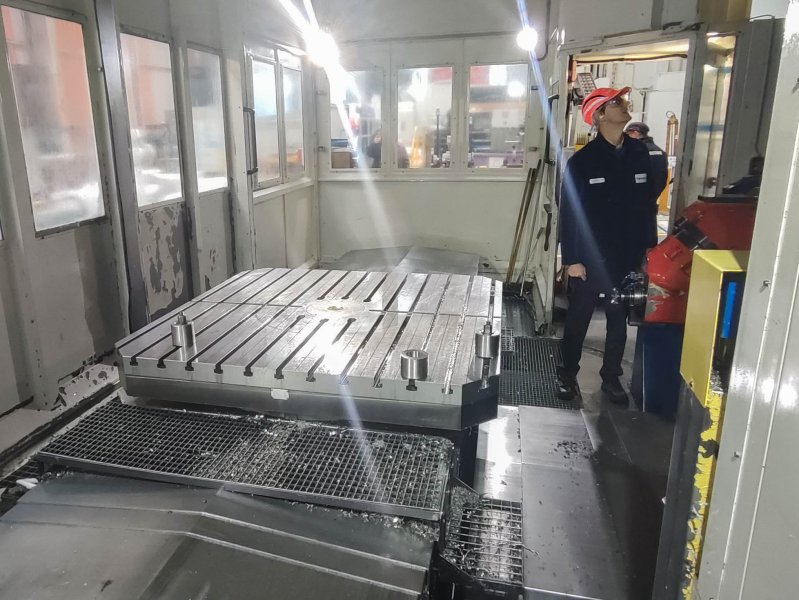

Table 1,600 x 1,600 mm.
Table load capacity 10 tons.
Spindle diameter 130 mm.
Spindle taper ISO 50
Spindle motor power 41 kW.
Spindle speed 4 ÷ 4,000 rpm.

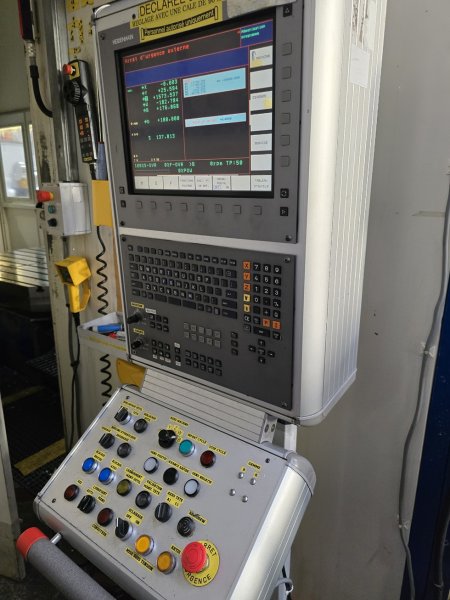

Heidenhain TNC 530 CNC - 5 axes
Year of construction 2005
Complete with:

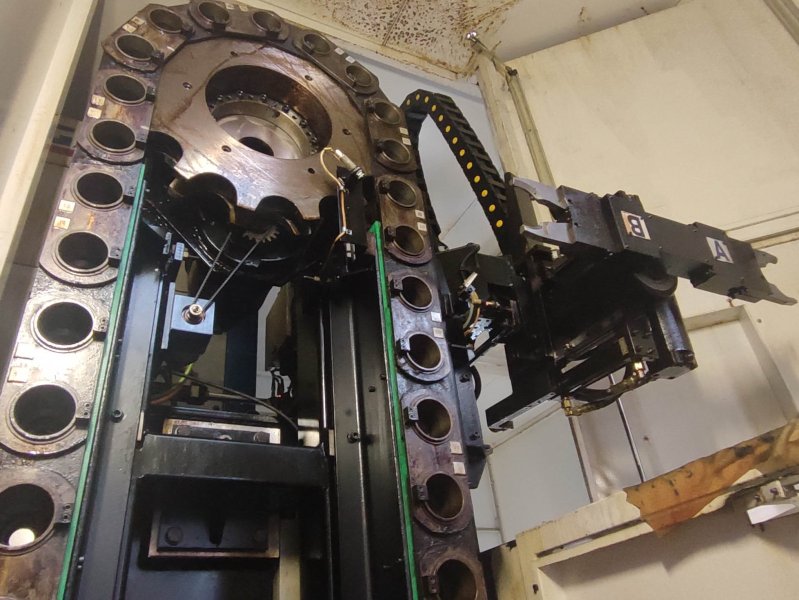

- 50-station tool magazine

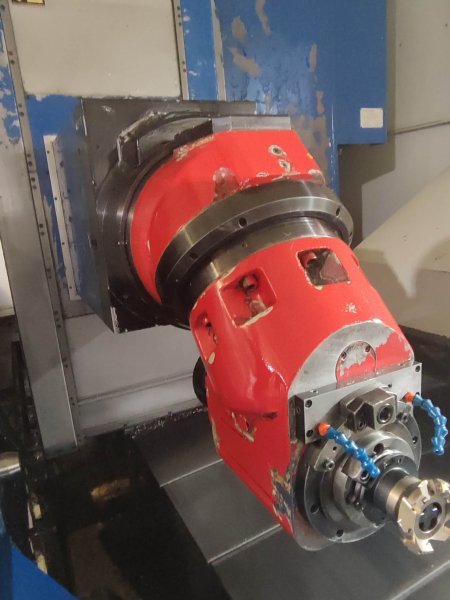

- n. 1 universal indexed head: A-axis 1°, B-axis 1°
- 3-station automatic head changer
- Chip conveyor
- Through-spindle coolant
